Steering Column: Overhaul
When overhauling steering columns, refer to exploded view illustrations. See Fig 1
-Fig 6
.

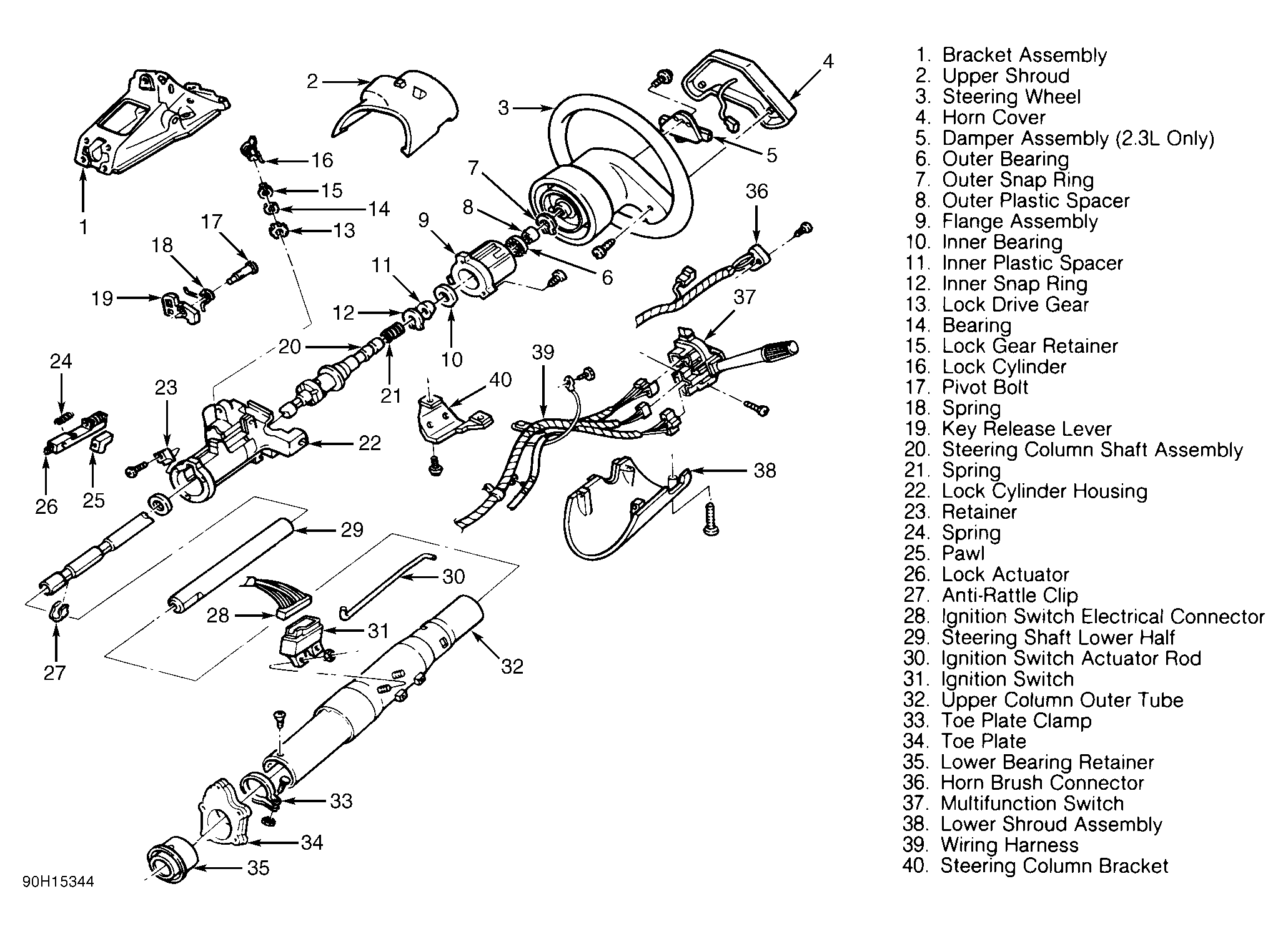

Fig 1: Exploded View of Standard Steering Column (Aerostar)
Courtesy of FORD MOTOR CO.

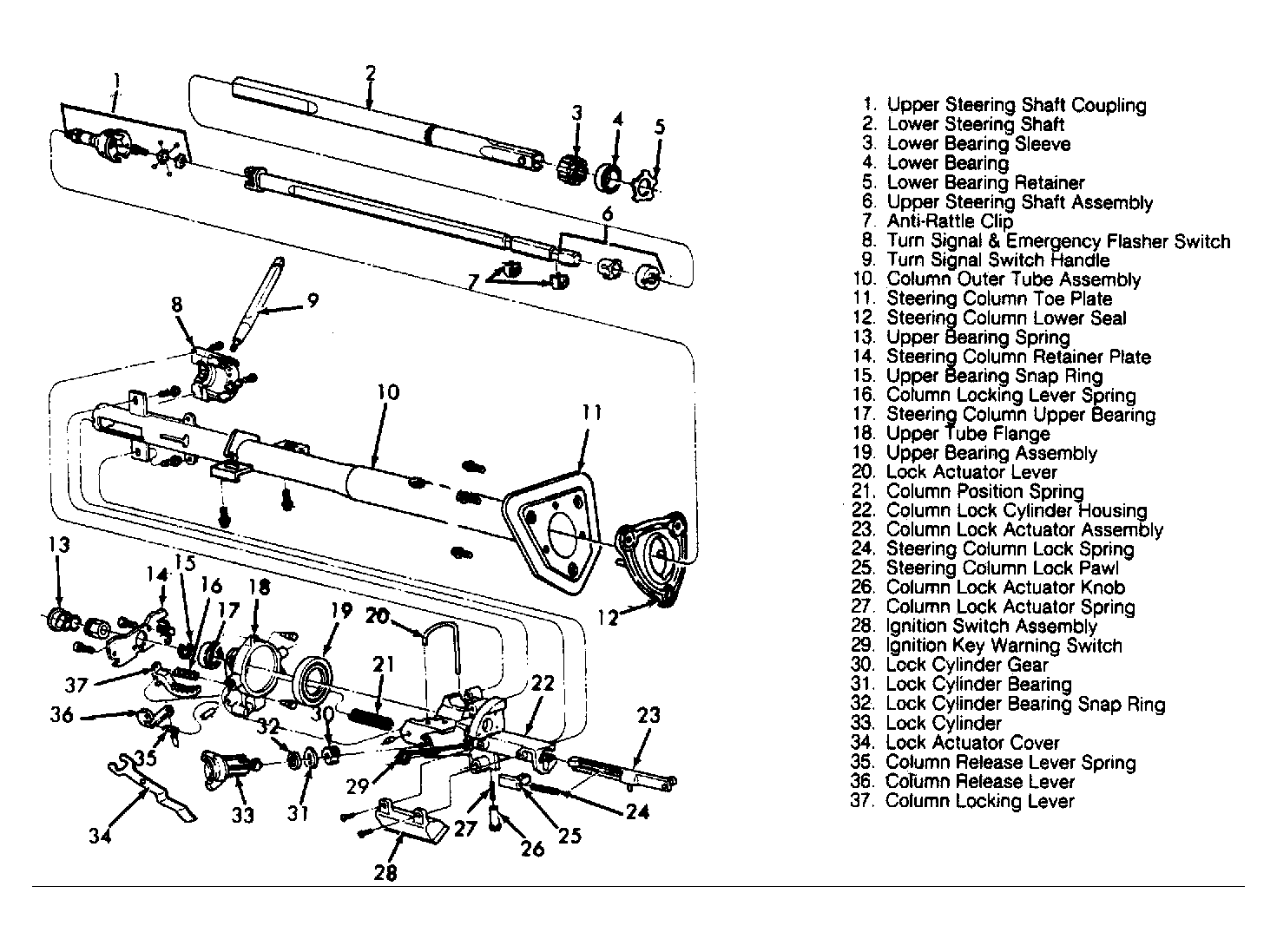

Fig 2: Exploded View of Tilt Steering Column (Aerostar)
Courtesy of FORD MOTOR CO.

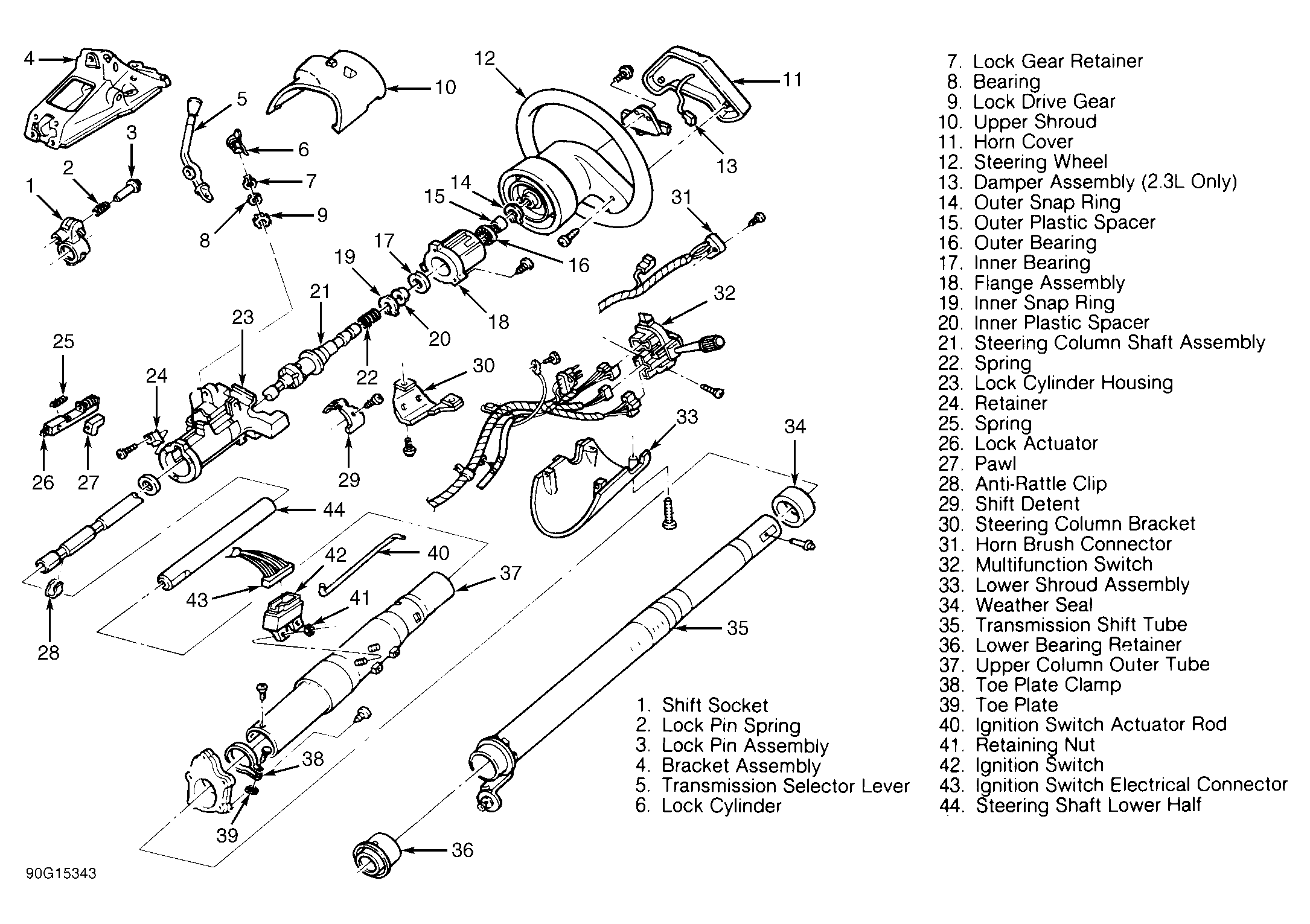

Fig 3: View of Standard Steering Column (Bronco II & Ranger - With A/T)
Courtesy of FORD MOTOR CO.

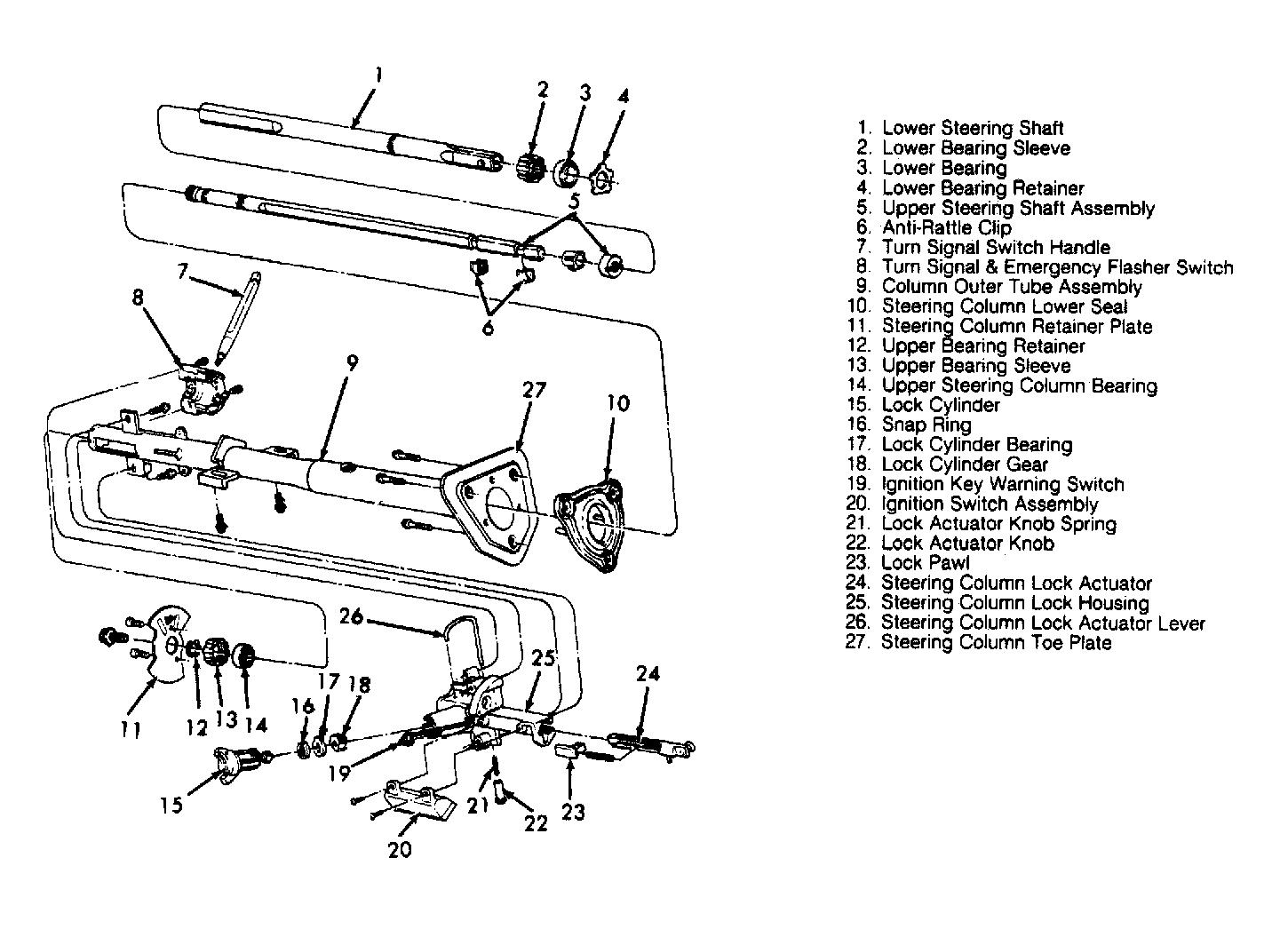

Fig 4: View of Standard Steering Column (Bronco II & Ranger - With M/T)
Courtesy of FORD MOTOR CO.

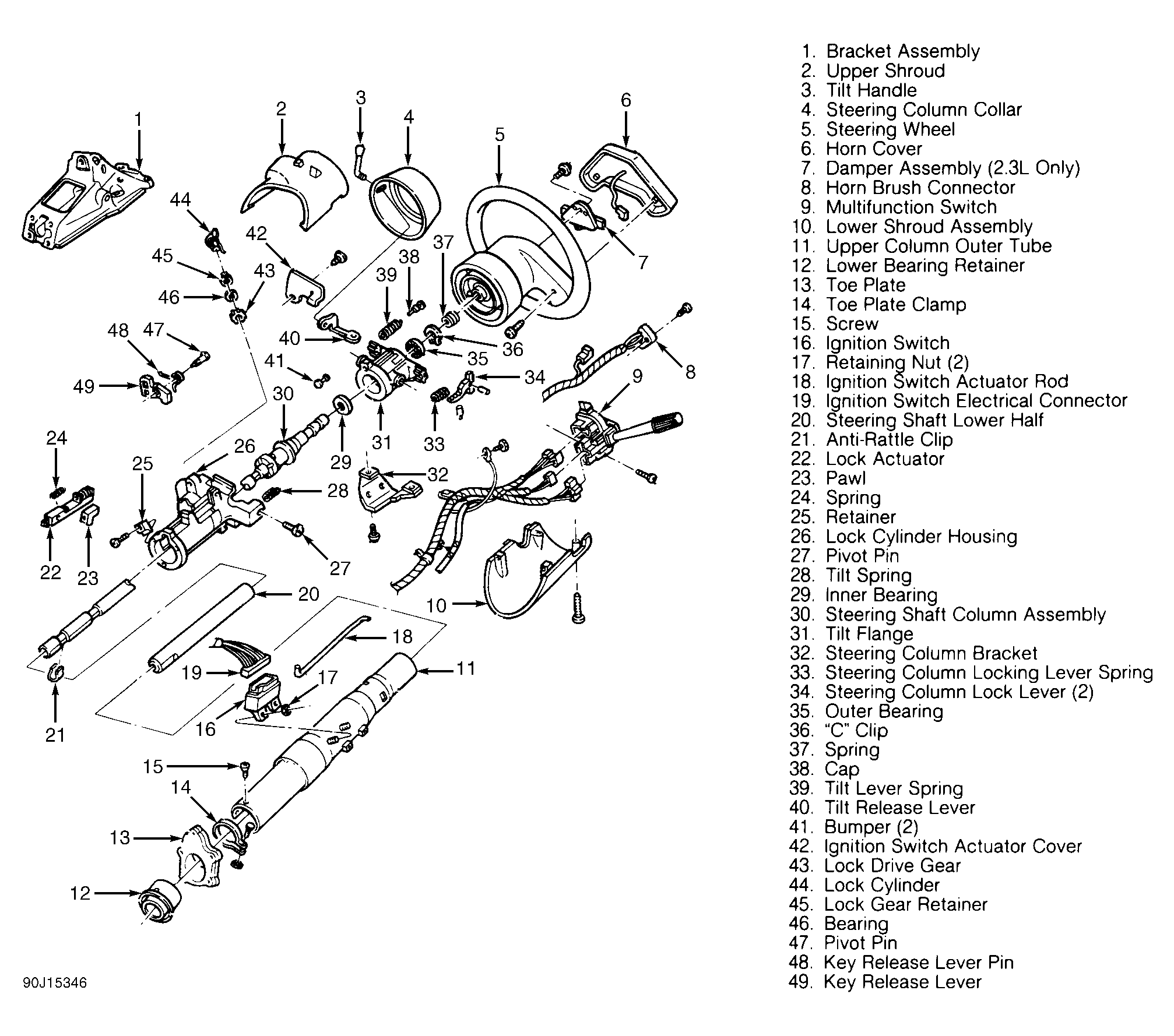

Fig 5: Exploded View of Tilt Steering Column (Bronco II & Ranger - With A/T)
Courtesy of FORD MOTOR CO.

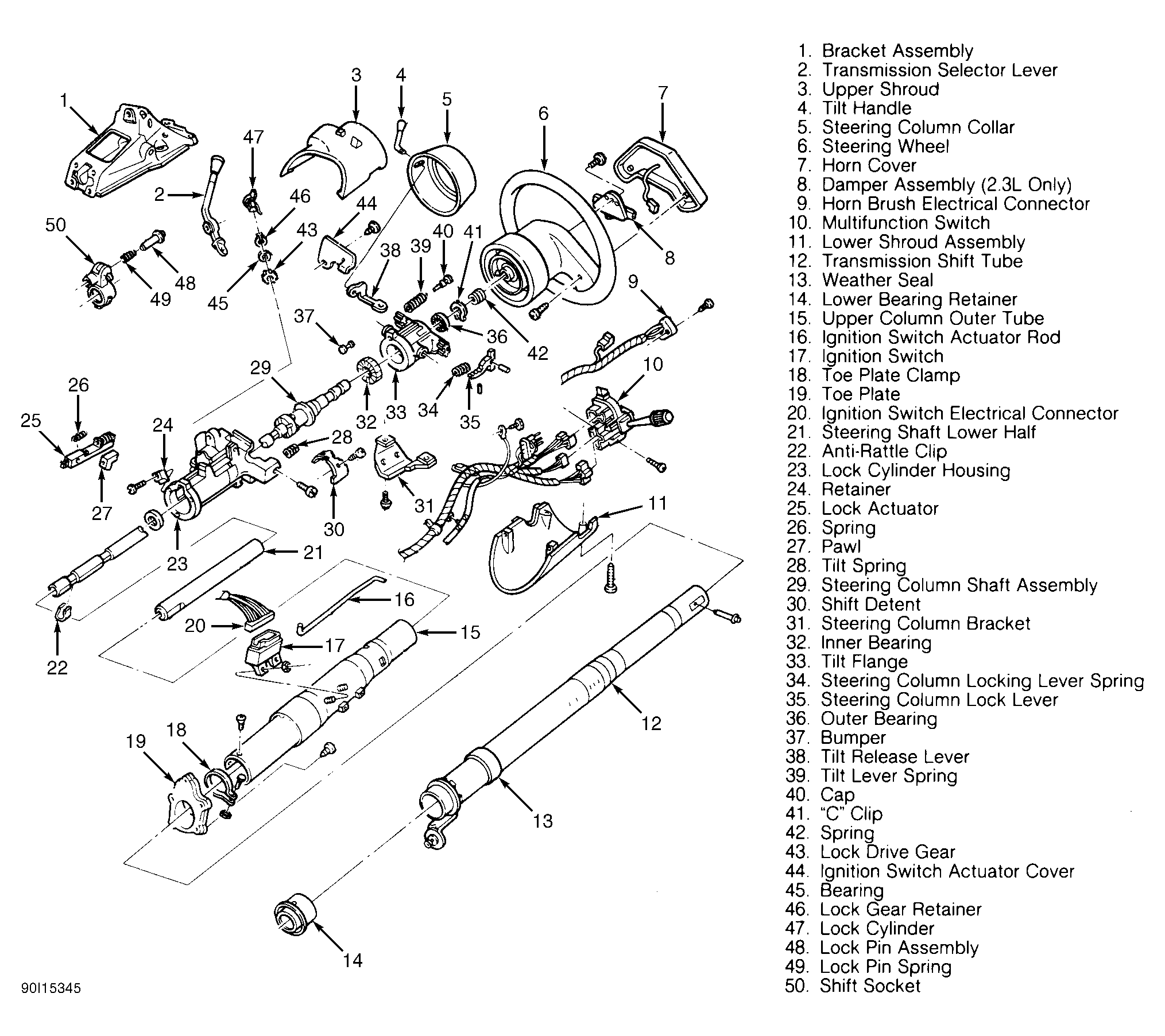

Fig 6: Exploded View of Tilt Steering Column (Bronco II & Ranger - With M/T)
