Input Shell: Reassembly

To reassemble, reverse disassembly procedure. Install reverse sun gear into input shell with lube hole in sun gear between stand-off pads on shell.

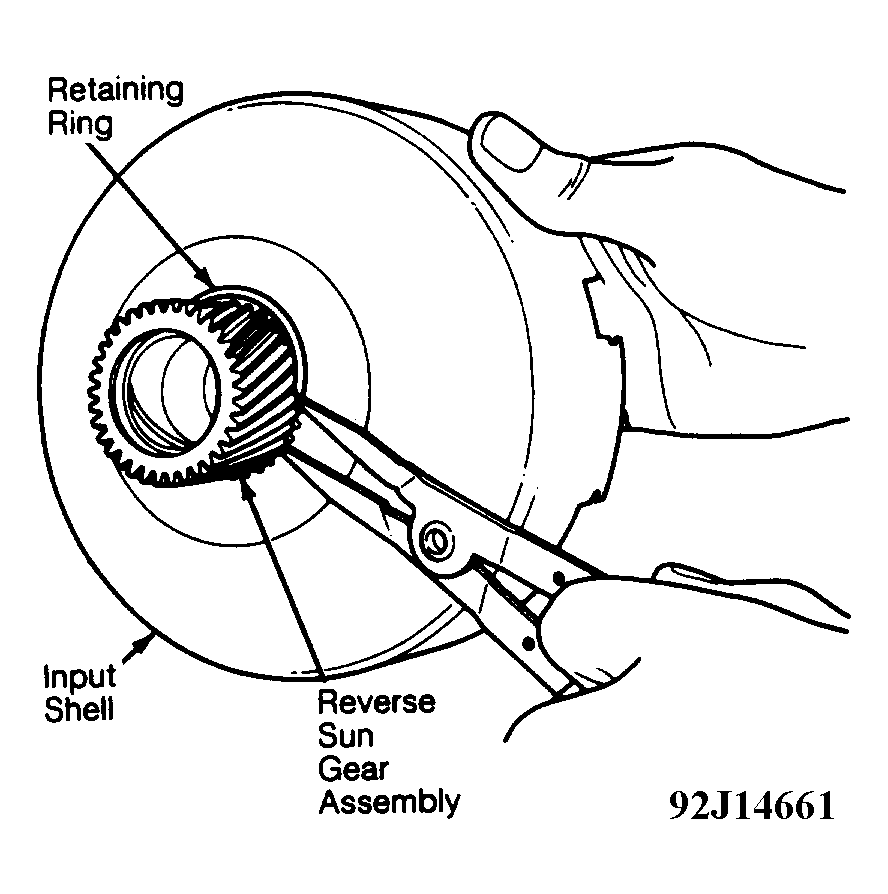

Fig 1: Removing Input Shell
G92J14661Courtesy of FORD MOTOR CO.
