Pinpoint Test B1 - Wait-To-Start Lamp Stays On

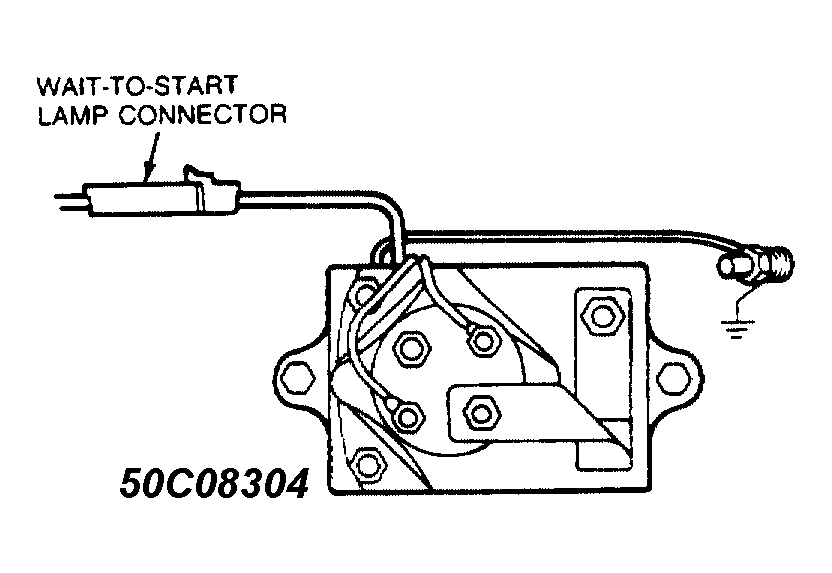

Disconnect the Wait-To-Start lamp connector at control unit See Fig 1. Turn ignition switch to ON position.
If lamp goes ON, service wiring to lamp. If lamp does not go ON, disconnect power at both batteries and replace control unit.
