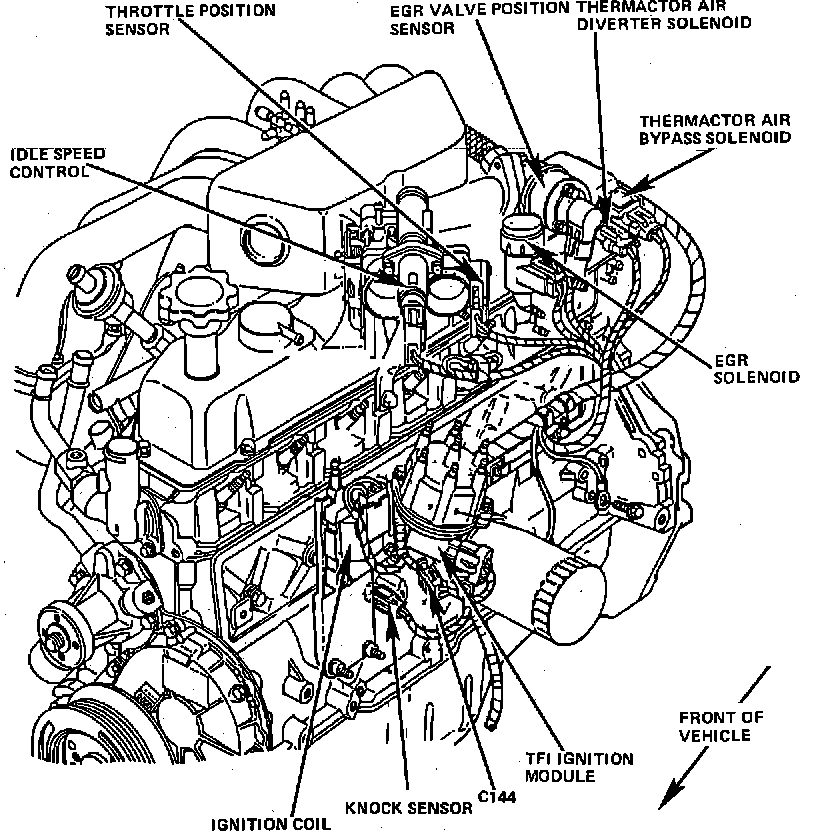

Knock Sensor: Locations

LH Side Of Engine.:

In Engine Block, Near Distributor

Applicable to: 6-300/4.9L
