Removal - Spring Lock Coupling

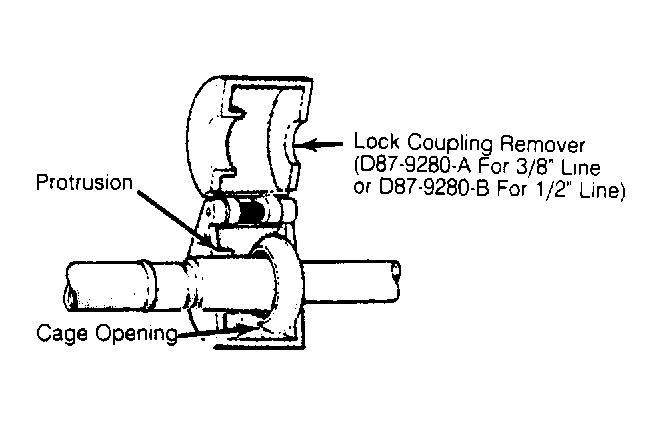

  1. Using Spring Lock Coupling Remover (D87L-9280-A for 3/8" or D87L-9280-B for 1/2"), remove clip from coupling. Place remover over coupling so intrusion is positioned on cage opening side of coupling. See Figure .
  2. Close remover over coupling. Push remover into cage opening to release female fitting from garter spring. Pull male and female halves of coupling apart. Remove tool from disconnected spring lock coupling.
