Cruise Control Module: Service and Repair

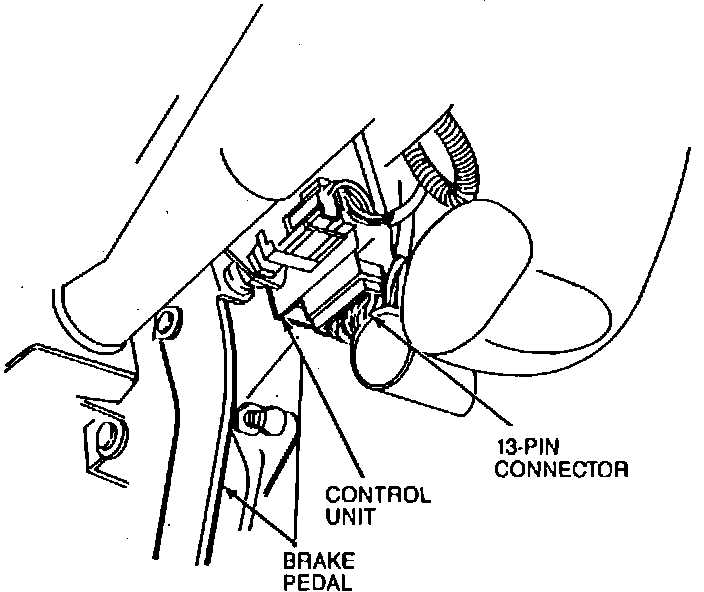

Fig. 83 Control Unit Replace:

1. Remove instrument panel lower panel, lap duct and defrost duct.
2. Remove control unit 13 pin electrical connector, Fig. 83.
3. Remove control unit retaining bolt, then the control unit.
4. Reverse procedure to install.
