Data Link Connector: Locations

FUEL INJECTORS: The fuel injectors are mounted in the lower intake manifold.

FUEL PRESSURE REGULATOR: The fuel pressure regulator is attached to the fuel supply manifold.

FUEL FILTER: RH fender apron in the engine compartment.

FUEL PUMP: The fuel pump is mounted on the fuel sender assembly inside of the fuel tank.

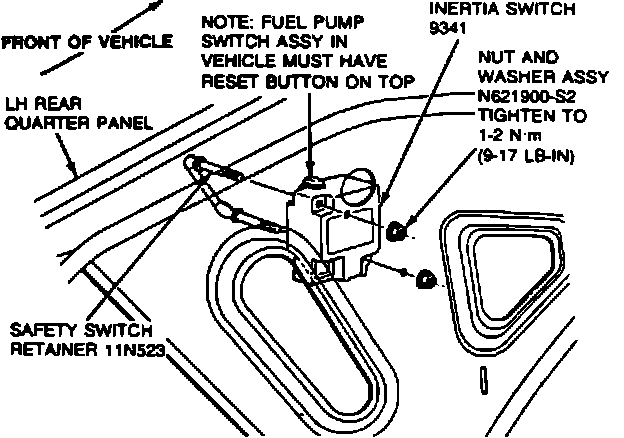

Inertia Switch:

INERTIA SWITCH: The inertia switch is located behind LH interior liftgate area trim panel.

VIP SELF-TEST CONNECTOR: RH side of dash, near wiper motor.
