Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
A: Speed Control Switches
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
A: Speed Control Switches

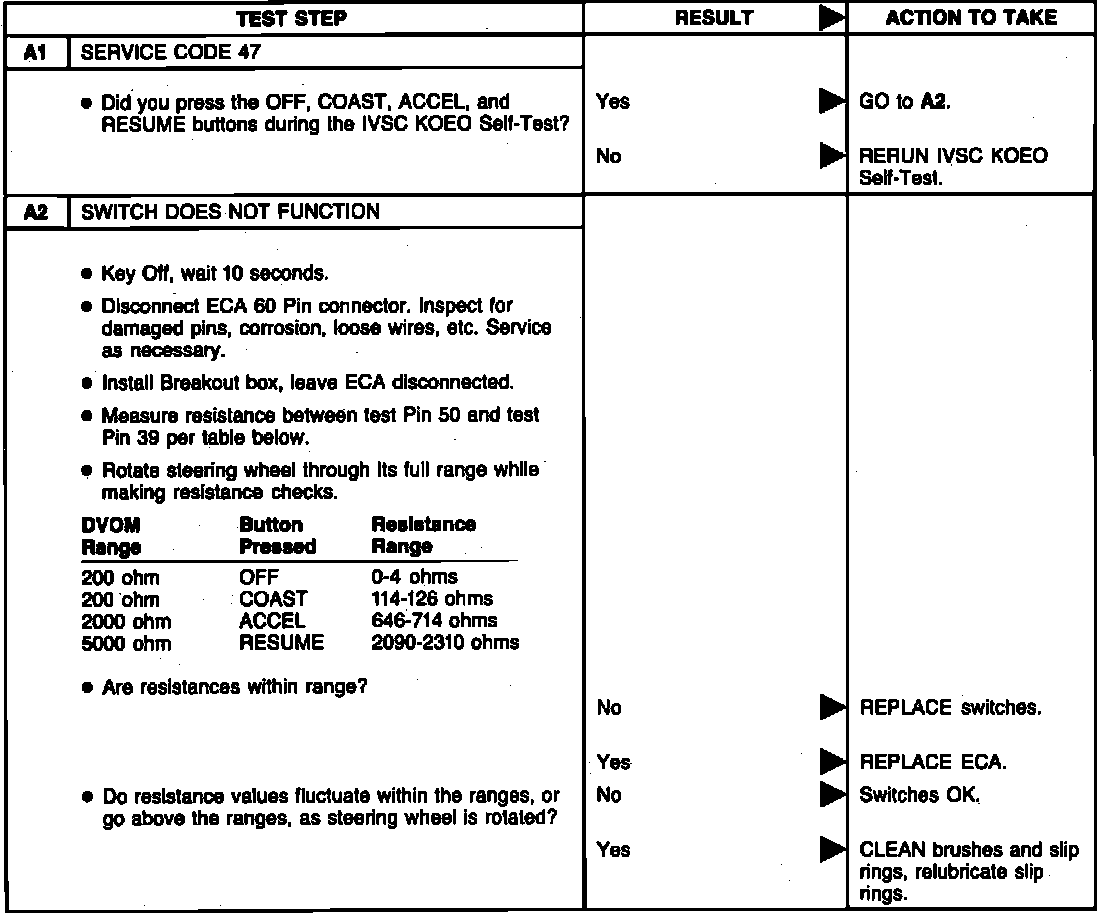

Fig. 41 Speed Control Switches, Pinpoint Test A (Part 1 Of 6):

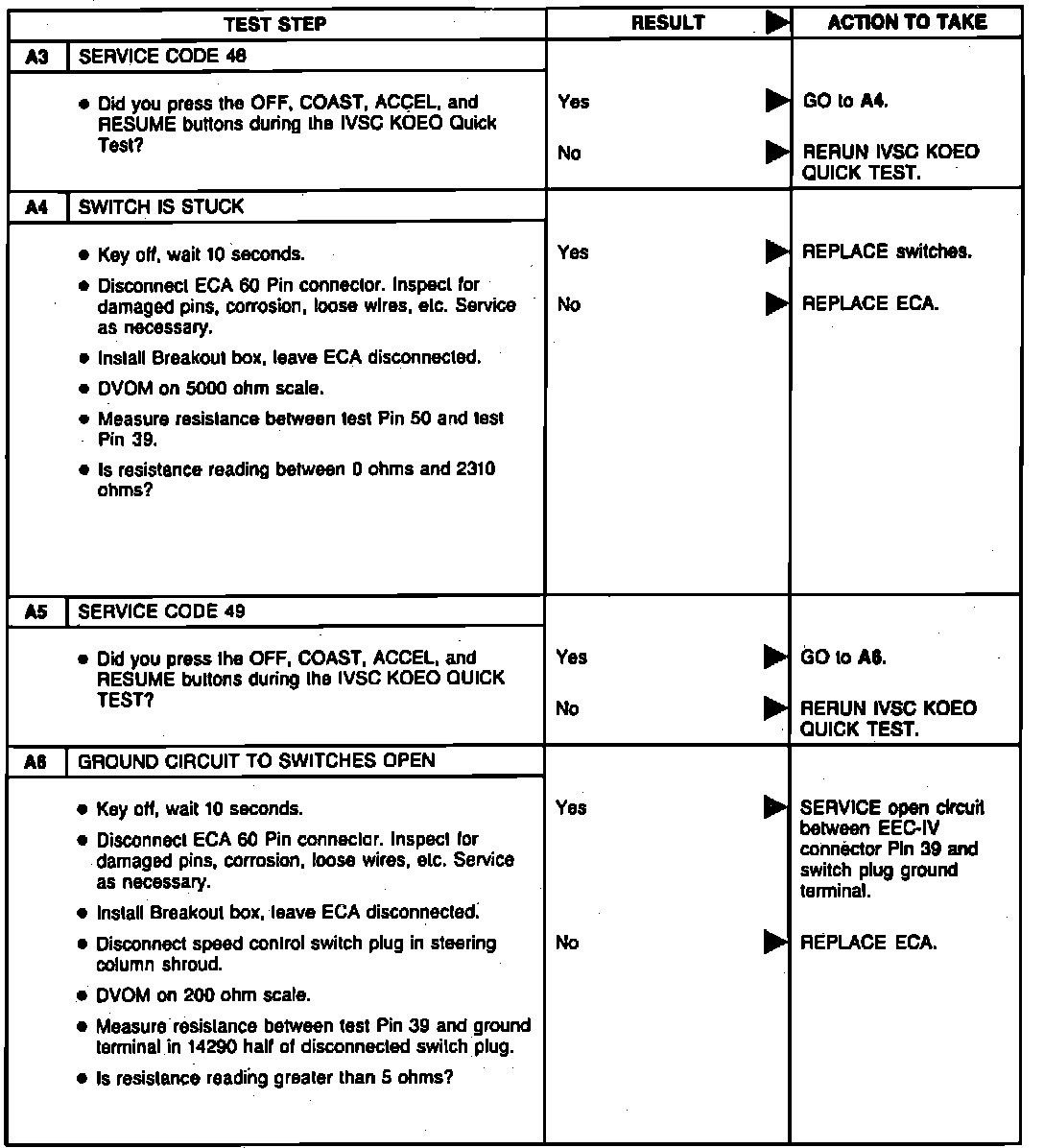

Fig. 41 Speed Control Switches, Pinpoint Test A (Part 2 Of 6):
Fig. 41 Speed Control Switches, Pinpoint Test A (Part 3 Of 6):
