Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Part 2 of 2
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Part 2 of 2

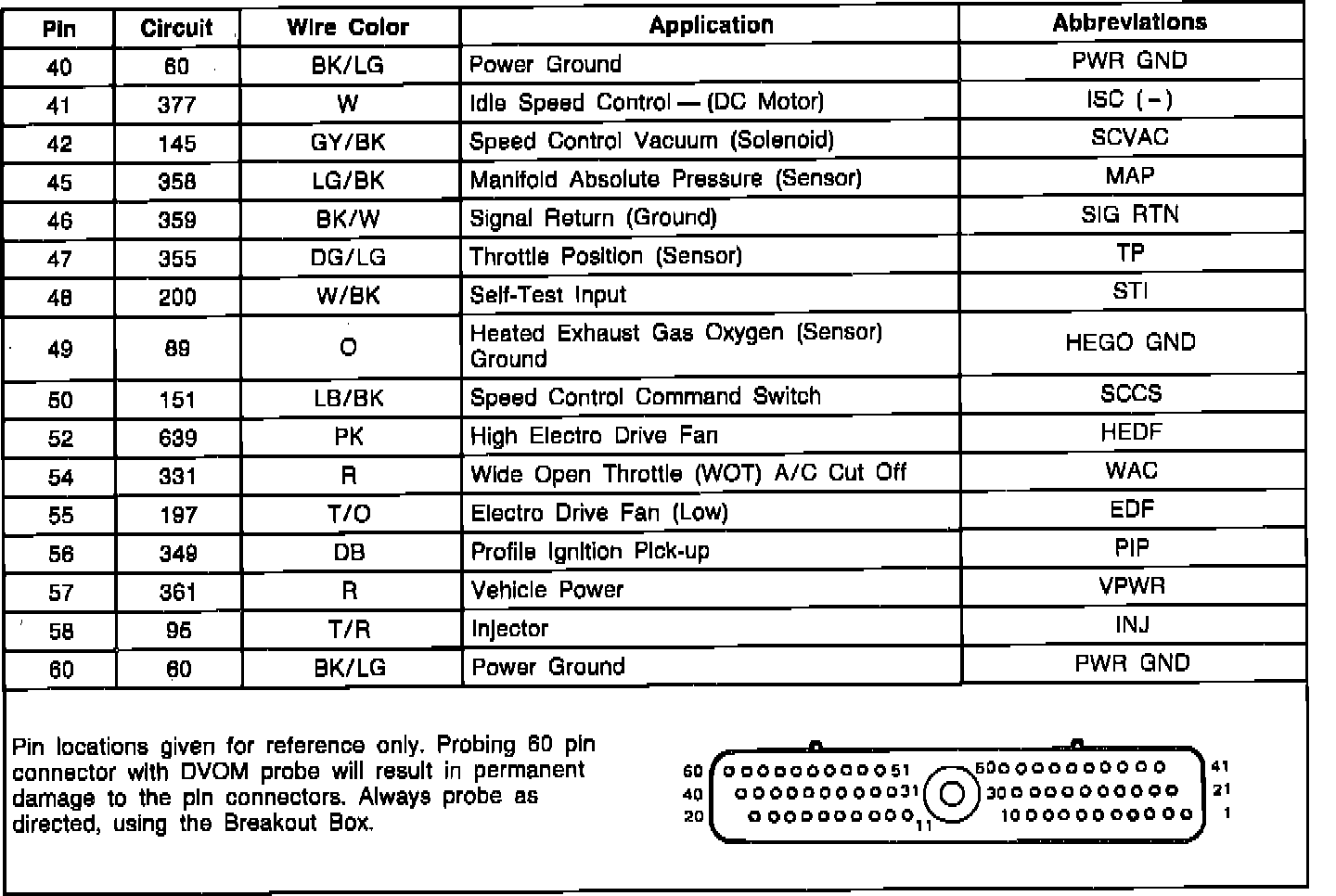

Connector Terminal I.D. - No. 40-60:
