Electric Shift Module Wiring Schematic - Correction

Article No.
91-3-11

02/02/91

0GTRANSFER CASE - 4X4 ELECTRIC SHIFT MODULE - EVTM WIRING CORRECTIONS

LIGHT TRUCK:
1989-90 BRONCO II
1989-91 RANGER
1991 EXPLORER

ISSUE:
Some of the wiring schematics shown in the EVTMs contain errors which make circuit tracing difficult. A complete update of these schematics will be made in the near future.

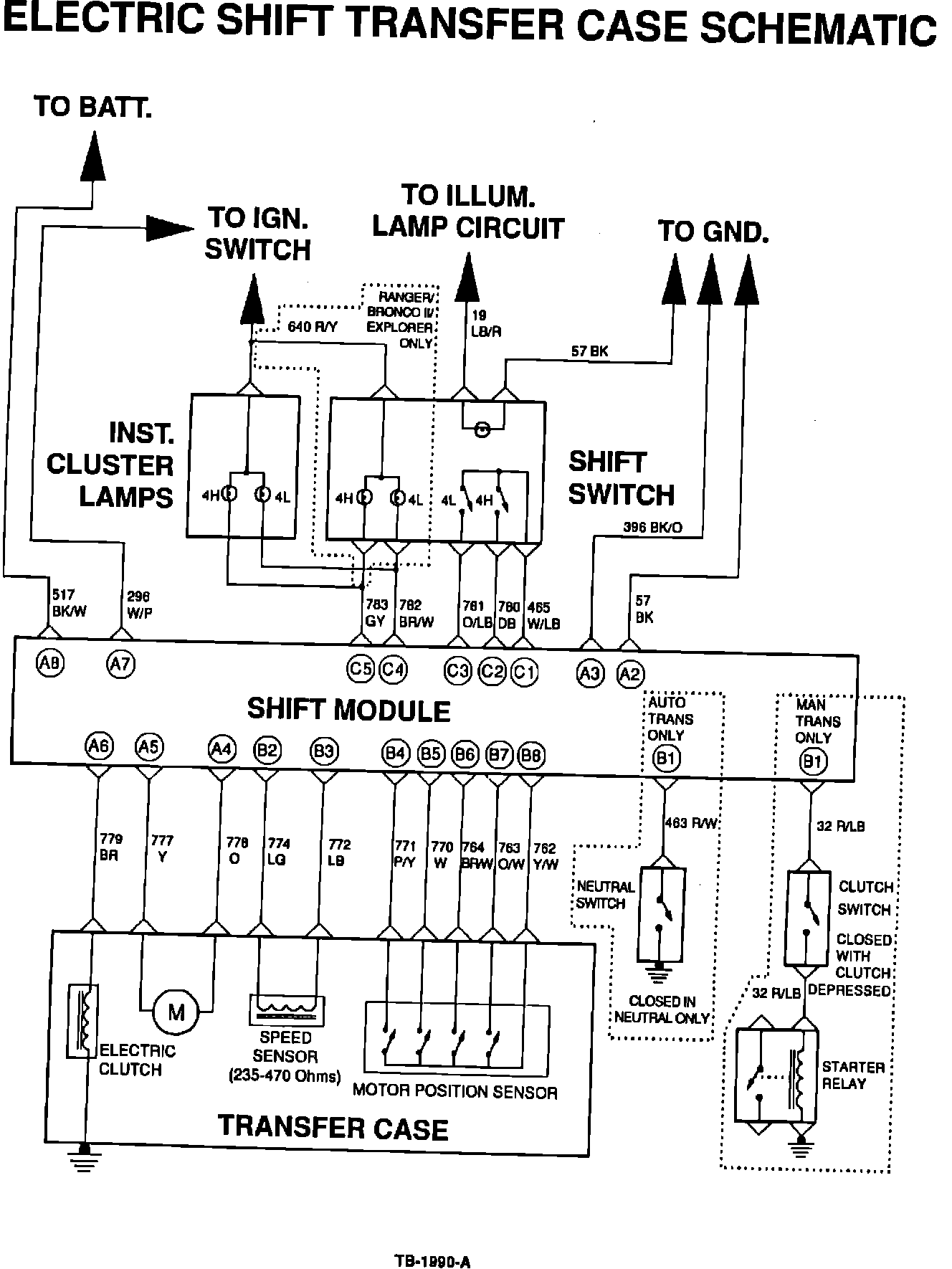

Figure 1:

ACTION:
In the interim, refer to the simplified schematic, Figure 1. It shows the electrical circuitry for the transfer case shift mechanism while deleting connectors and interconnects with other circuits for clarity.

OTHER APPLICABLE ARTICLES: None

WARRANTY STATUS: INFORMATION ONLY


OASIS CODES: 203200, 290000, 508000, 590000
