LEMON Manuals: Even more car manuals for everyone: 1960-2025
Home >> Ford >> 1991 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Locations >> Component Locations >> Engine Views
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Engine Views

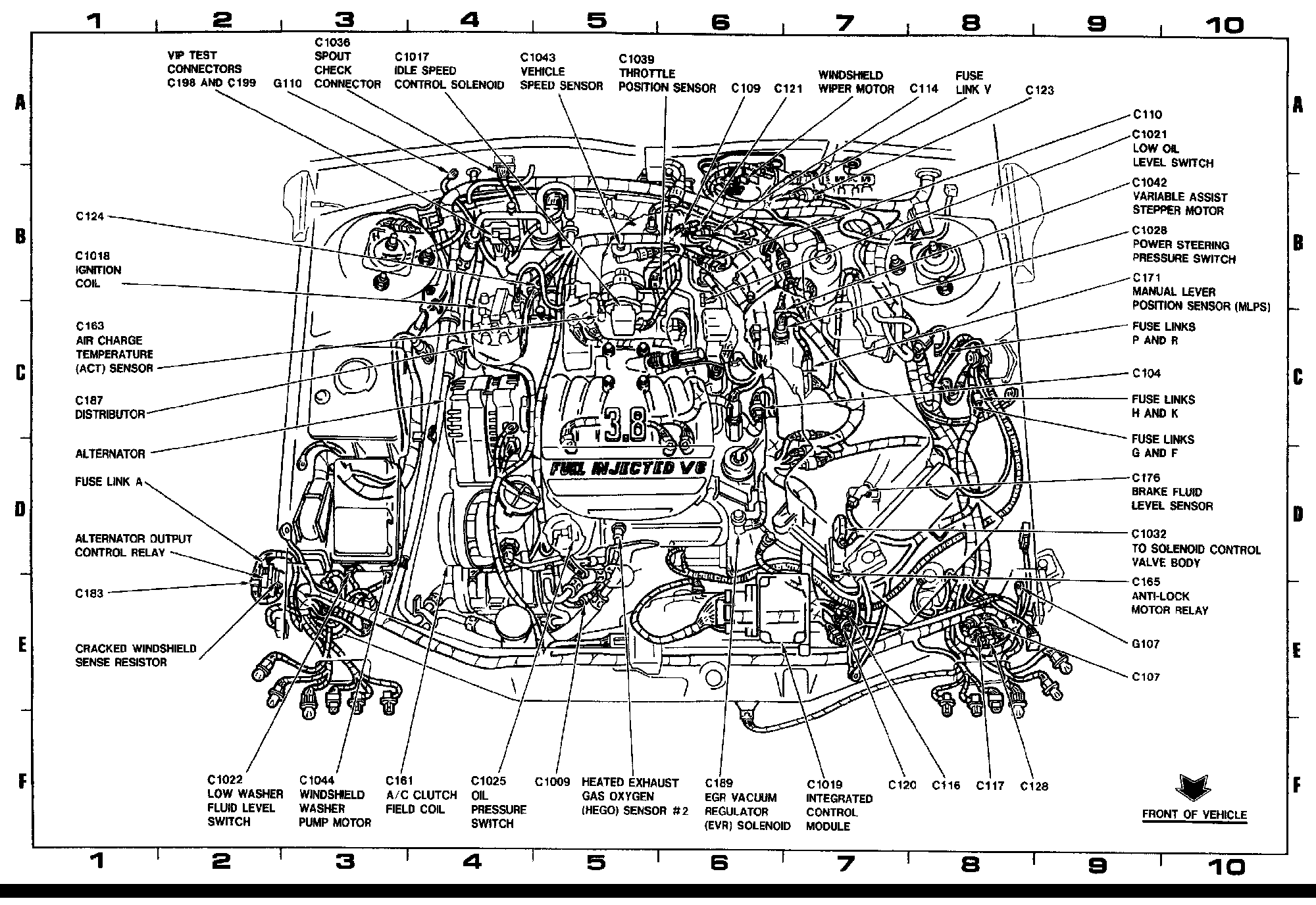

View 151-7 (Engine View):

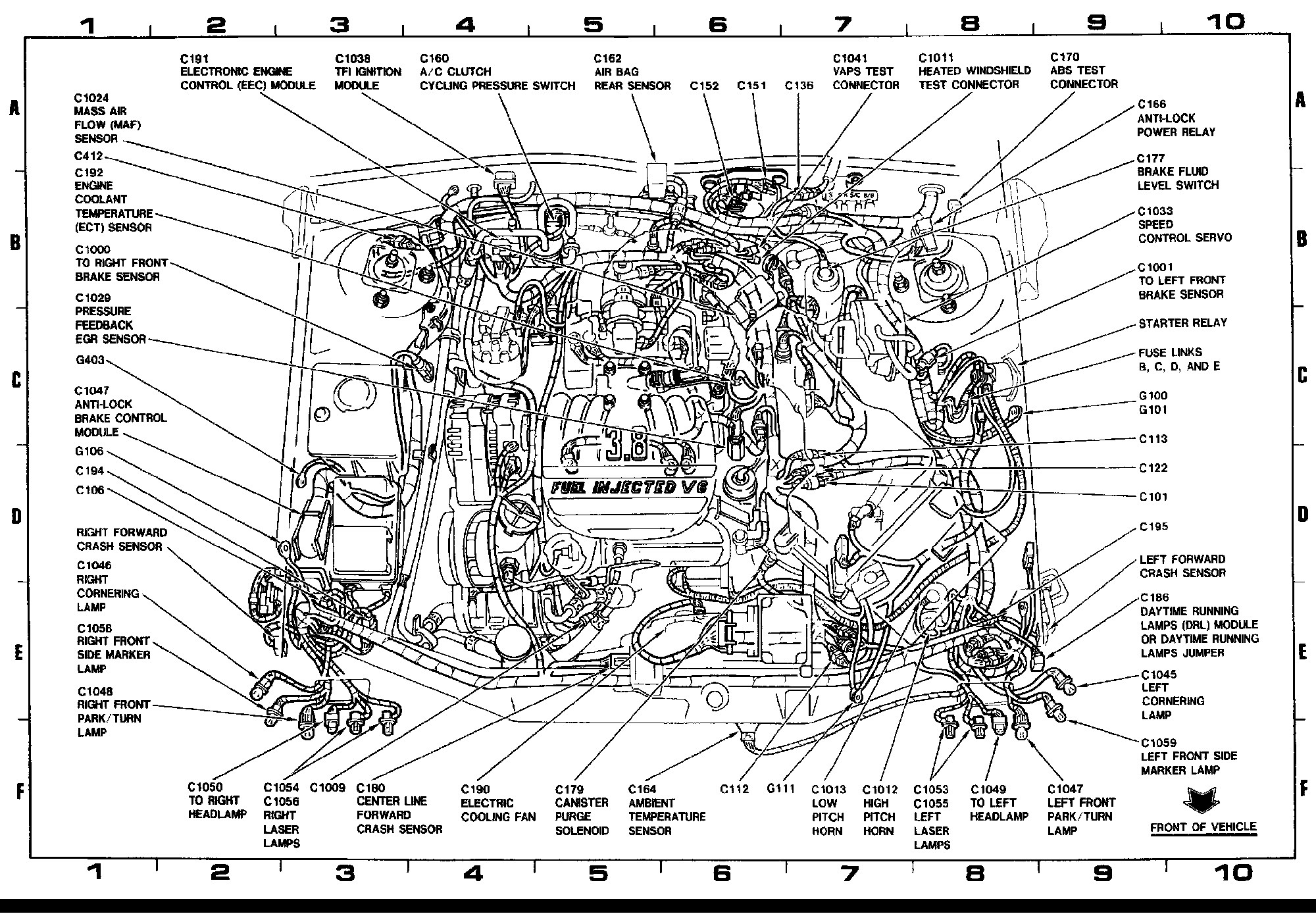

View 151-8 (Engine View):
