Control Units

CONTROL UNITS LOCATION

Component Location

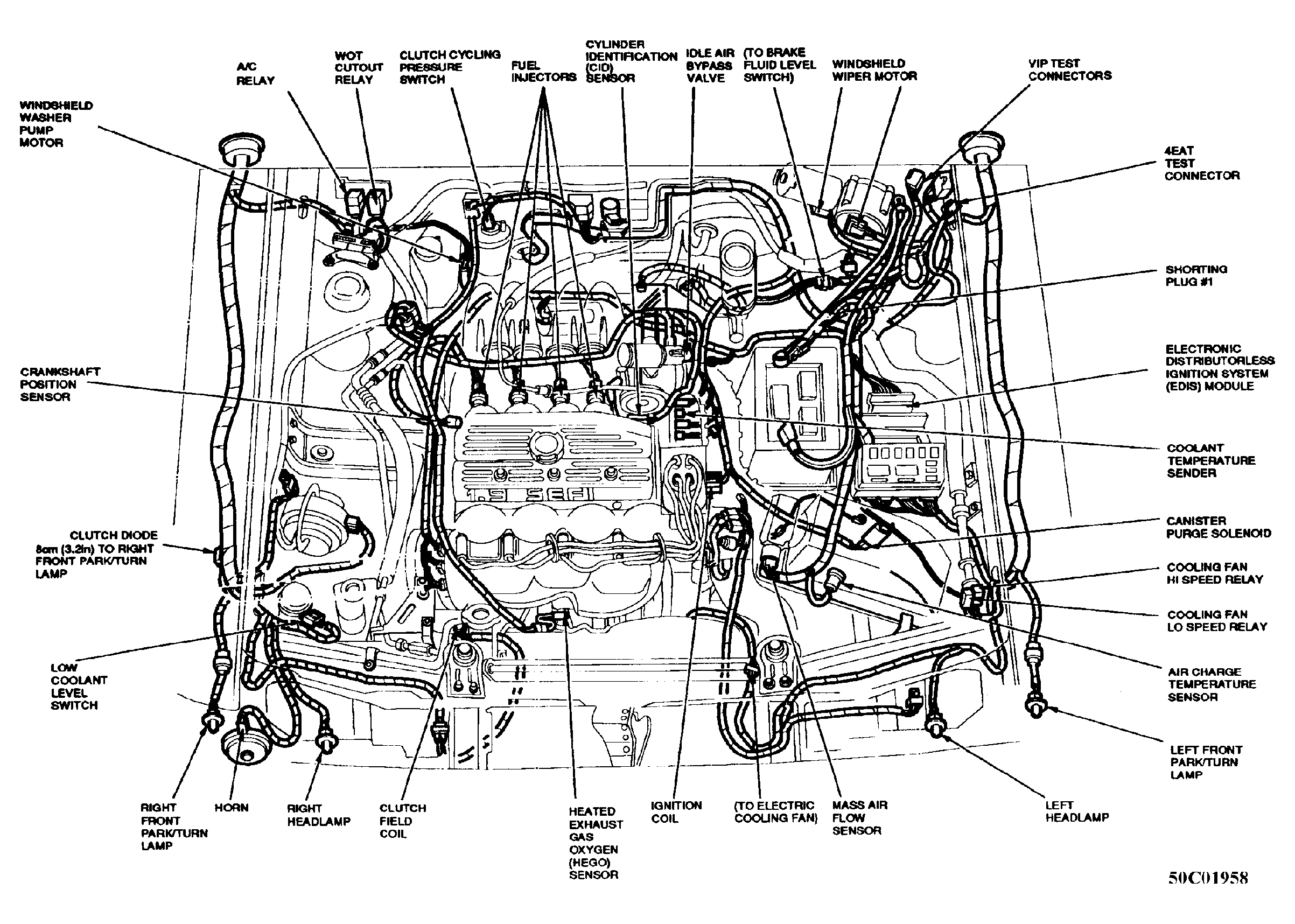

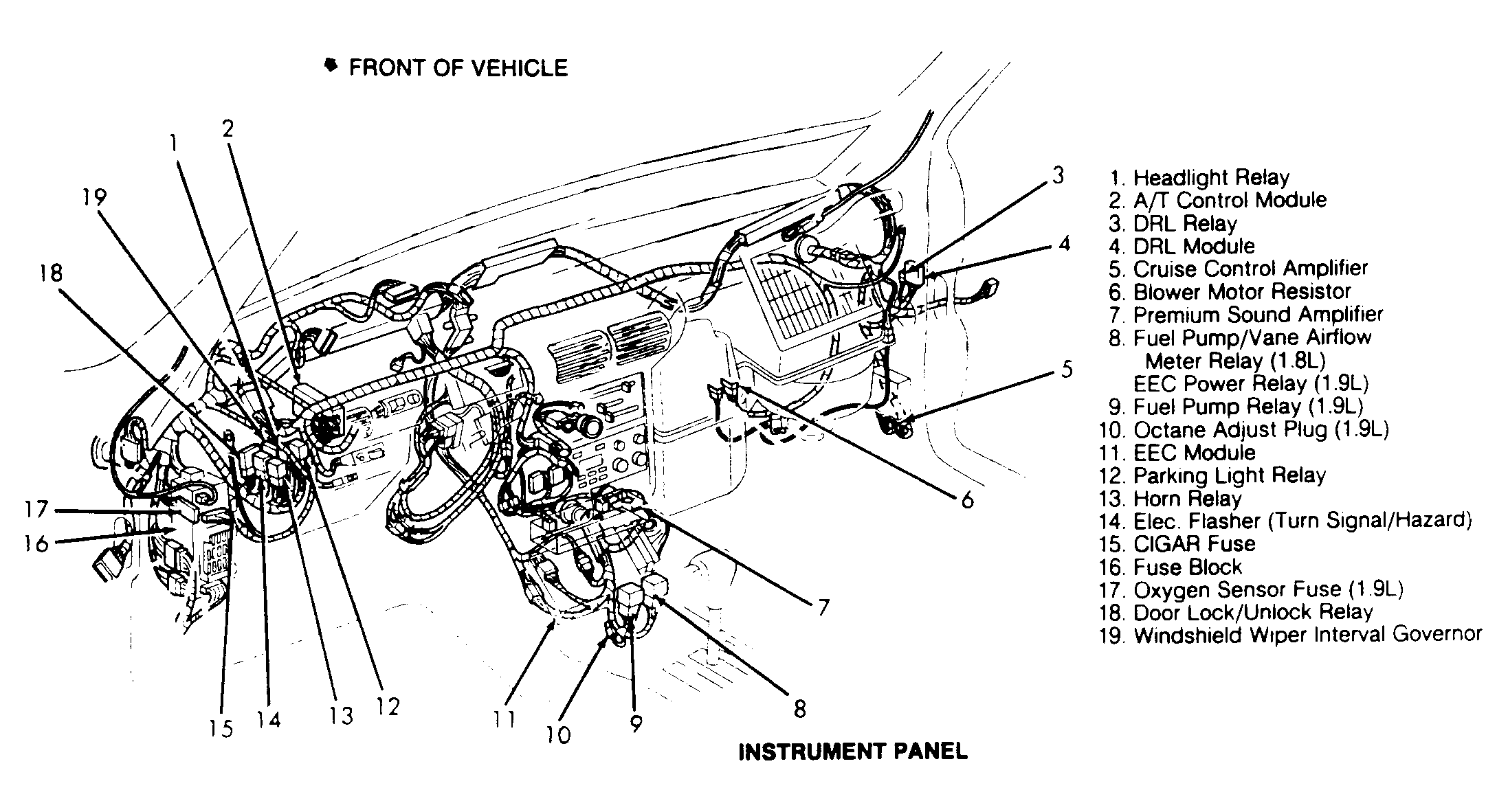

A/T Control Module Behind instrument panel, to left of brake pedal support. See Figure .
Daytime Running Lights (DRL) Module Behind right kick panel. See Figure .

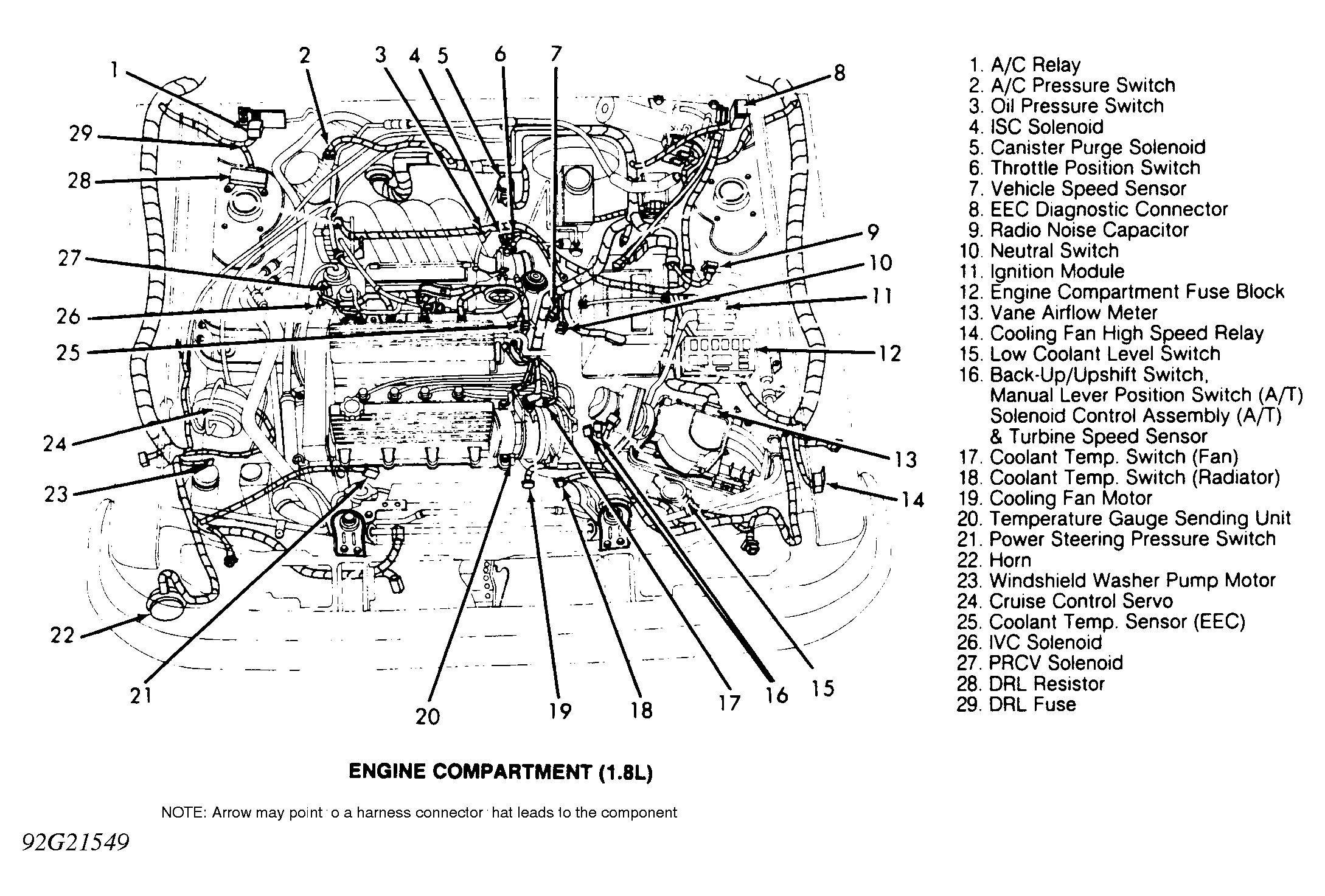

Electronic Distributorless Ignition System (EDIS) Module (1.9L) Rear of engine bay fuse block. See Figure .
Electronic Engine Control (EEC) Module Forward of center console. See Figure .
Ignition Module (1.8L) Rear of engine bay fuse block. See Figure .
Passive Restraint Module Under driver seat.
