Starter No-Load Test
- Connect starting system test equipment following manufacturer instructions. See Fig 2
. Ensure carbon pile rheostat of starter tester is turned off.
- Connect heavy wire between negative battery terminal and starter frame. Connect another heavy wire between positive battery terminal and positive terminal of starter solenoid.
CAUTION:
Ensure starter is securely mounted in vise while energizing as starter will move or jump.
- Connect a jumper wire between battery positive terminal and terminal "S" on starter solenoid. Leave this jumper connected only long enough to read tester ammeter. See STARTER SPECIFICATIONS
.

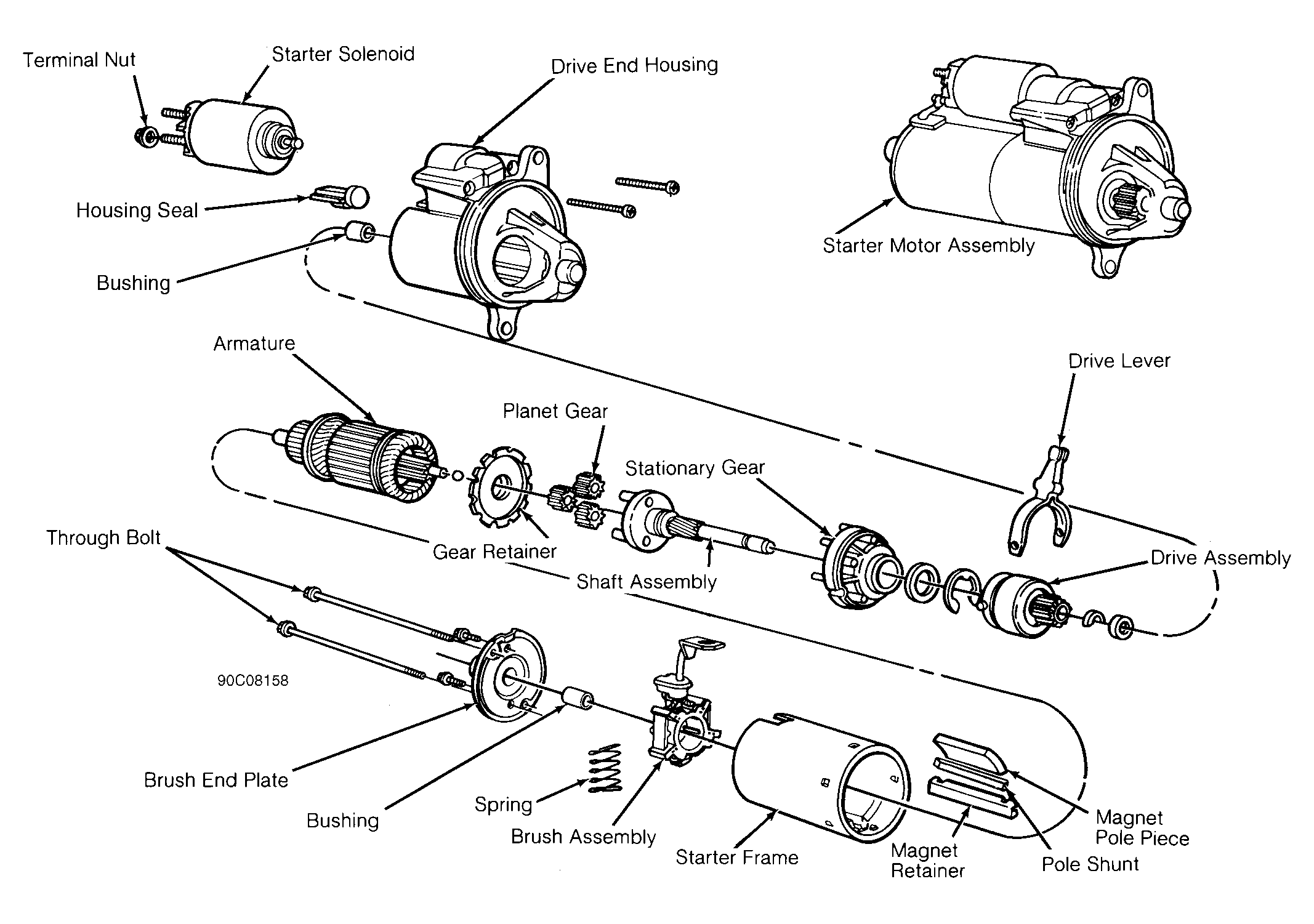

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
