Control Module, A/T

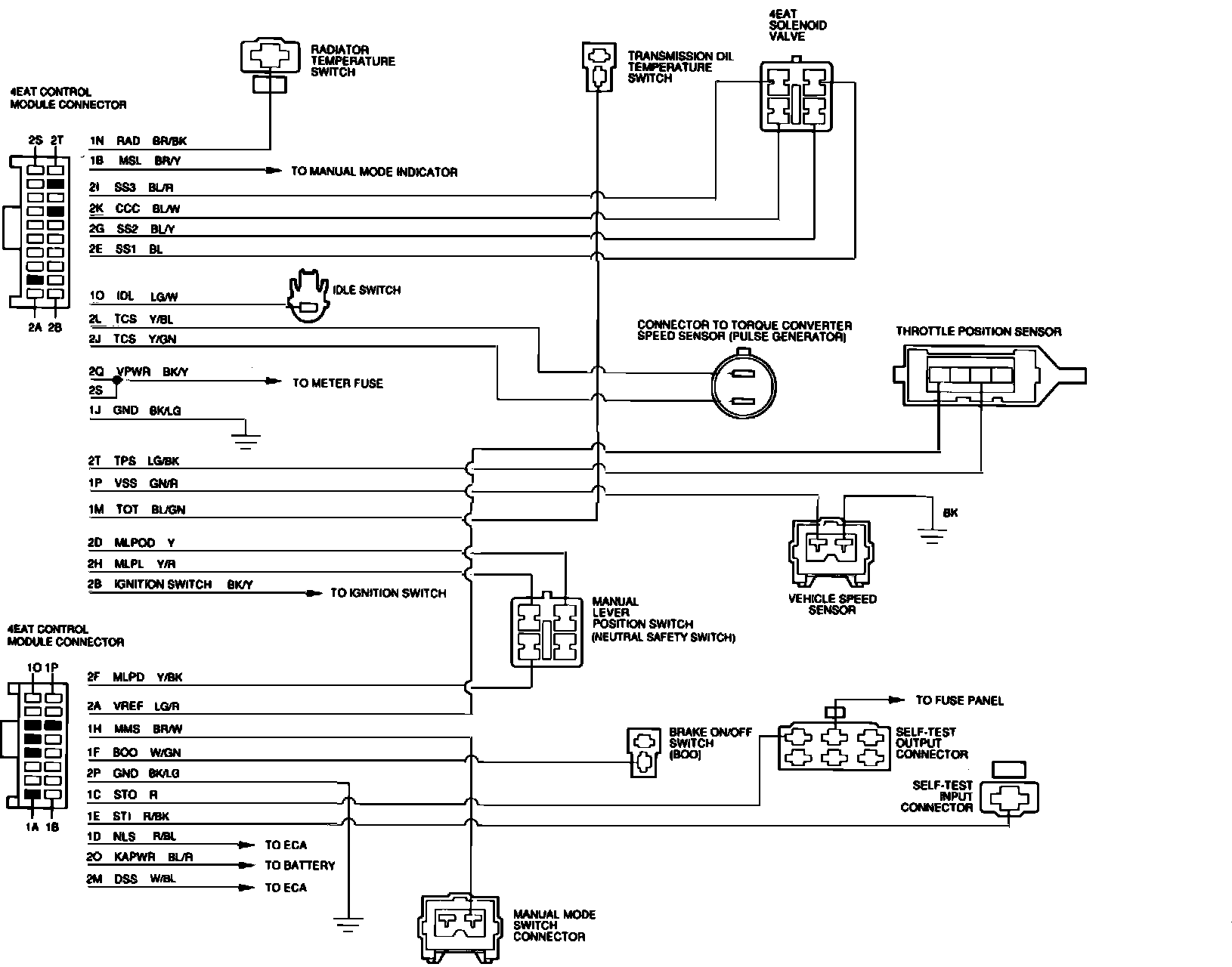

4EAT CONTROL MODULE ELECTRICAL DIAGRAM

Electrical Schematic:

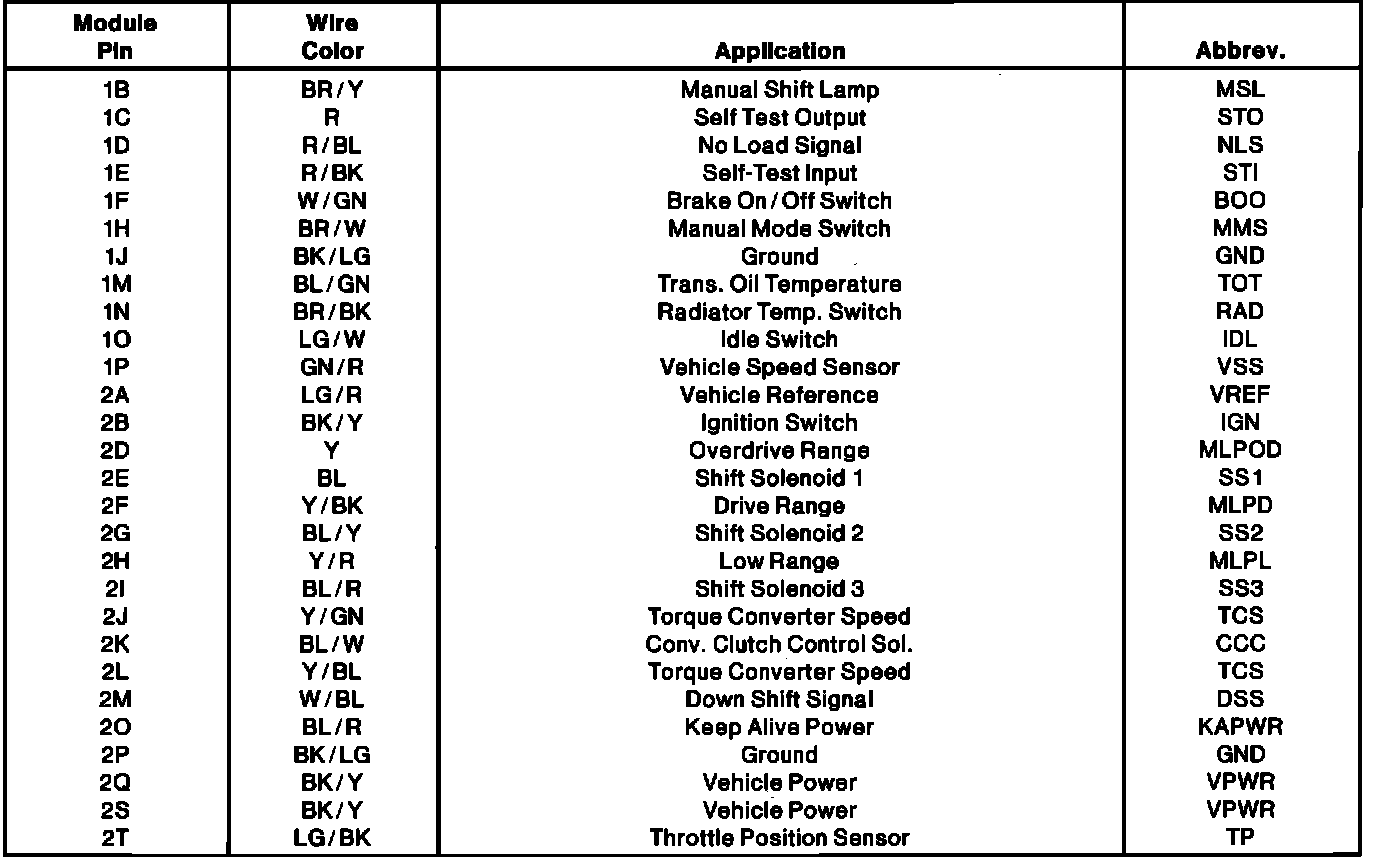

4EAT CONTROL MODULE CONNECTOR PIN USAGE

Control Module Pinout:
