Ignition Control Module: Service and Repair

REMOVAL
1. Disconnect negative battery cable.
2. Remove high tension lead from coil terminal.
3. Disconnect ignitor wiring harness.

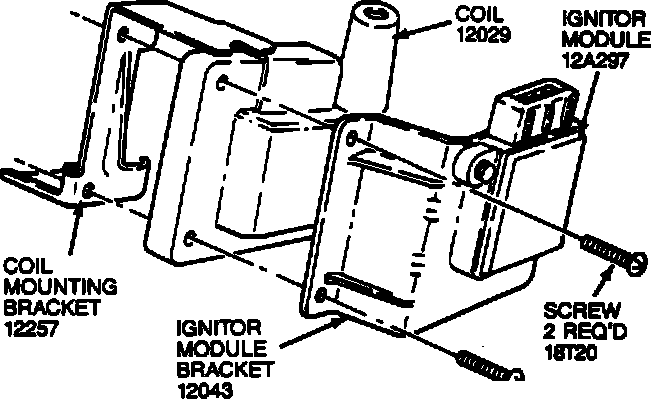

Ignitor Module And Ignition Coil Assembly:





4. Remove the two screws securing ignitor module assembly.

INSTALLATION
1. Install ignitor module assembly and tighten mounting screws.
2. Connect ignitor wiring harness.
3. Install high tension lead into coil center terminal.
4. Connect negative battery cable.
