Windshield Wiper/Washer Switch
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

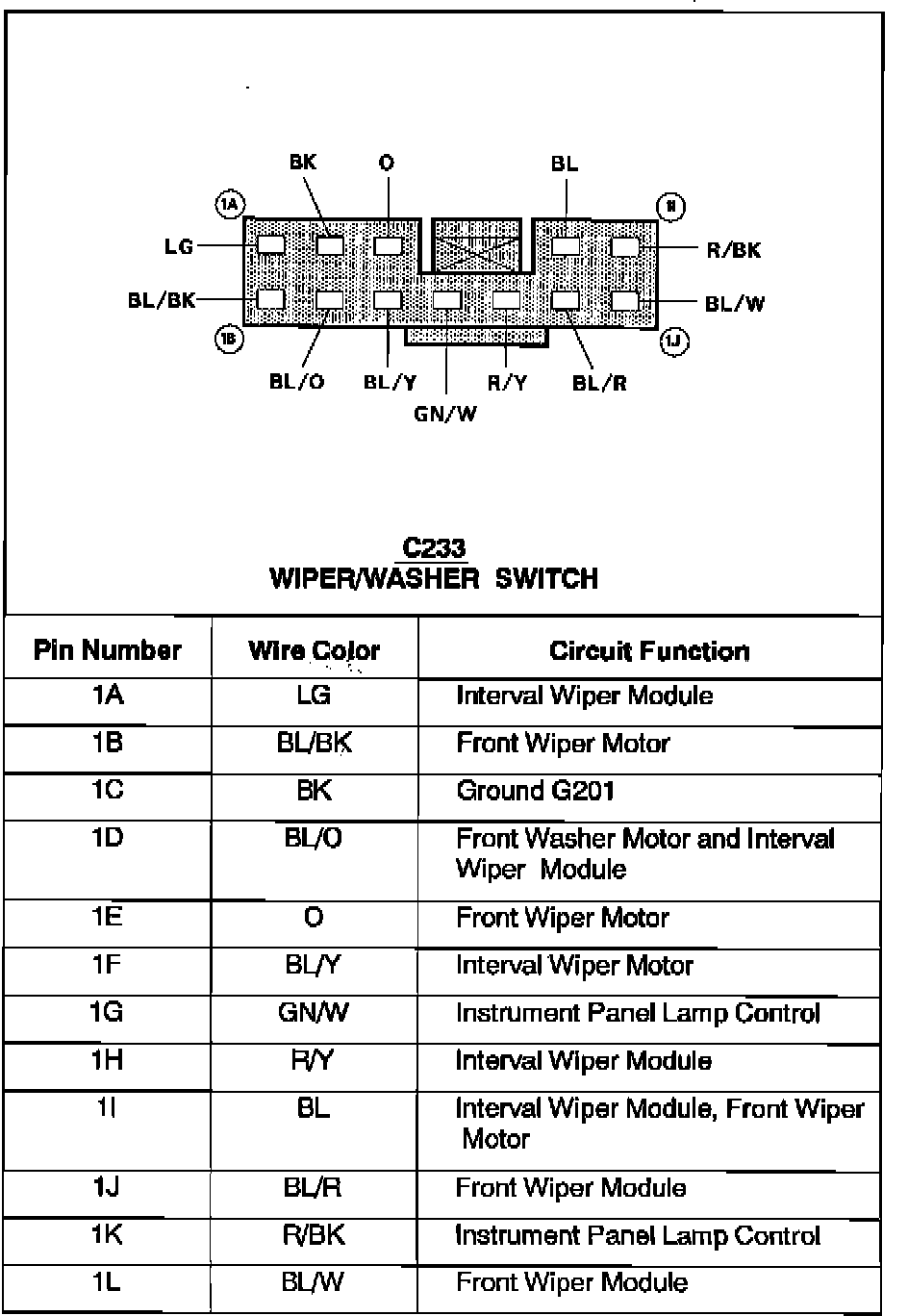

Windshield Wiper/Washer Switch
Wiper/Washer Switch:
