Ignition Control Module

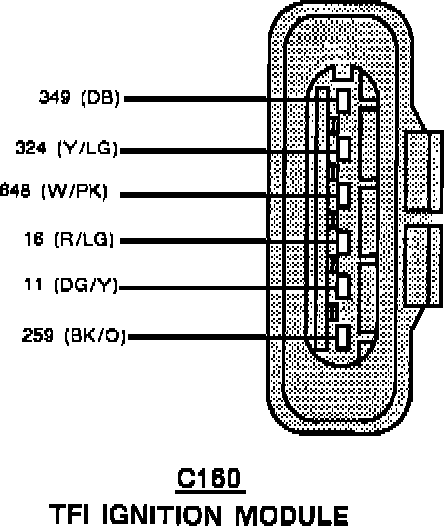

Thick Film Ignition Module Connector Pinout:



Distributor Mounted TFI-IV Ignition Module:
