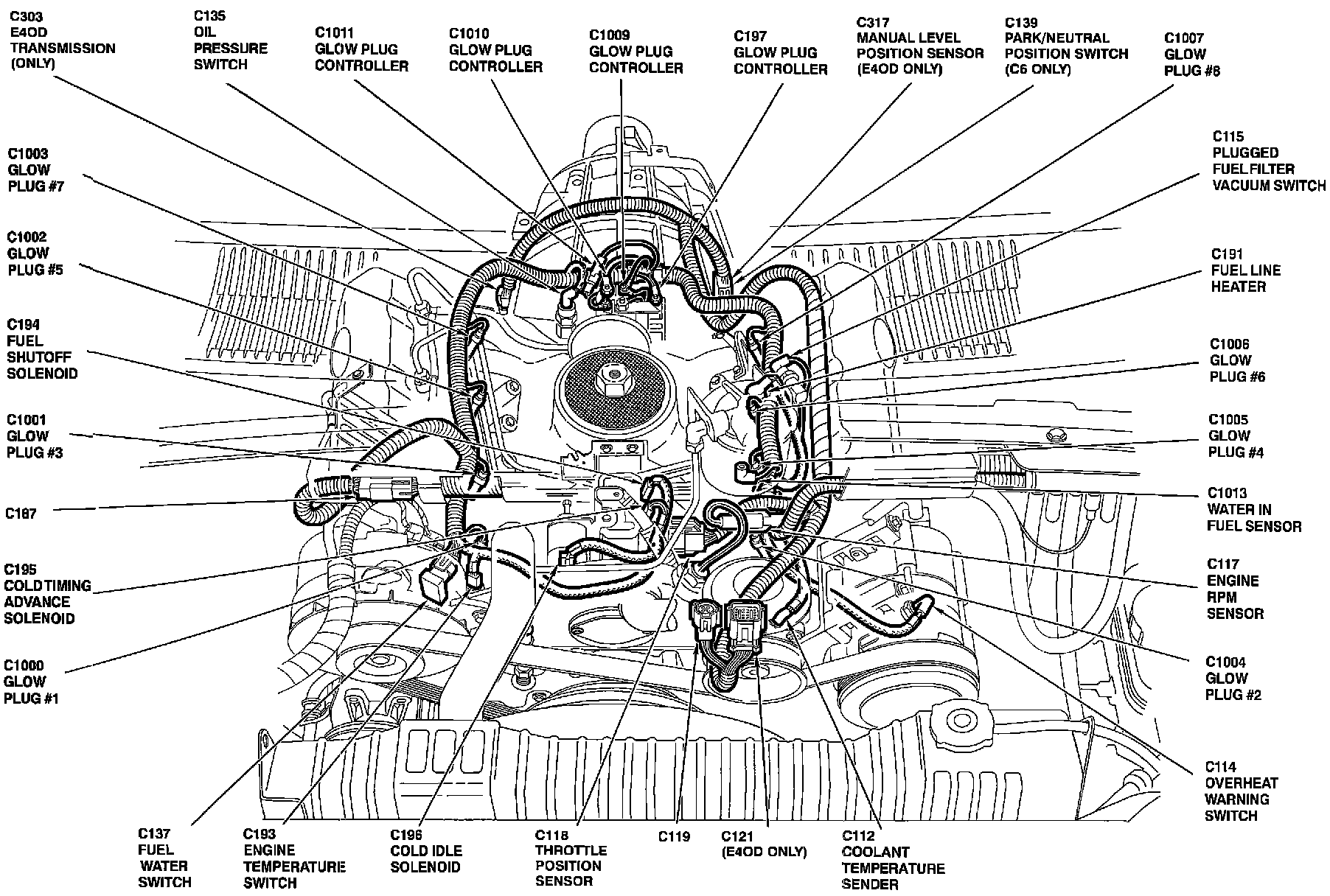

Full Engine Views

Component Locations:

COLD IDLE SOLENOID
COLD TIMING ADVANCE SOLENOID
COOLANT TEMPERATURE SENDER (E4OD ONLY)
ENGINE RPM SENSOR
ENGINE TEMPERATURE SWITCH
FUEL LINE HEATER
FUEL SHUTOFF-SOLENOID
FUEL WATER SWITCH
GLOW PLUG #1
GLOW PLUG #2
GLOW PLUG #3
GLOW PLUG #4
GLOW PLUG #5
GLOW PLUG #6
GLOW PLUG #7
GLOW PLUG #B
GLOW PLUG CONTROLLER
MANUAL LEVEL POSITION SENSOR (E4OD ONLY)
OIL PRESSURE SWITCH
OVERHEAT WARNING SWITCH
PARK/NEUTRAL POSITION SWITCH (C6 ONLY)
PLUGGED FUEL FILTER VACUUM SWITCH
THROTTLE POSITION SENSOR
WATER IN FUEL SENSOR
