Ford 8.8 Inch

Ford 8.8 Inch, Gear Ratio/Ring Gear Diameter:





Ford 8.8 Inch, Technical Data (Bronco, F-150):

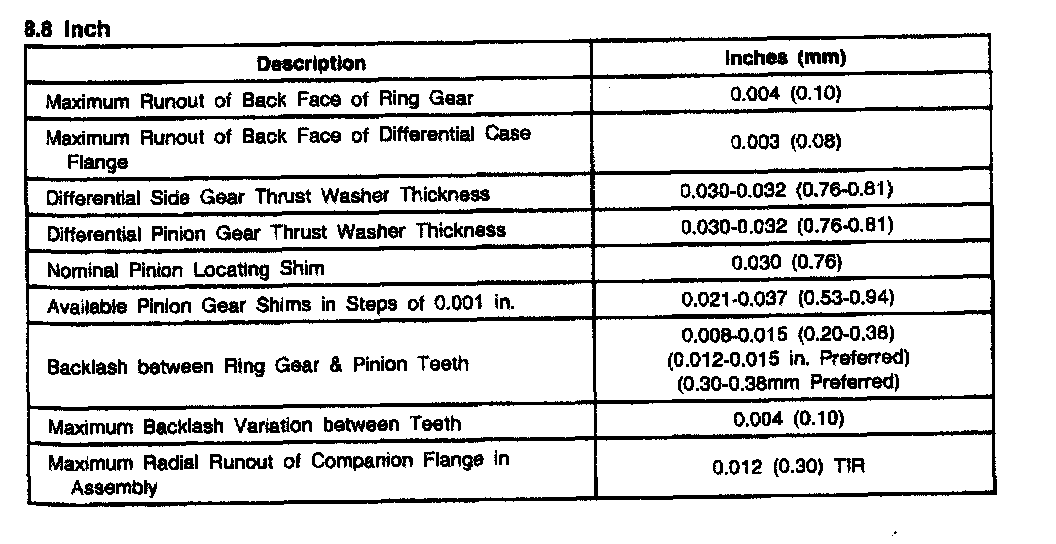

Ford 8.8 Inch, Clearances/Tolerance:





Ford 8.8 Inch, Carrier Backlash/Shim Thickness:
