Home >> Ford >> 1994 >> Mustang V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Master Window/Door Lock Control Switch >> Convertible

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Convertible

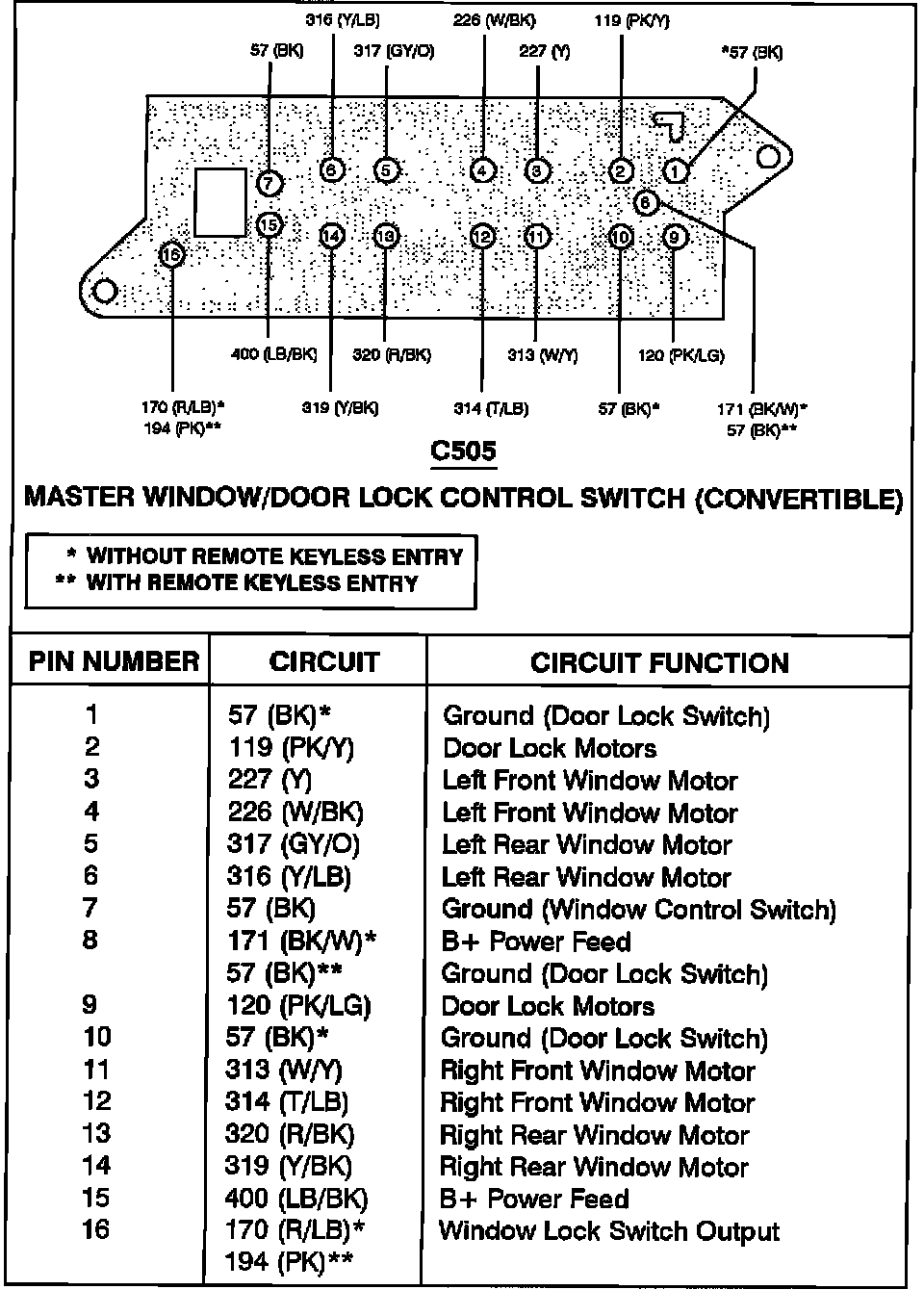

Master Window/Door Lock Control Switch (Convertible):
