Engine Compartment Fuse Box.

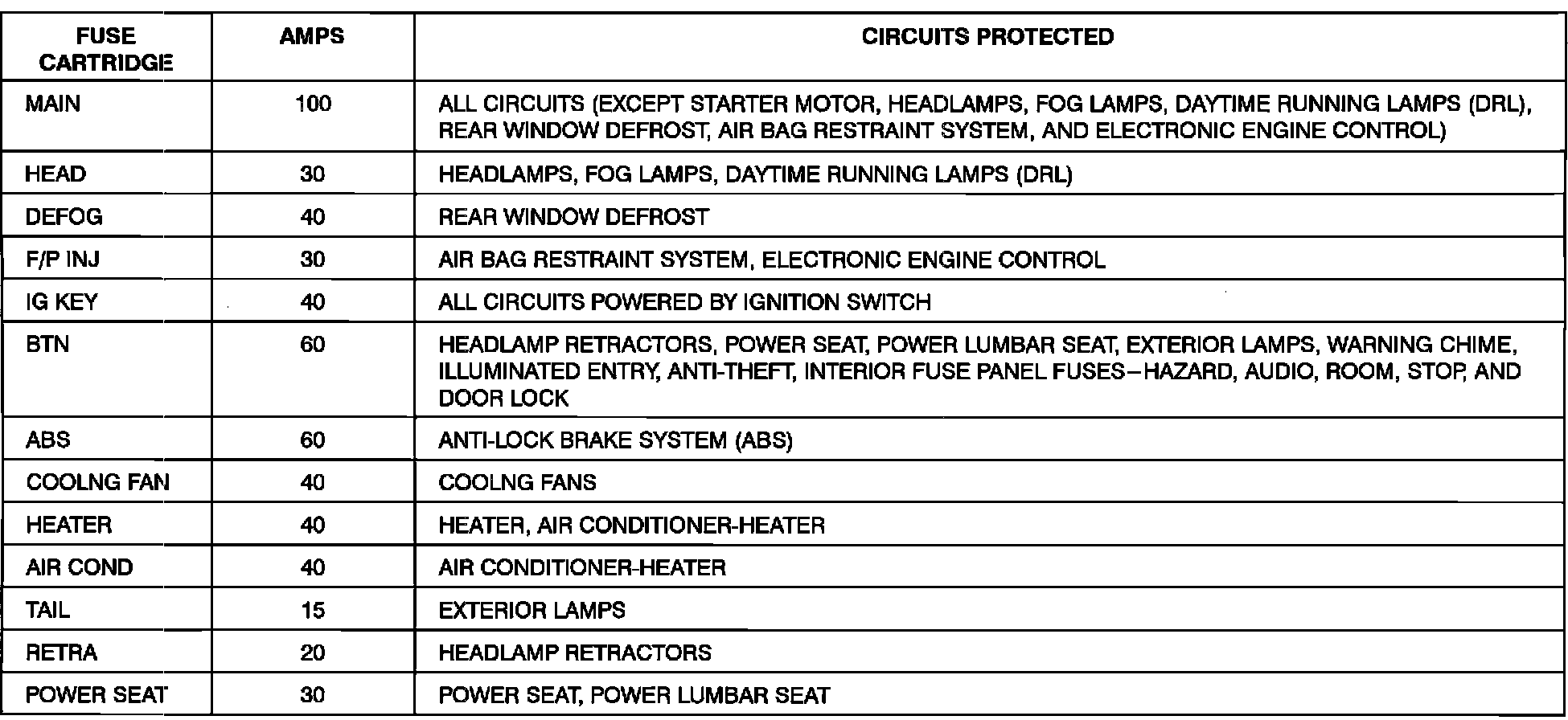

Engine Compartment Fuse Box:

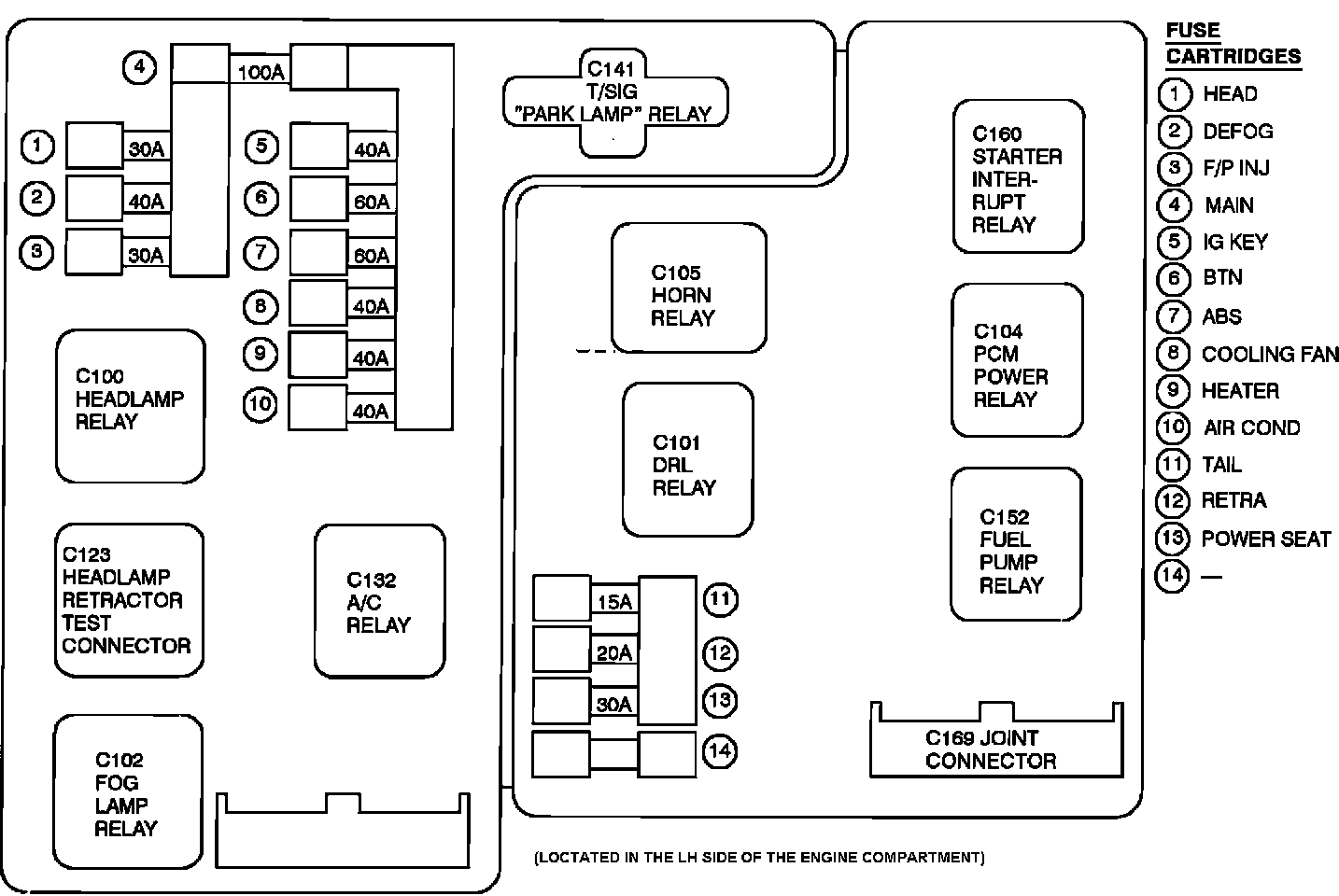

Engine Compartment Fuse Box Circuit Protector:
