Oscilloscope Patterns and Waveforms

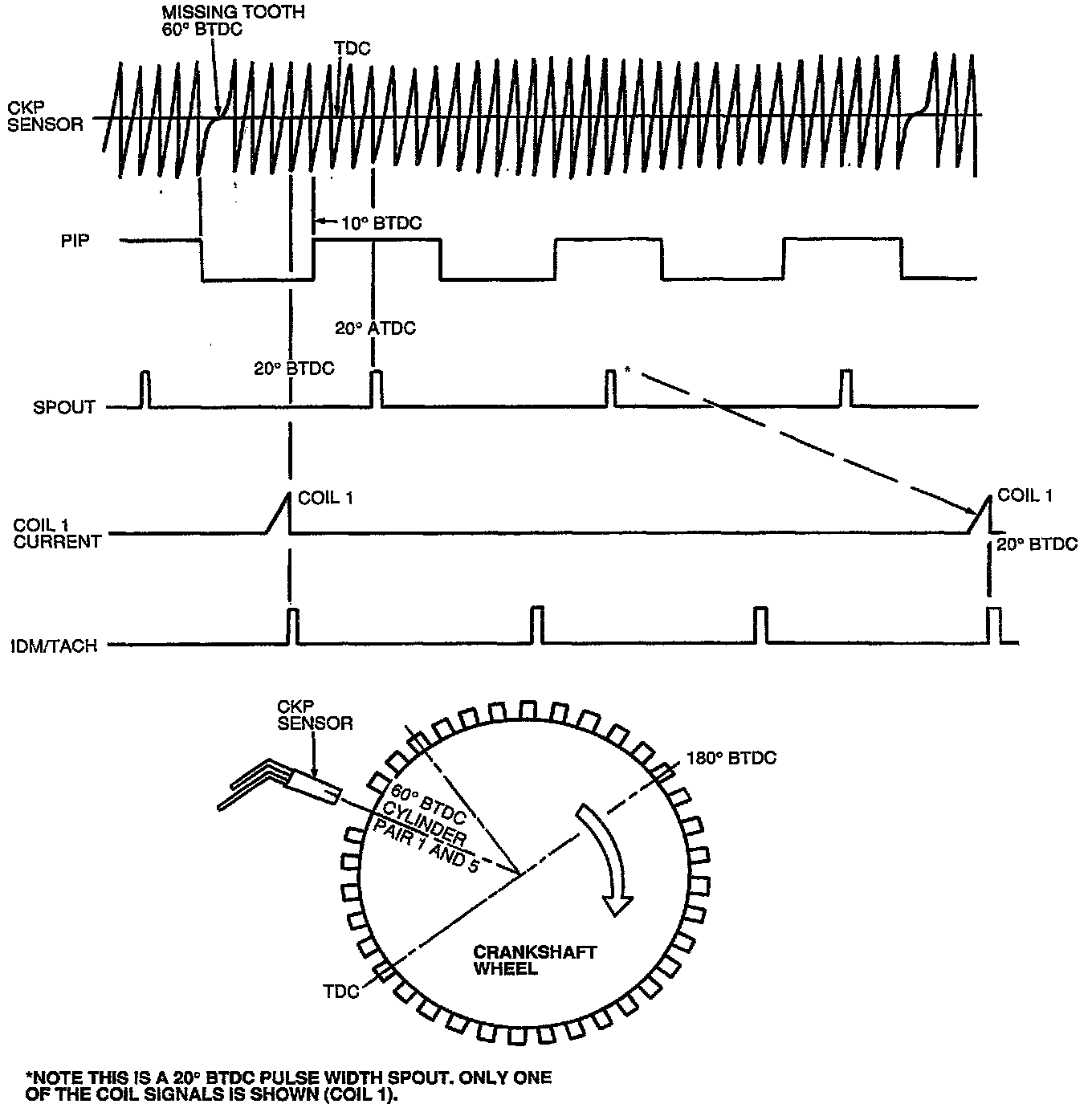

3.0L Flexible Fuel EI Waveforms:

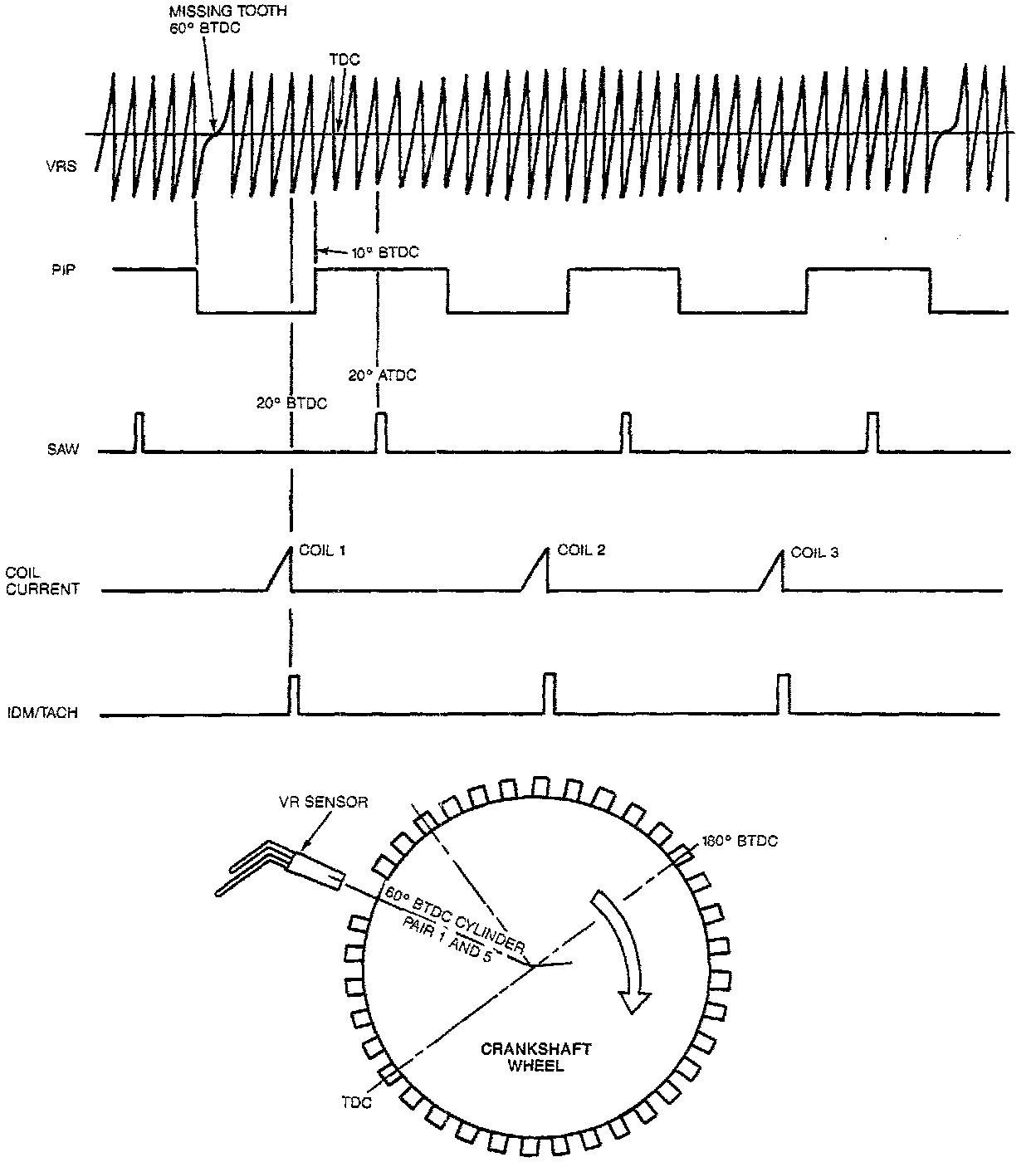

3.0L Flexible Fuel EI Waveforms:
