Ignition Control Module
GASOLINE

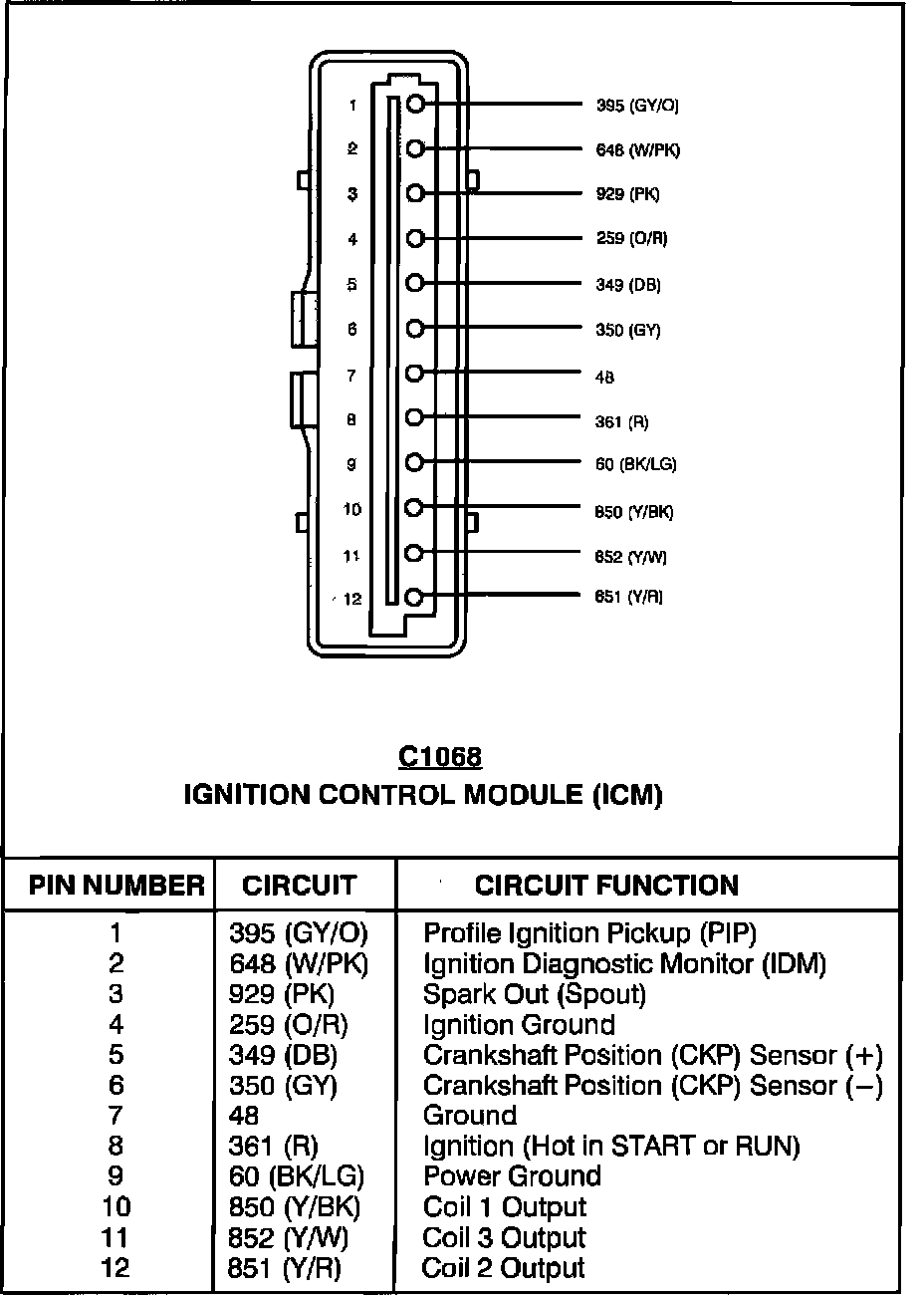

Ignition Control Module (ICM):
FLEXIBLE FUEL
Ignition Control Module (ICM):
