Keyless Entry

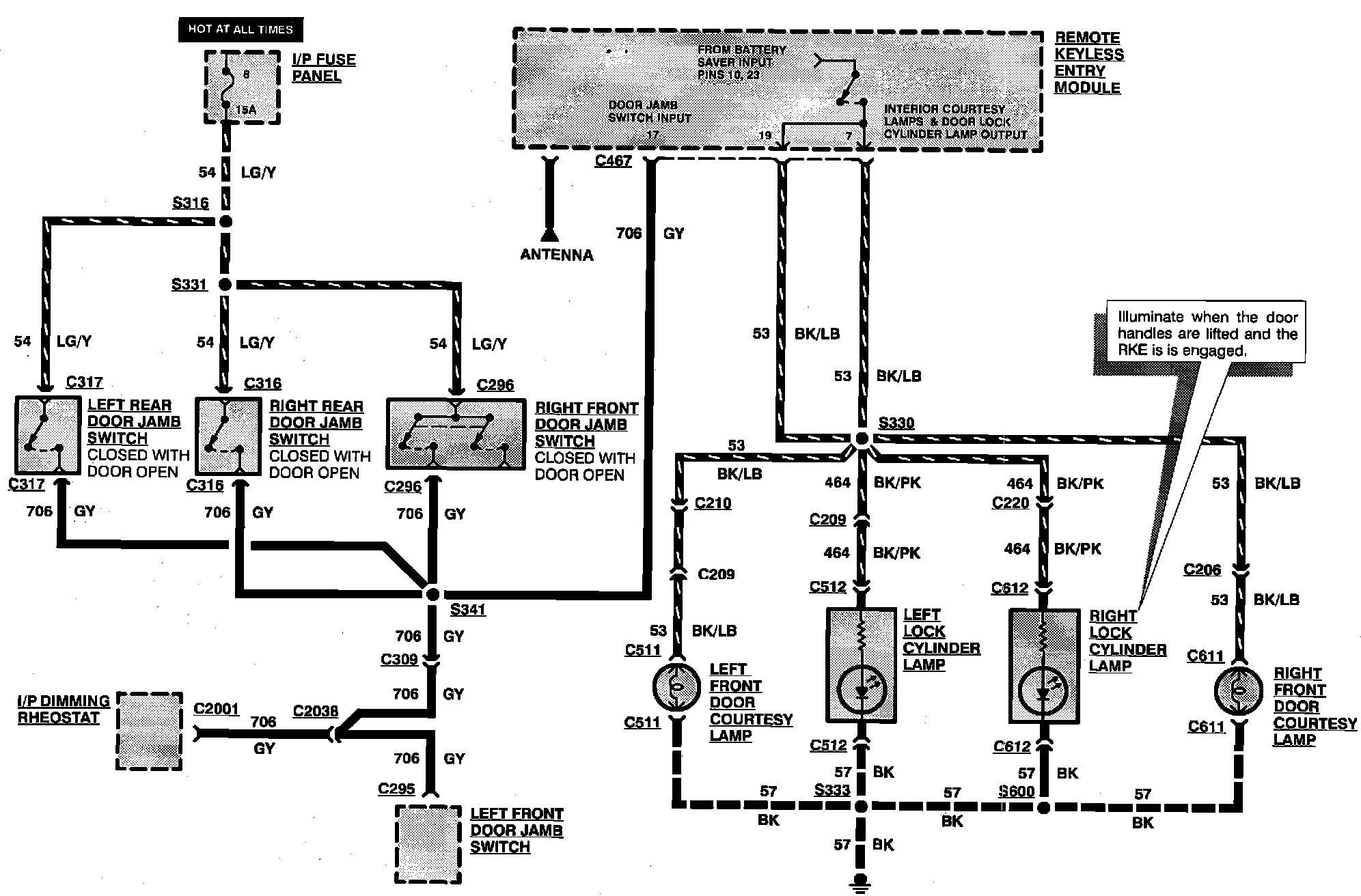

Remote/Keyless Entry:

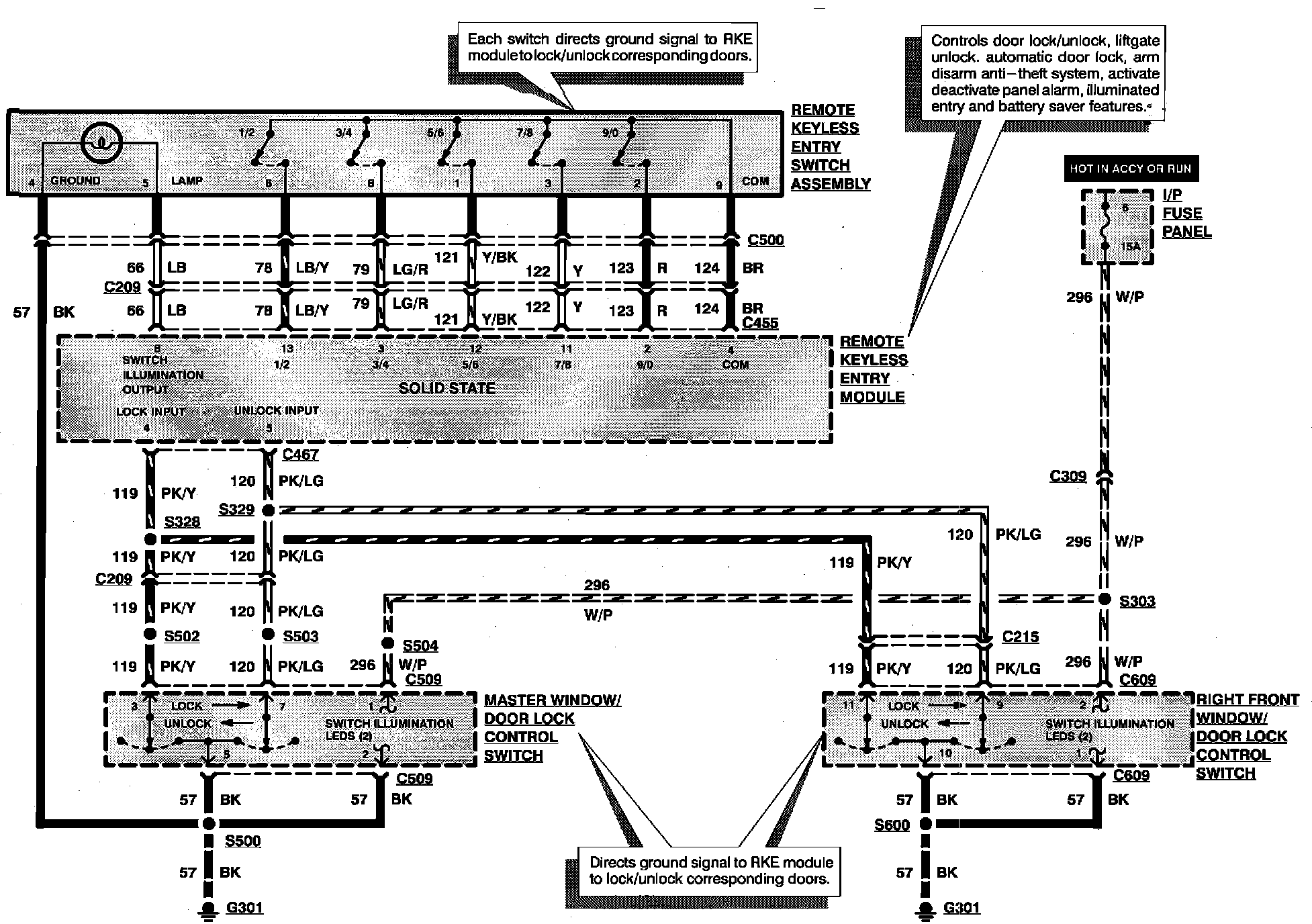

Remote/Keyless Entry:

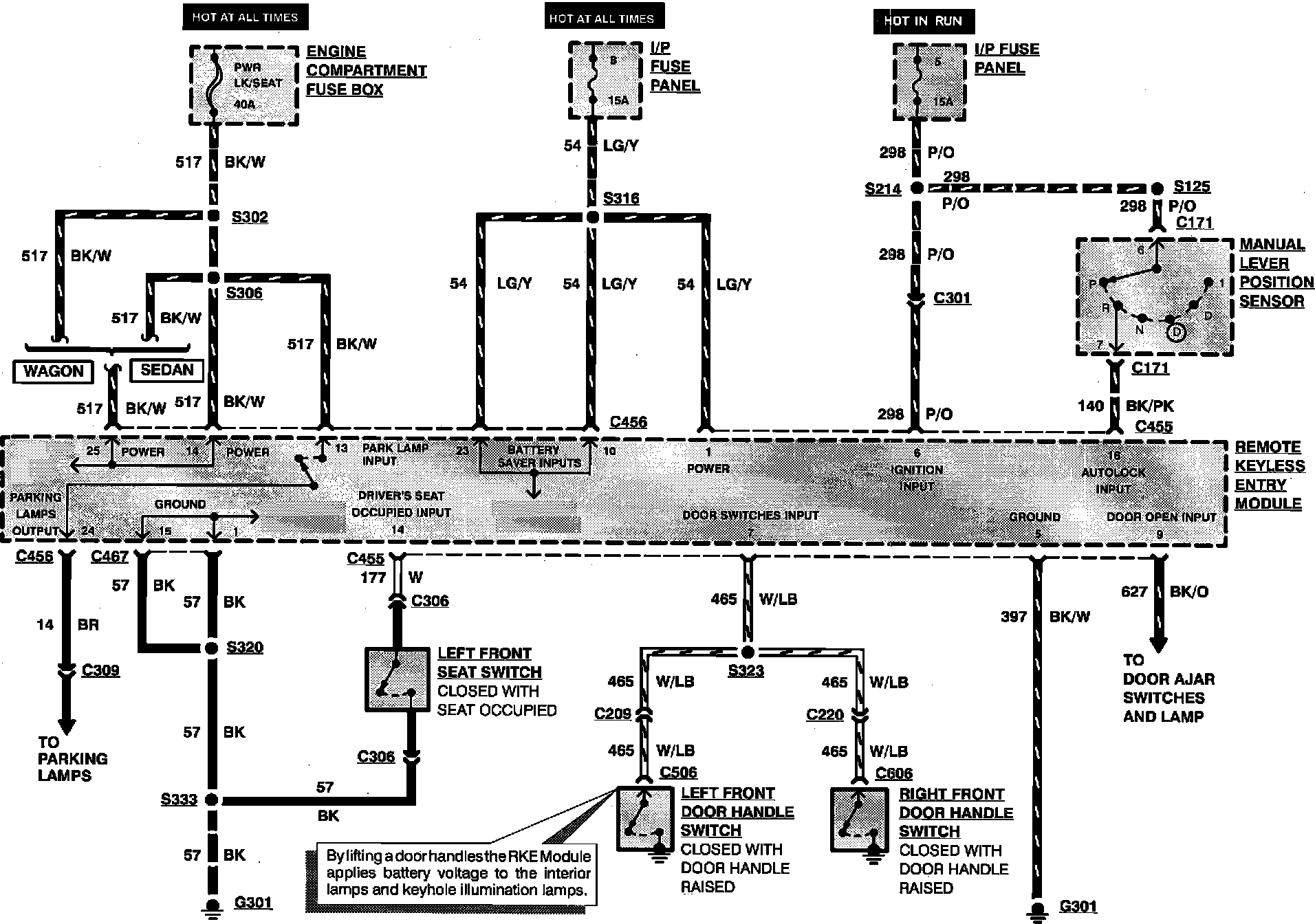

Remote/Keyless Entry:

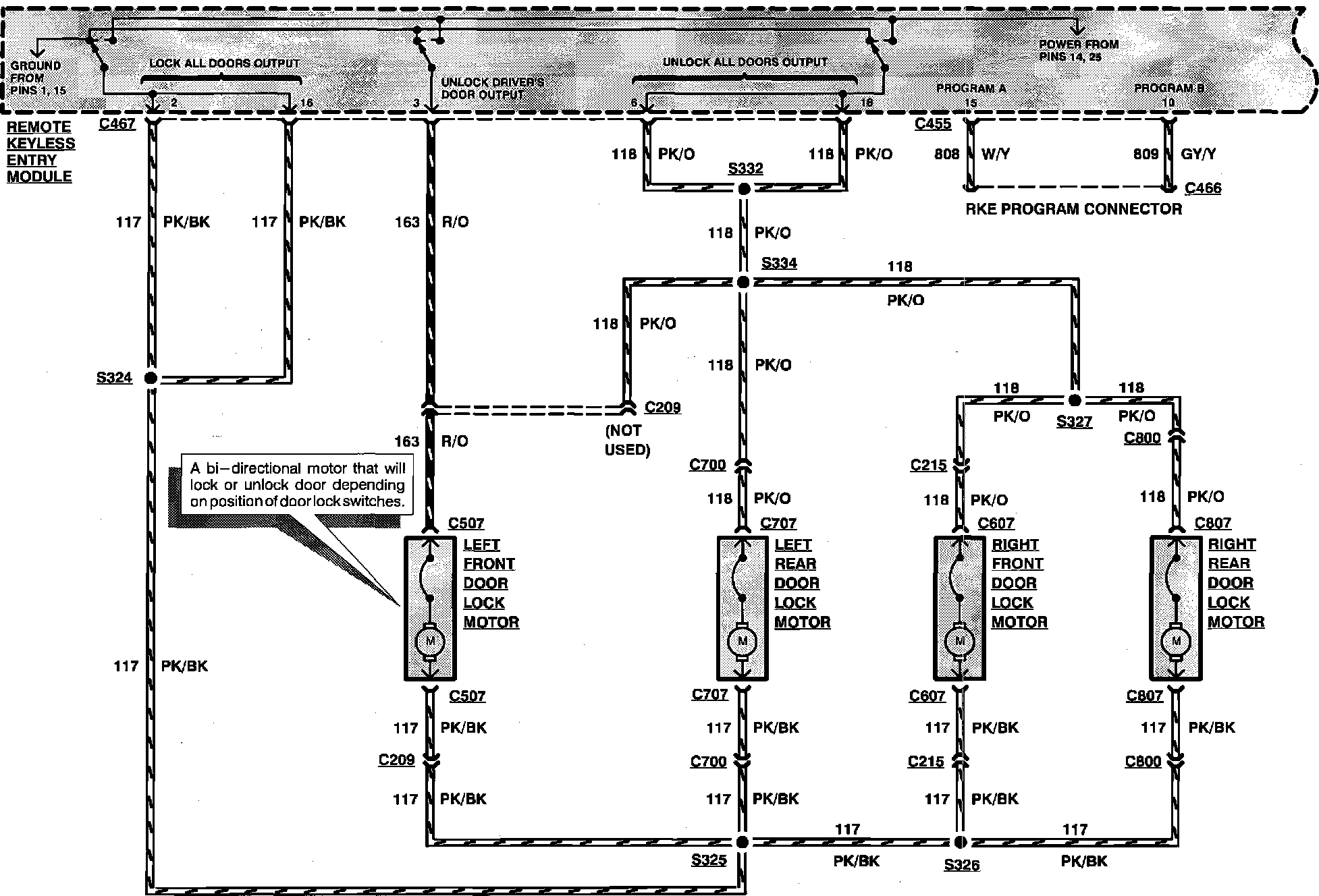

Remote/Keyless Entry:

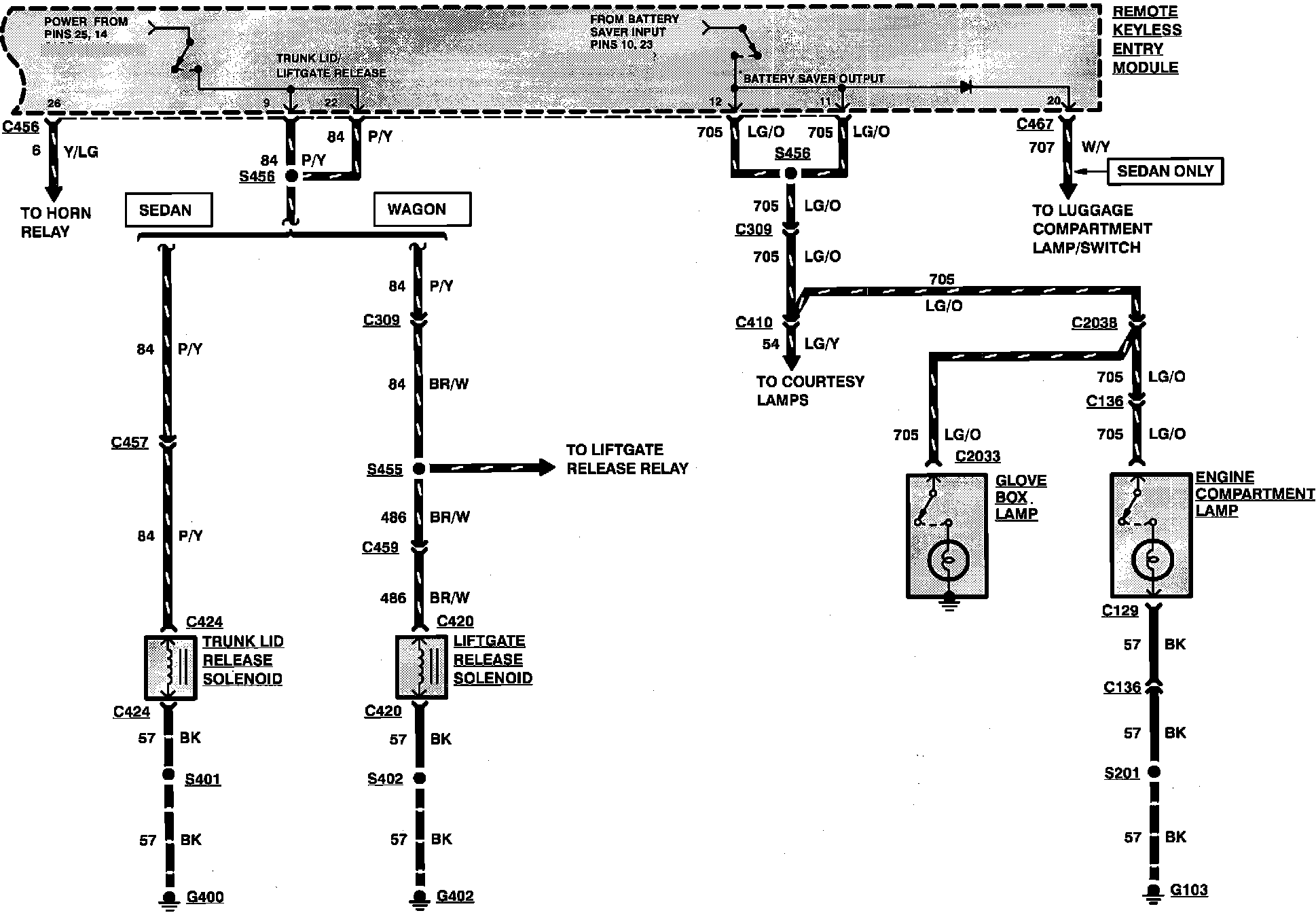

Remote/Keyless Entry:
