Component Locations
COMPONENT LOCATIONS
| Component |
Location |
| Circuit Breaker (20 A) |

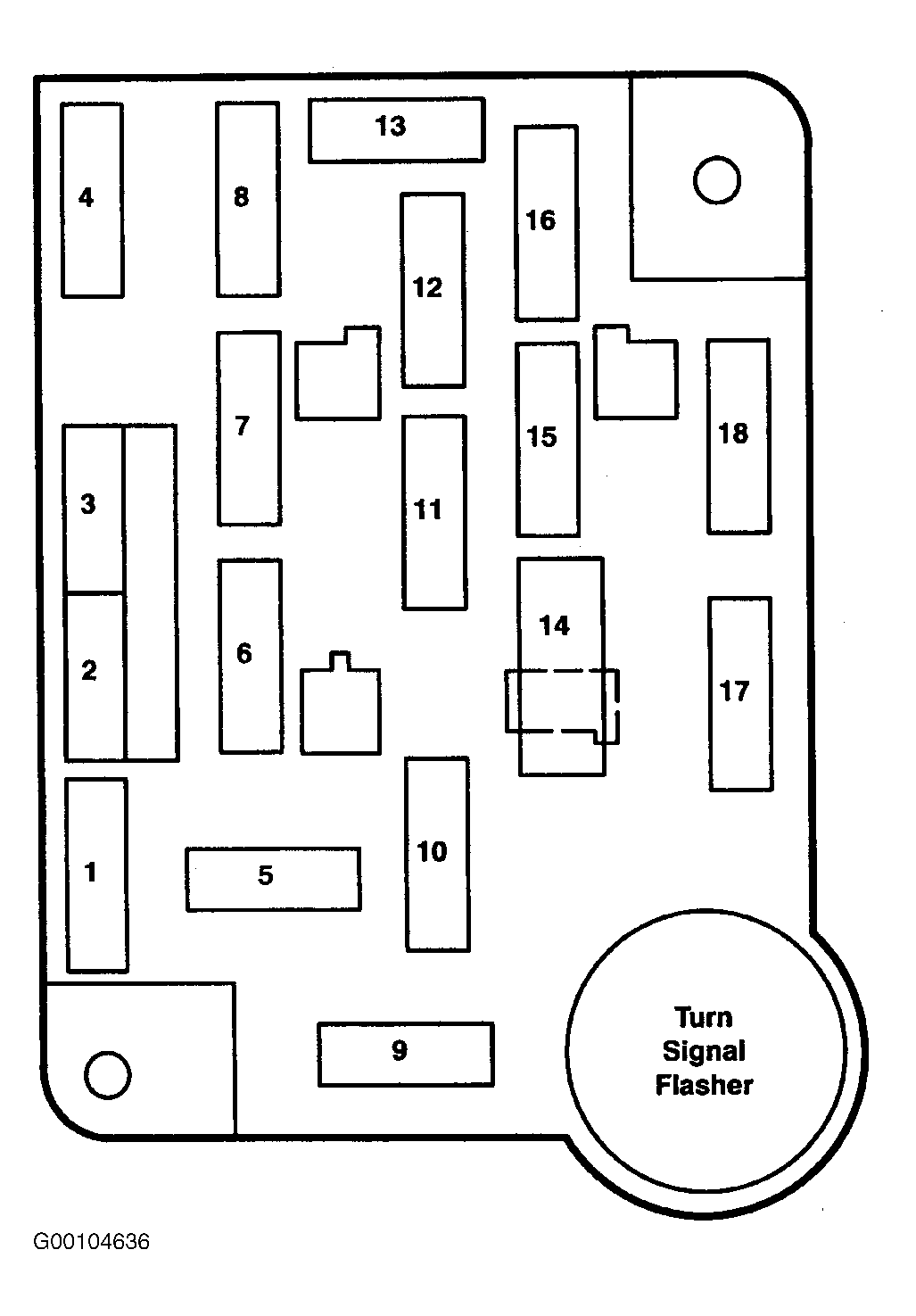

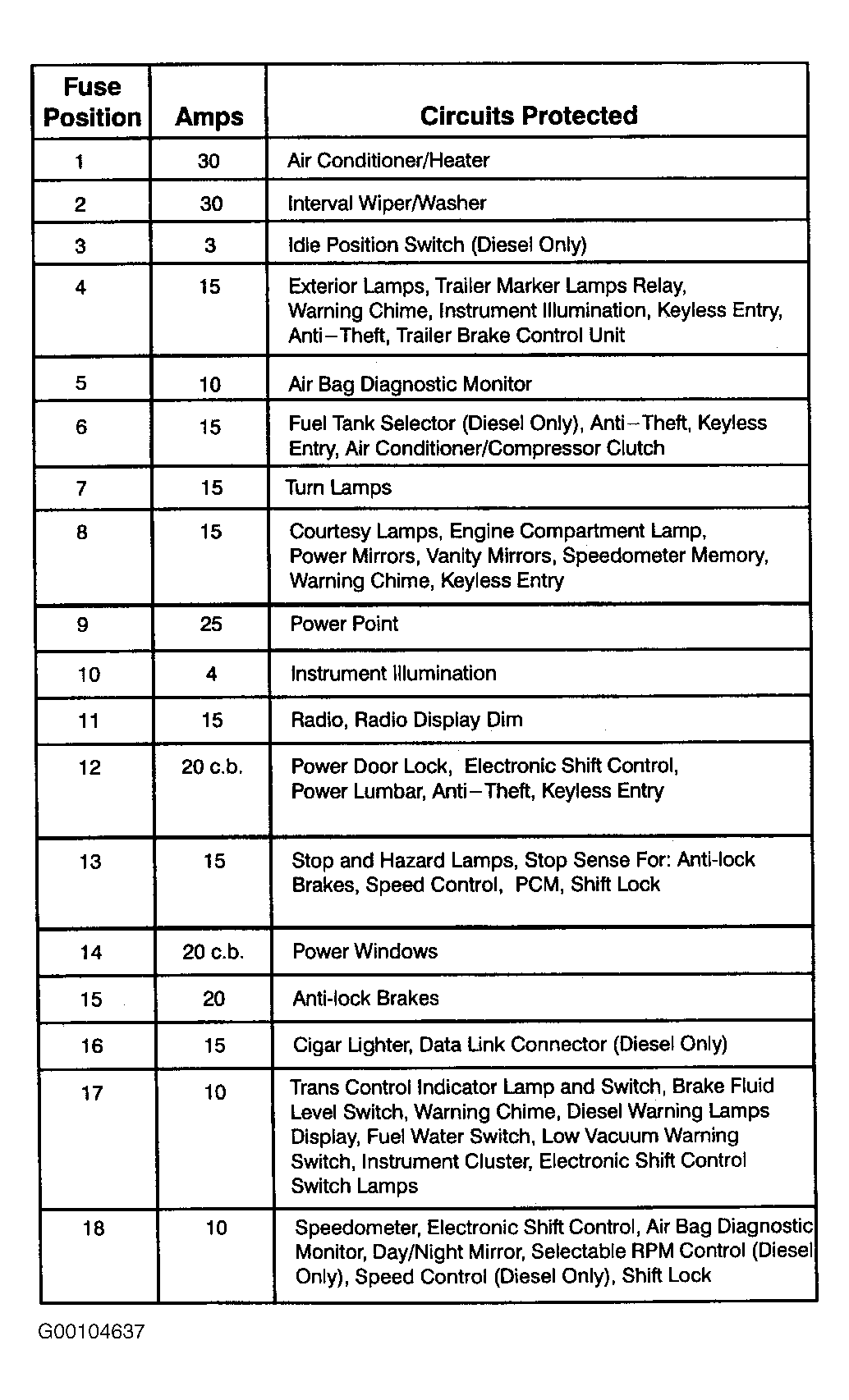

In Fuse Panel, Below Left Side Of Dashboard |
| Ground G201 |
Behind Bottom Of Left Kick Panel |
| Power Window Switch |
In Door Trim Panel |
| Power Window Motor |
Inside Door |
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
