Component Locations

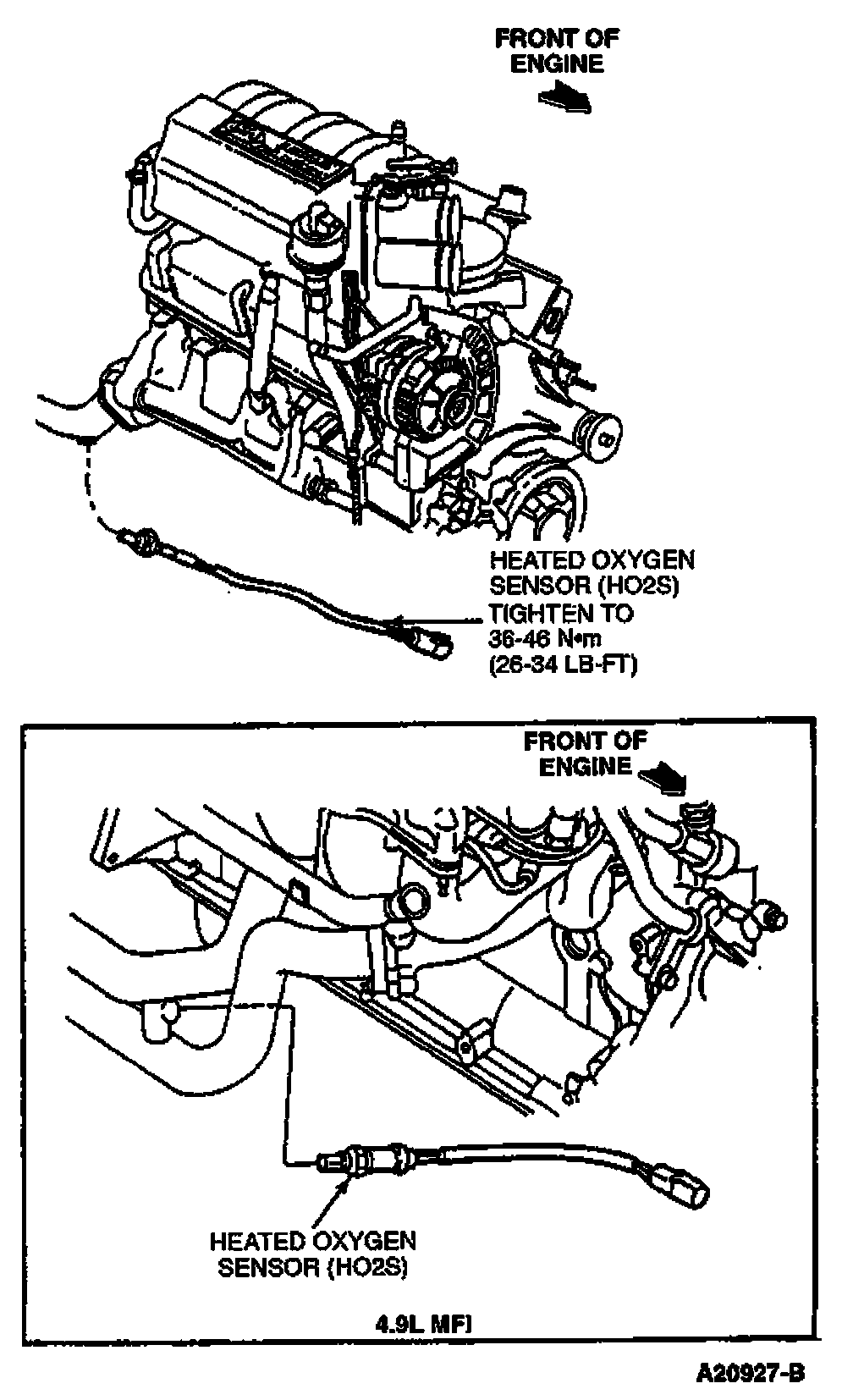

Heated Oxygen Sensor (HO2S), Gasoline Engines:

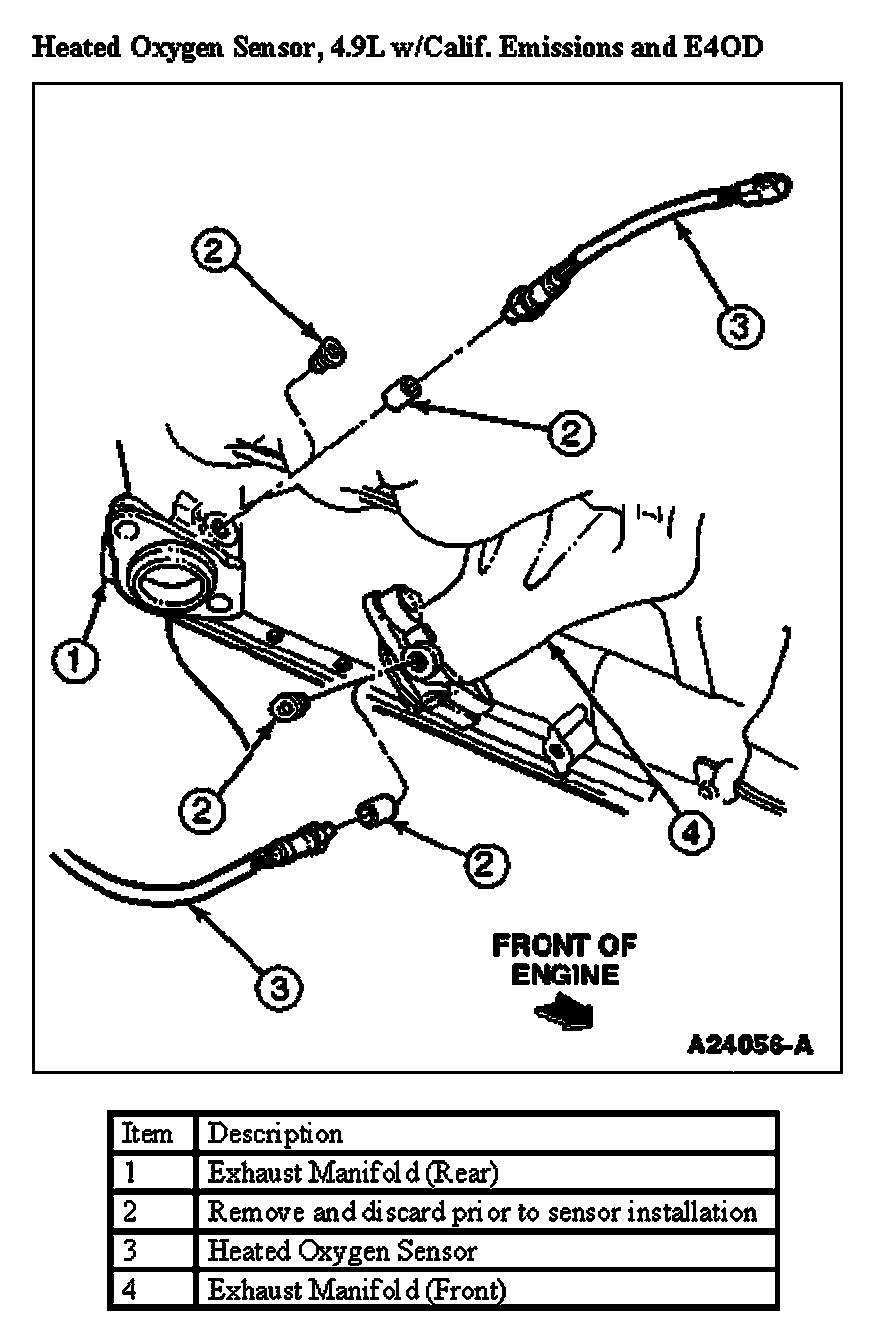

HO2S, 4.9L W/Calif. Emissions And E4OD:

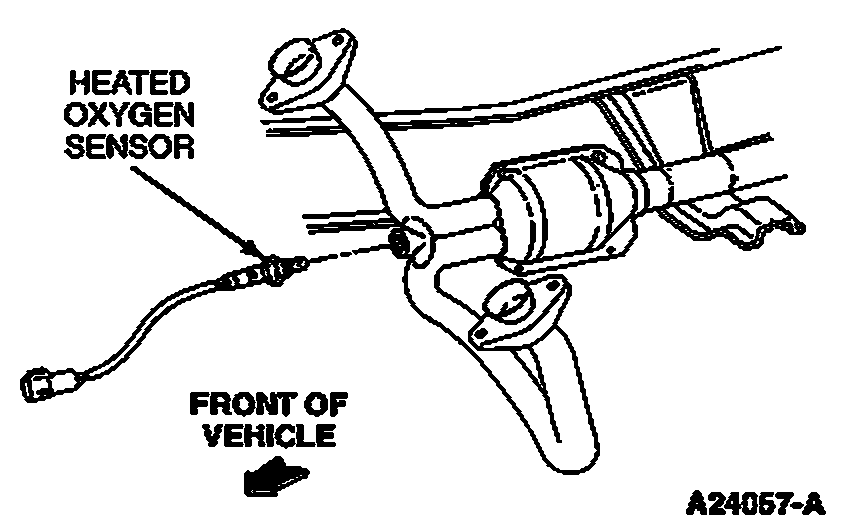

Heated Oxygen Sensor (HO2S), Gasoline Engines:

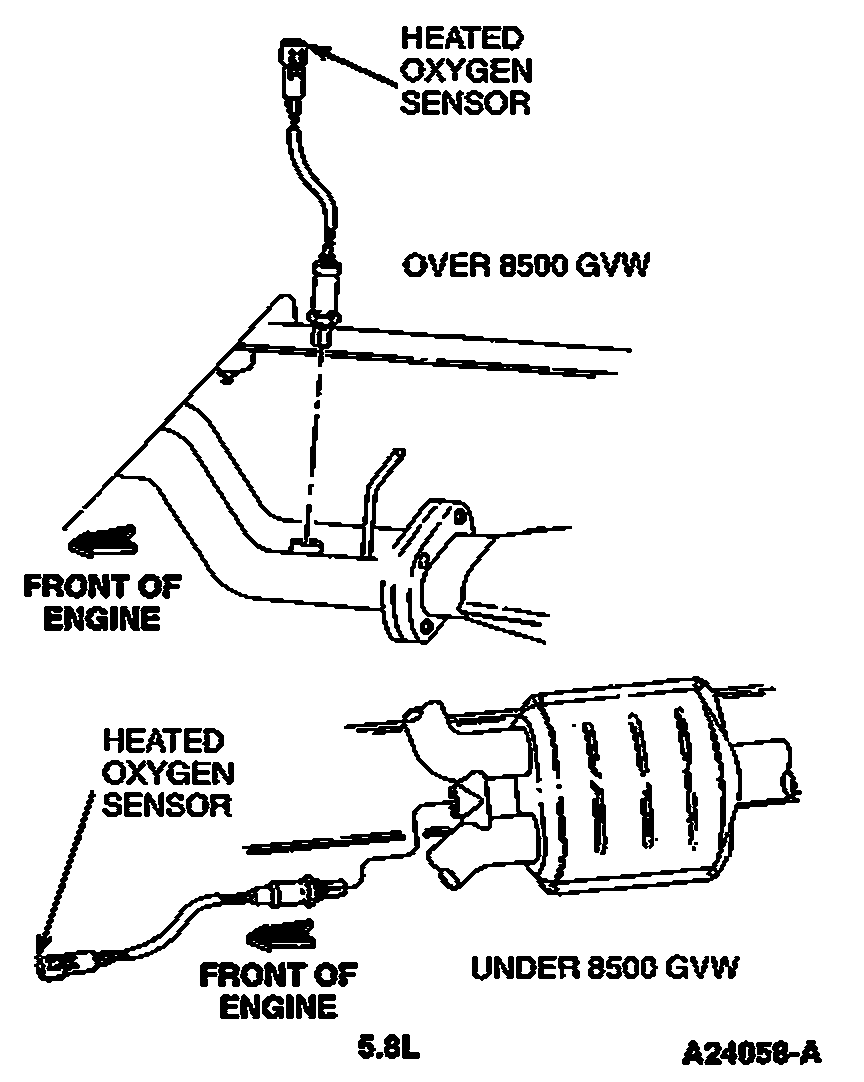

Heated Oxygen Sensor (HO2S), 5.8L Engines:
