Engine Control Module

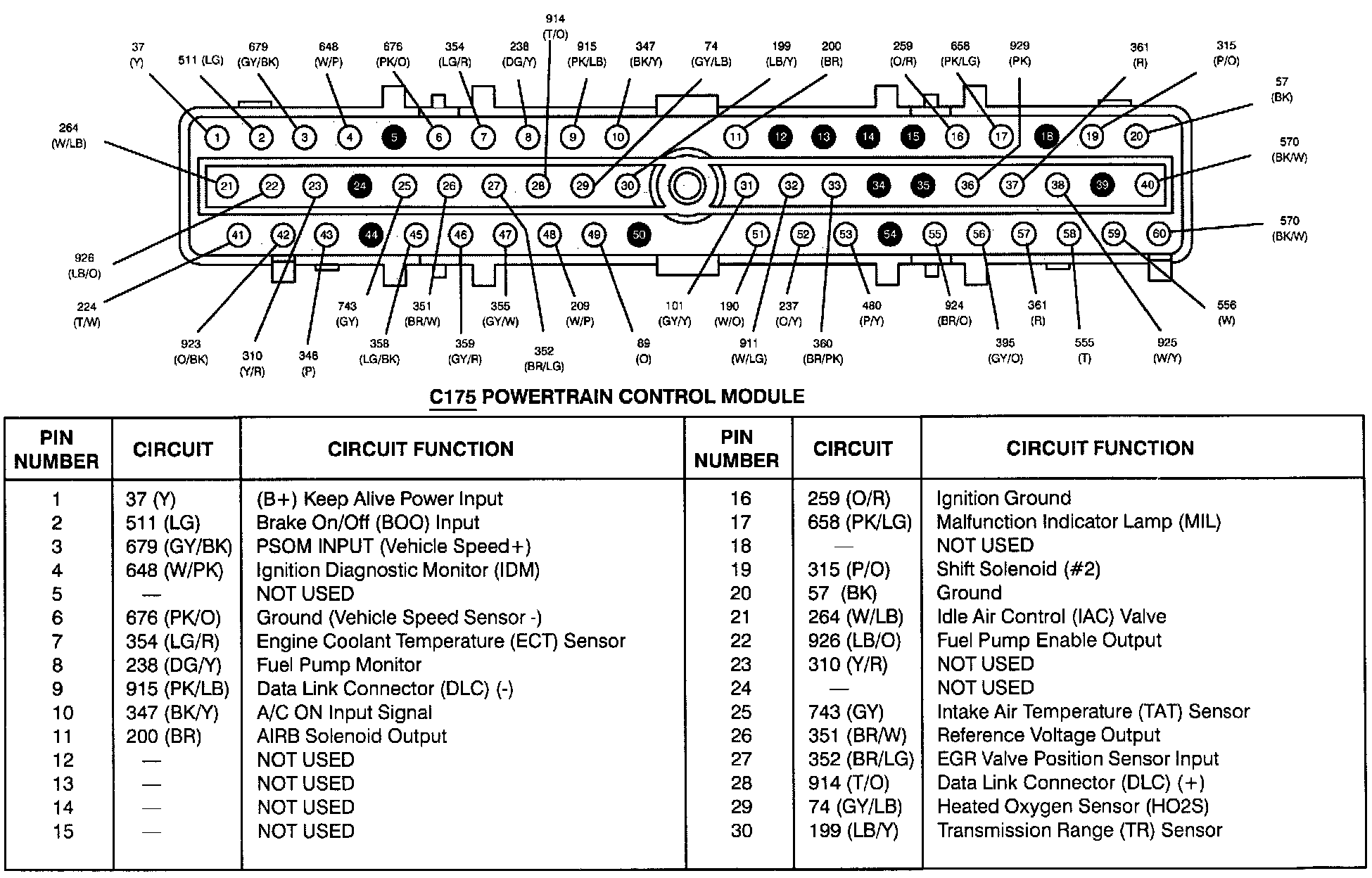

Powertrain Control Module (Part 1 Of 2):

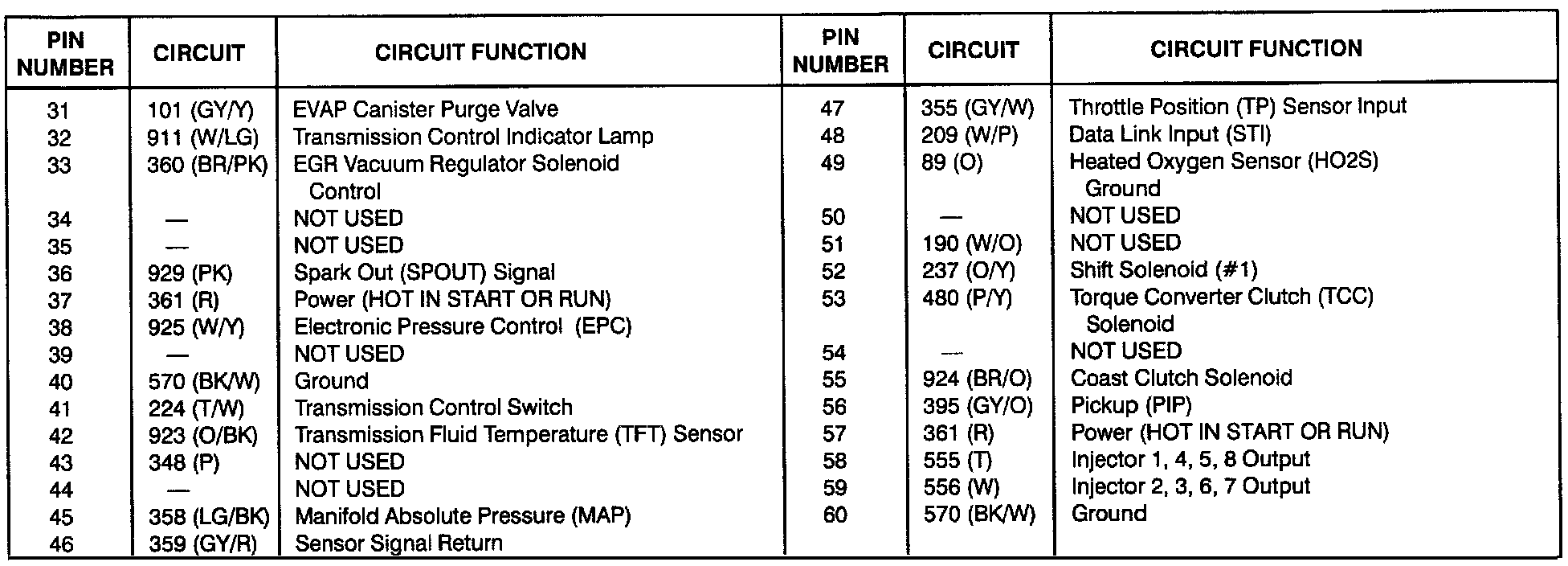

Powertrain Control Module (Part 2 Of 2):
