Keyless Entry Module

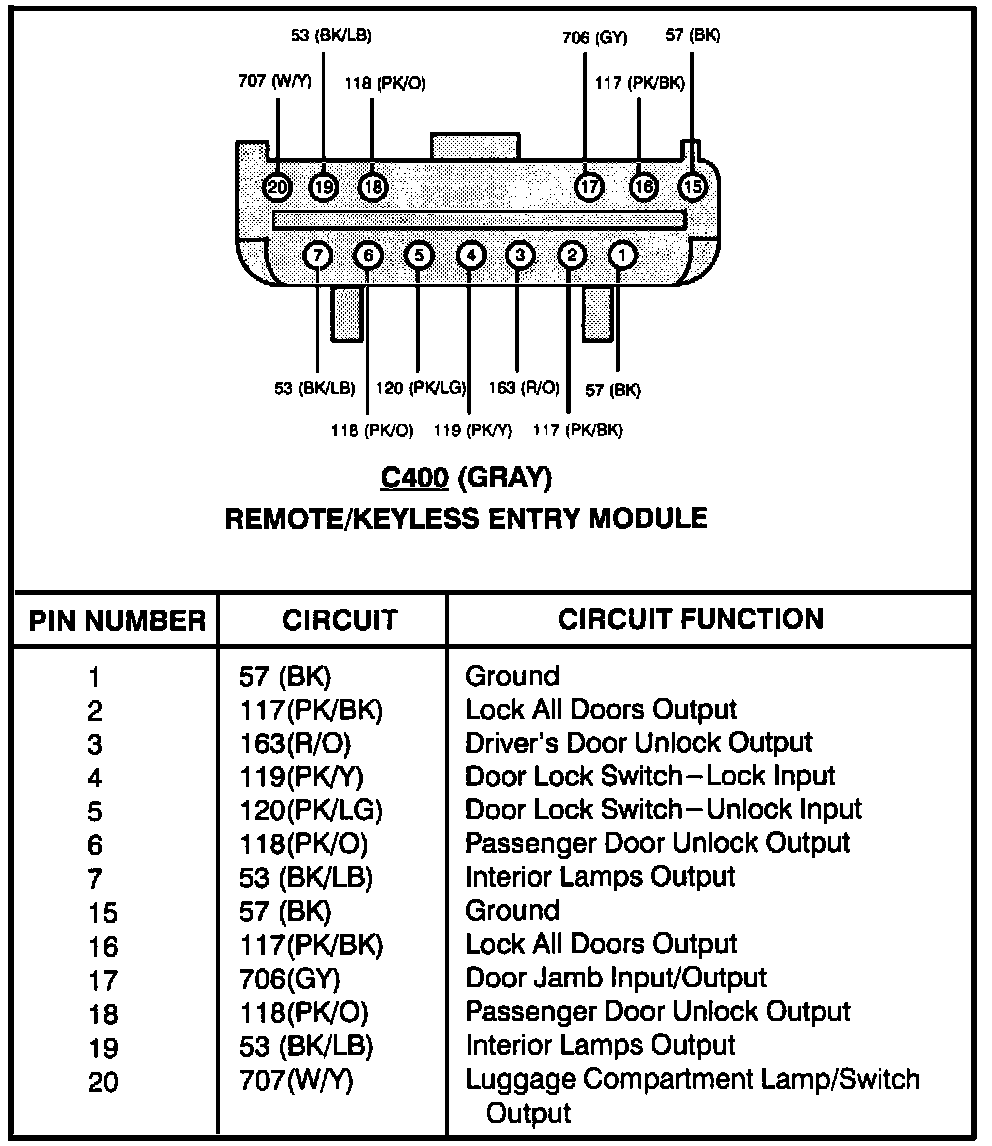

Remote/Keyless Entry Module (C400):

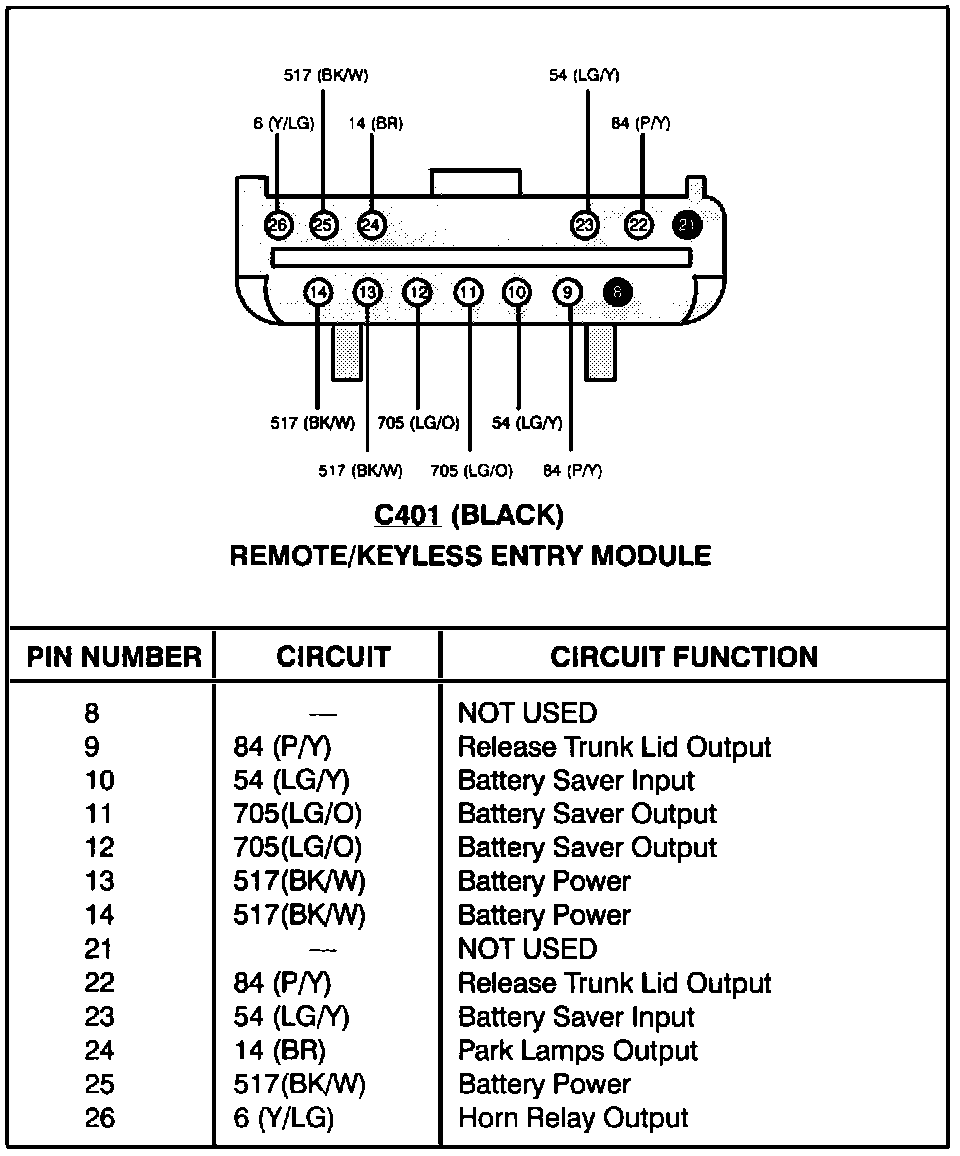

Remote/Keyless Entry Module (C401):

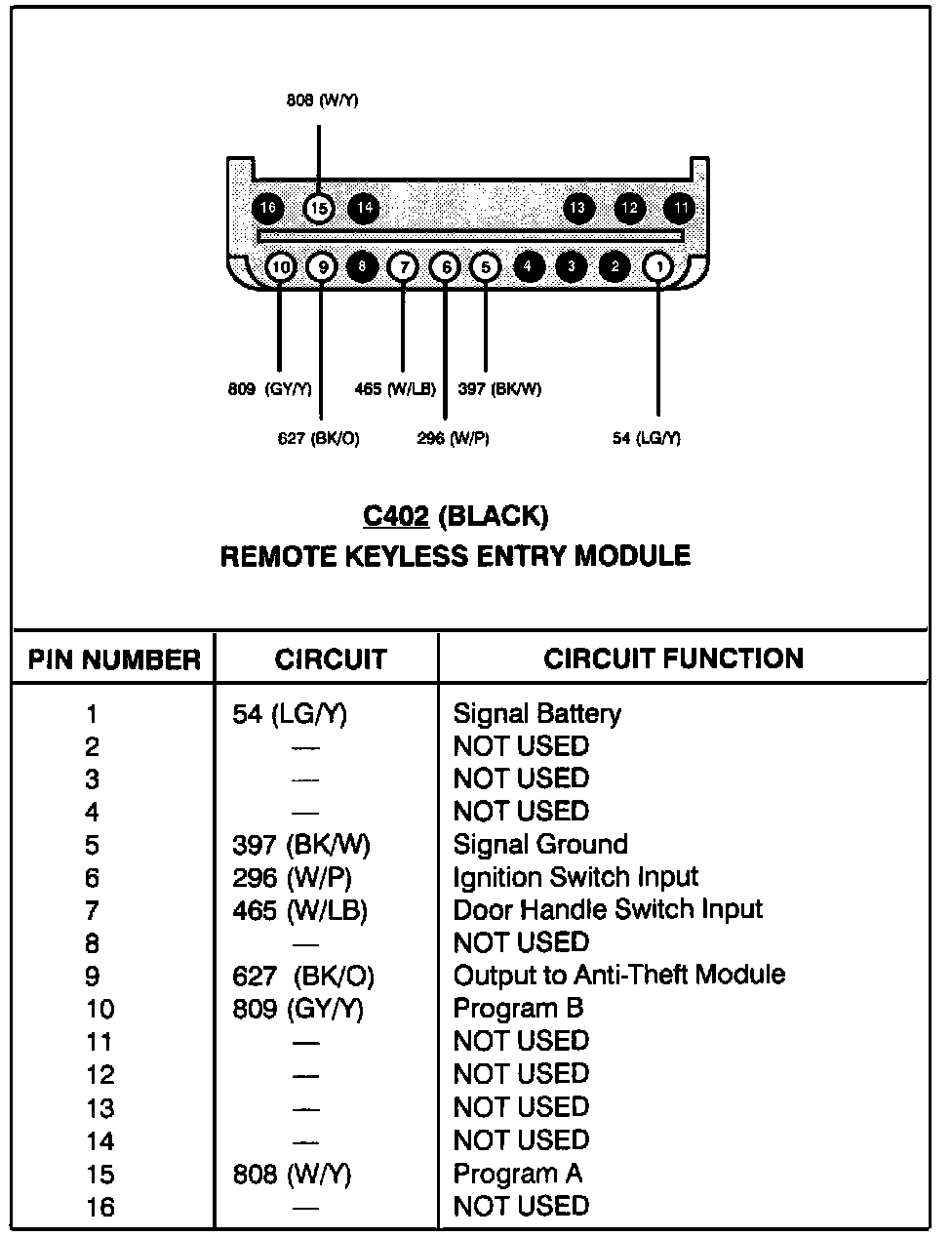

Remote/Keyless Entry Module (C402):
