Engine Compartment Fuse/Relay Box

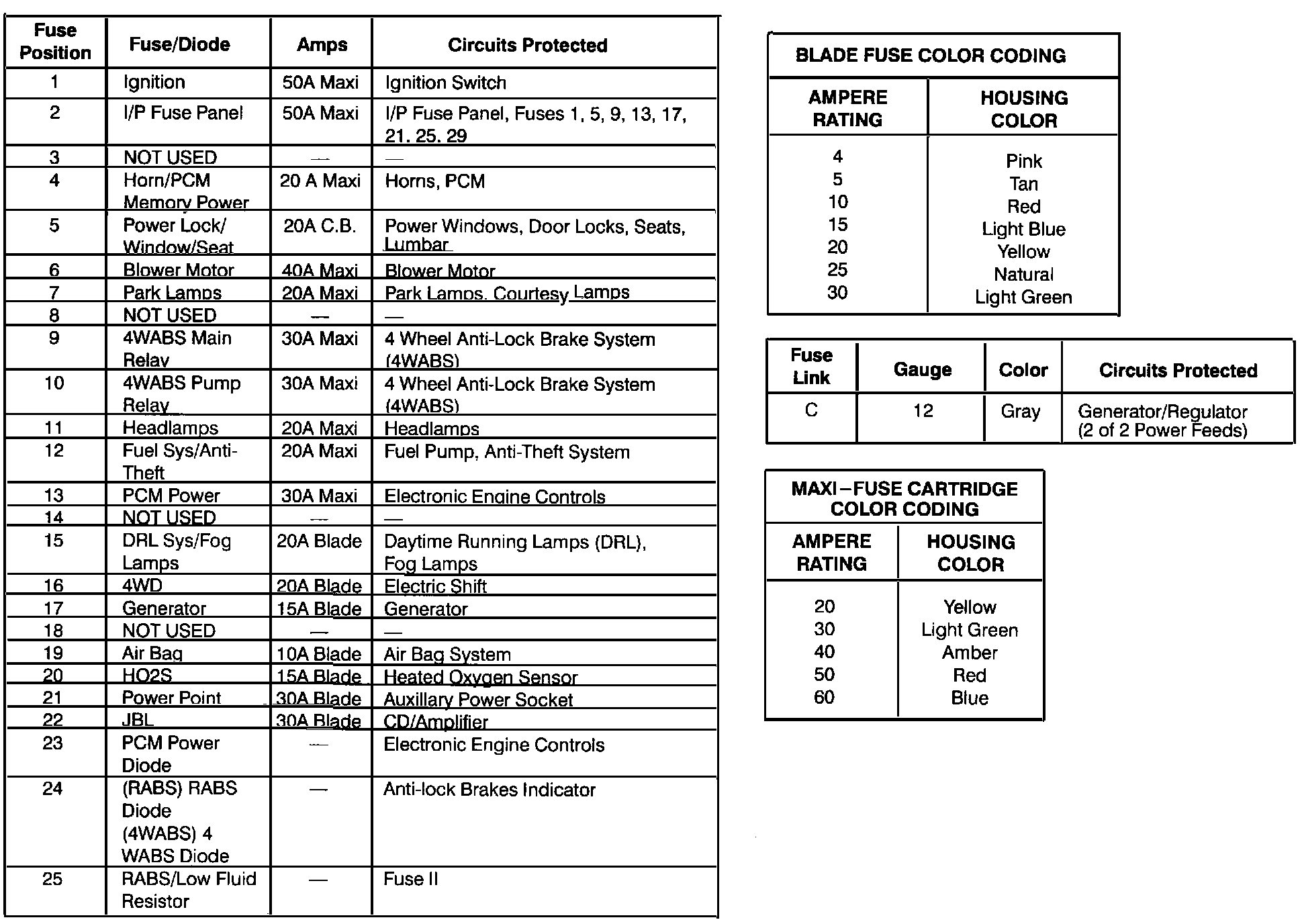

Fuse Panel/Distribution Box:



Engine Compartment Fuse/Relay Box (Part 2 Of 2):
