Fuse 6

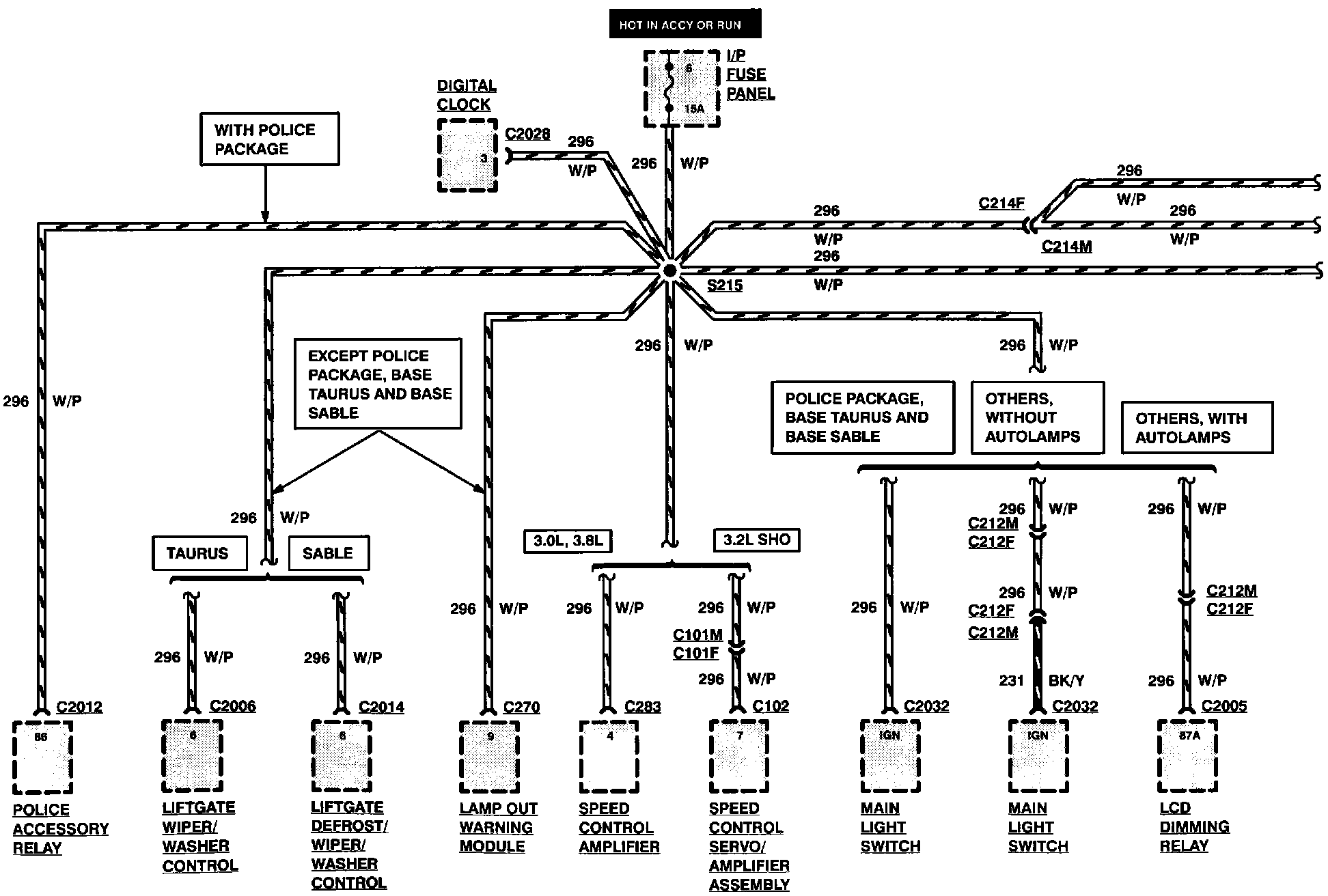

Fuse 6 - protects the following circuits:
^ Lamp Out Warning
^ Courtesy Lamps
^ Police Accessory Relay

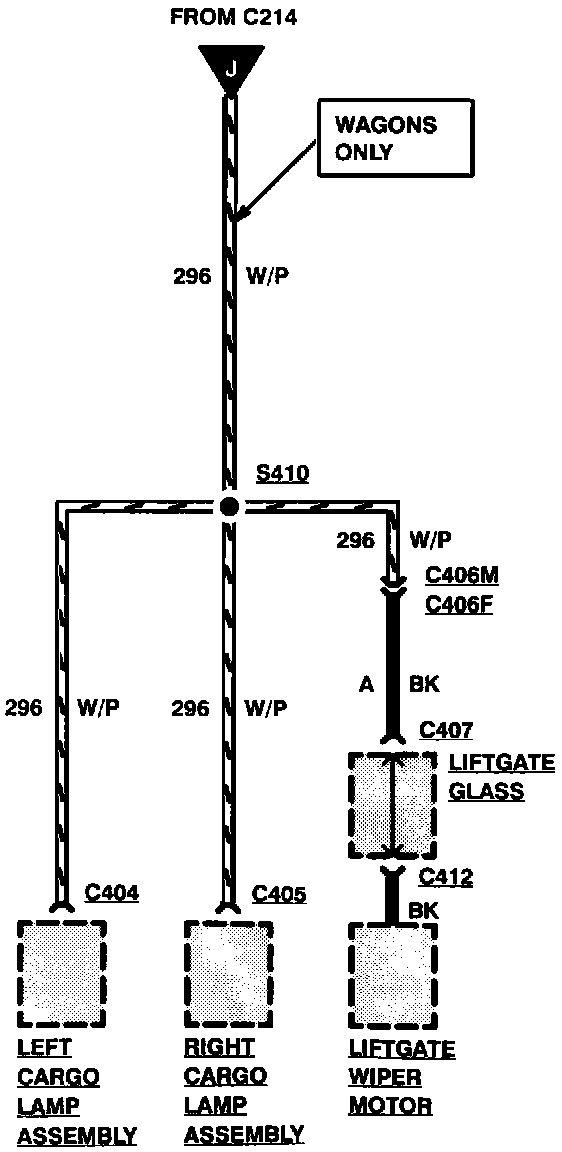

^ Liftgate Window Wiper/Washer/Defrost

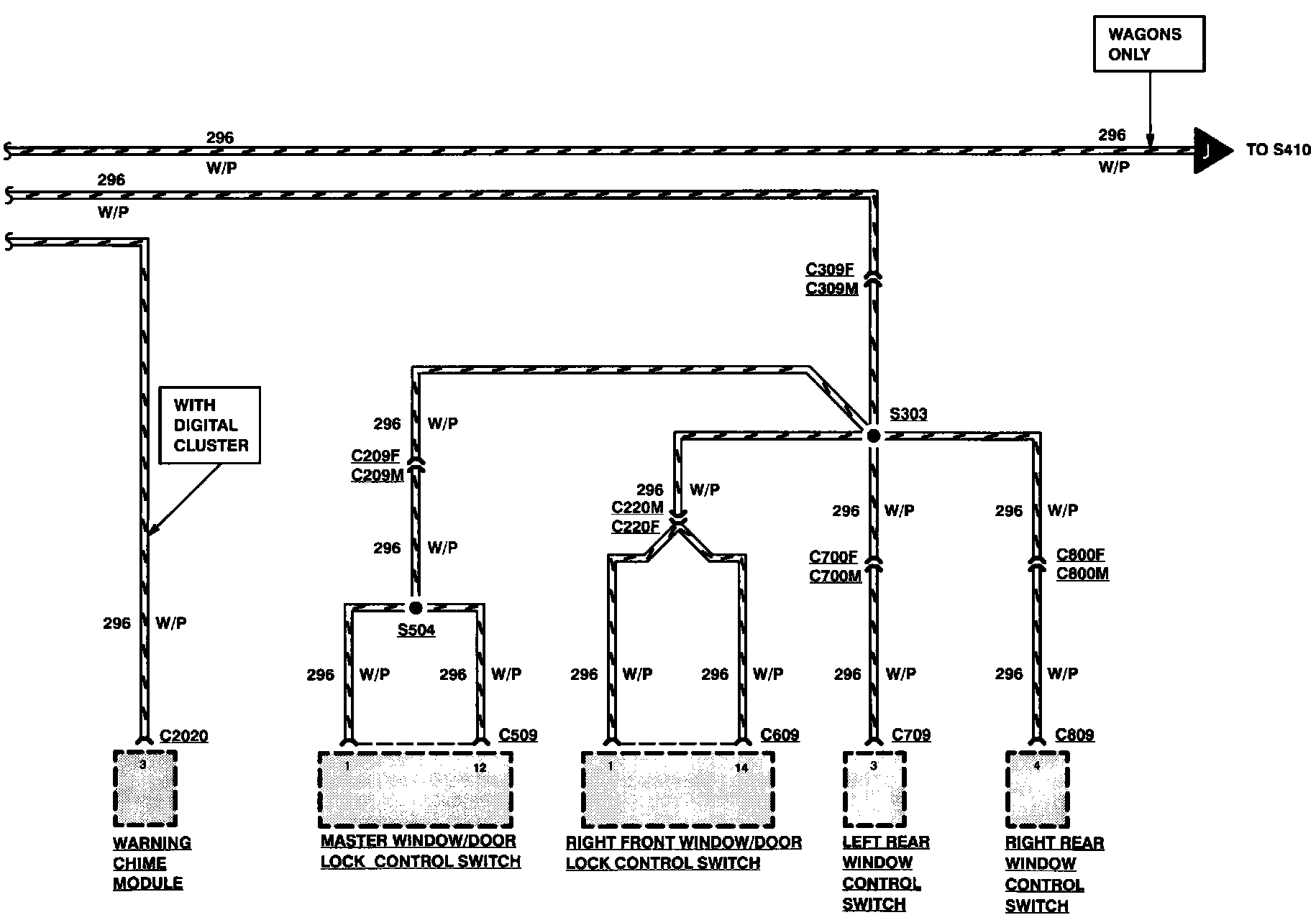

^ Power Windows
^ Speed Control Amplifier
^ Warning Chime

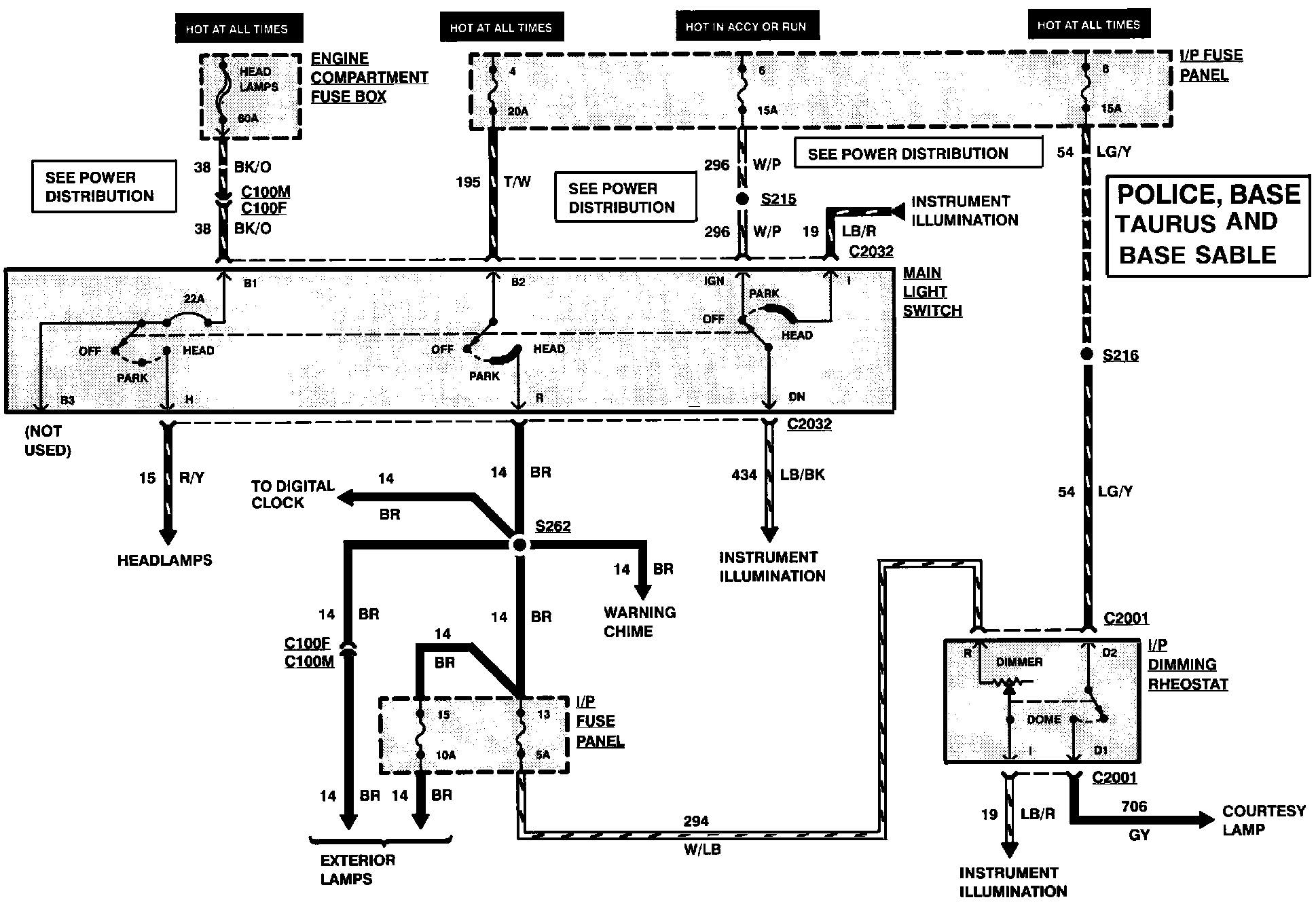

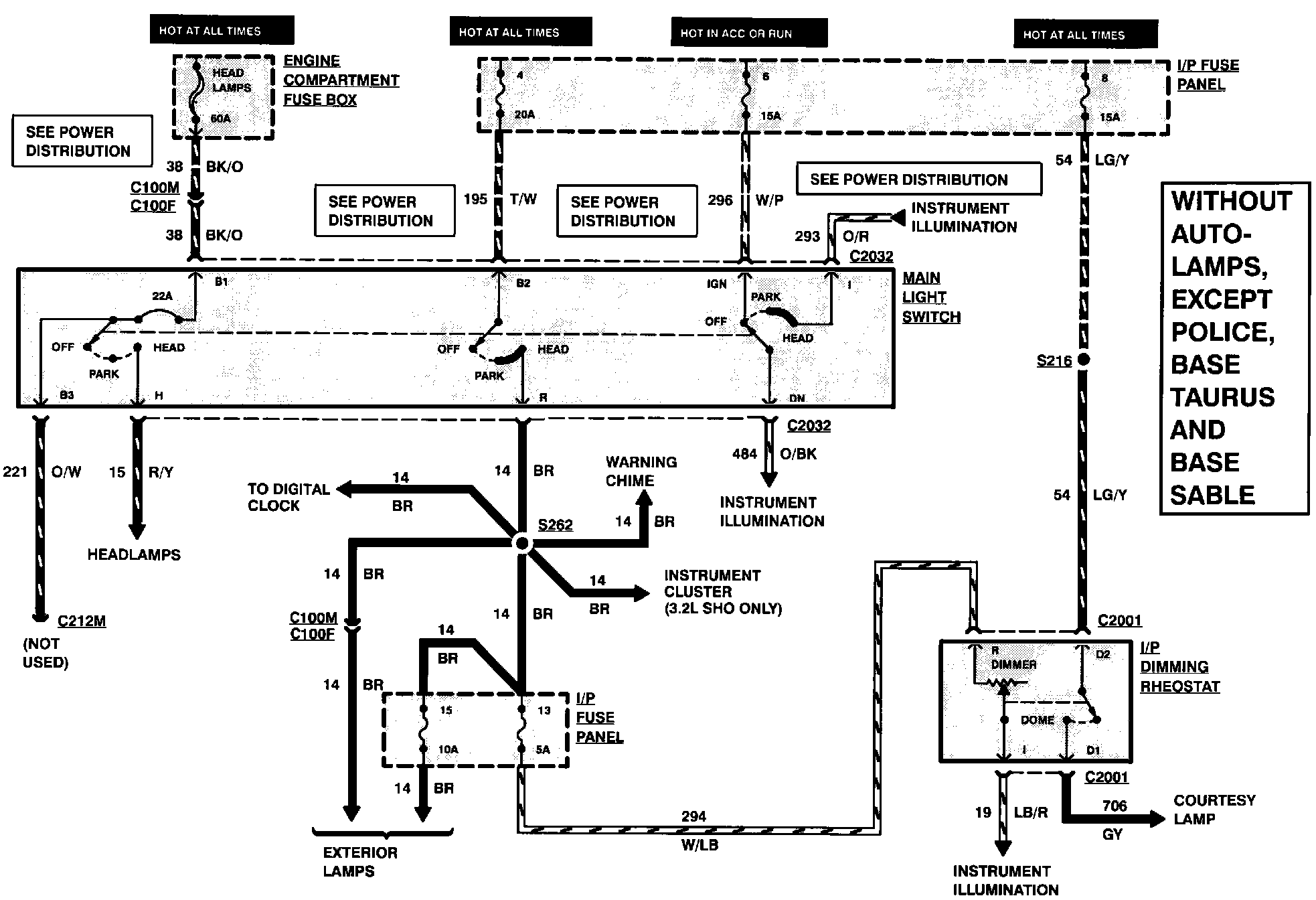

^ Main Light Switch
^ Liquid Crystal Display Dimming Relay
^ Digital Clock

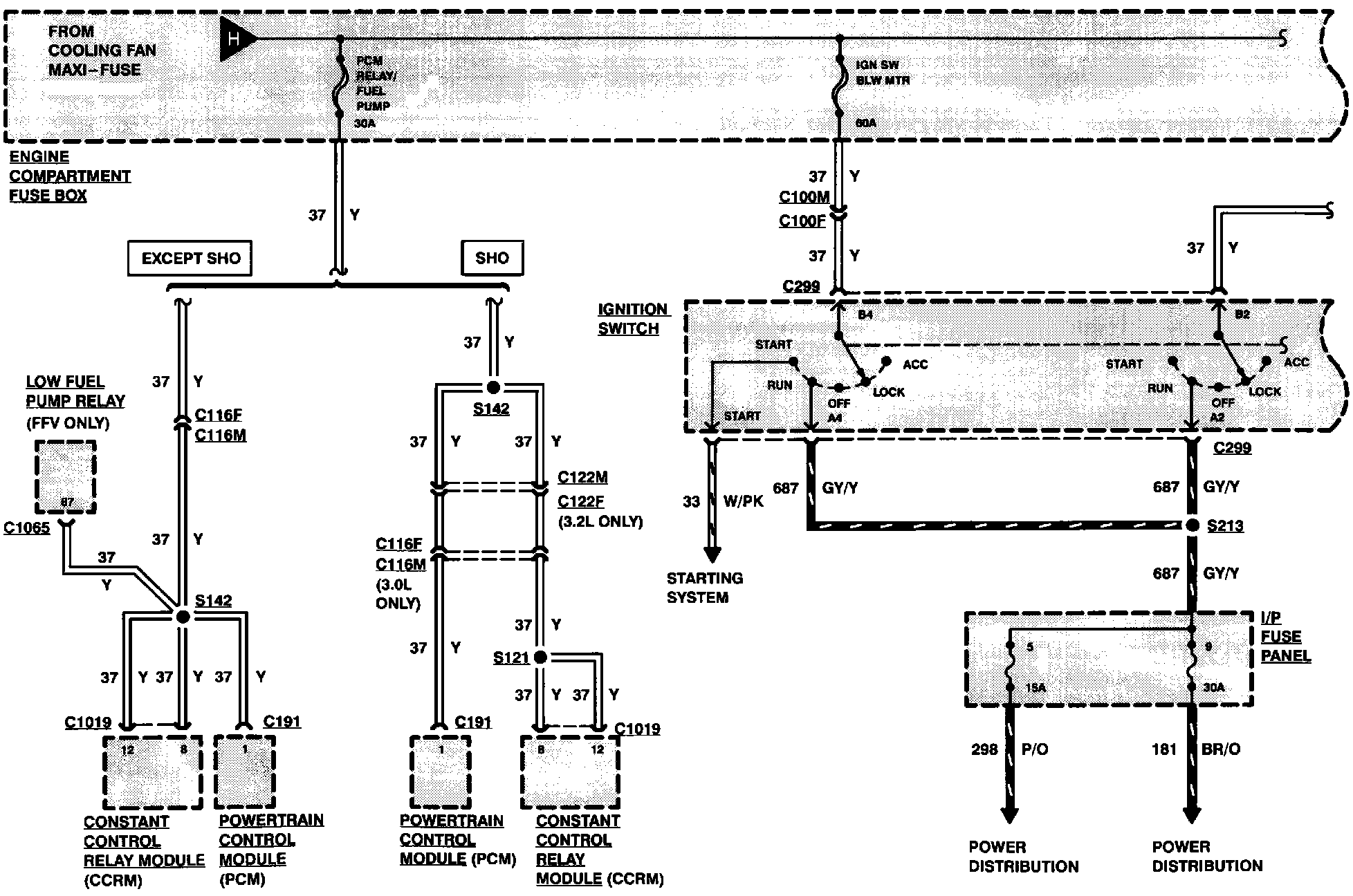

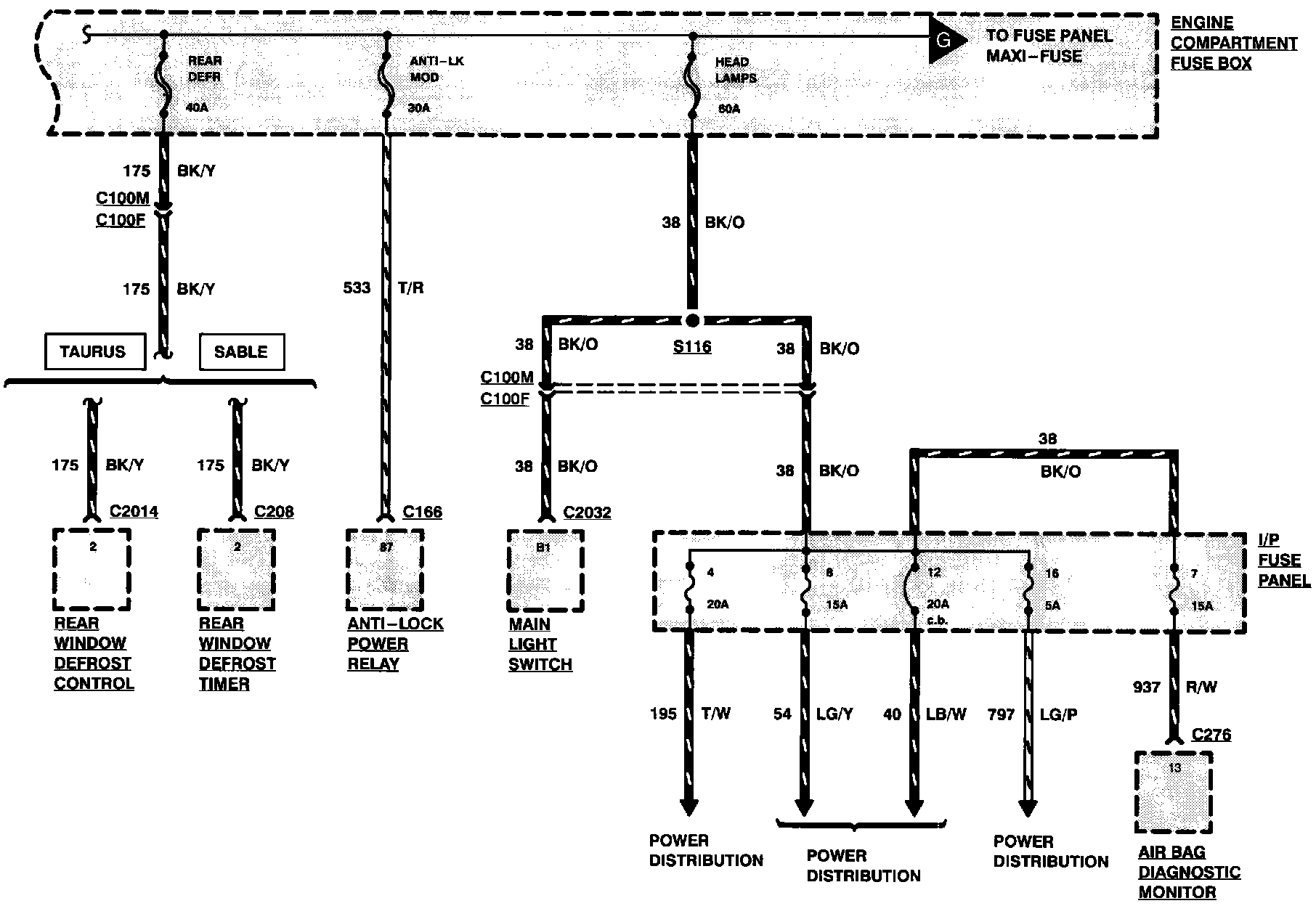

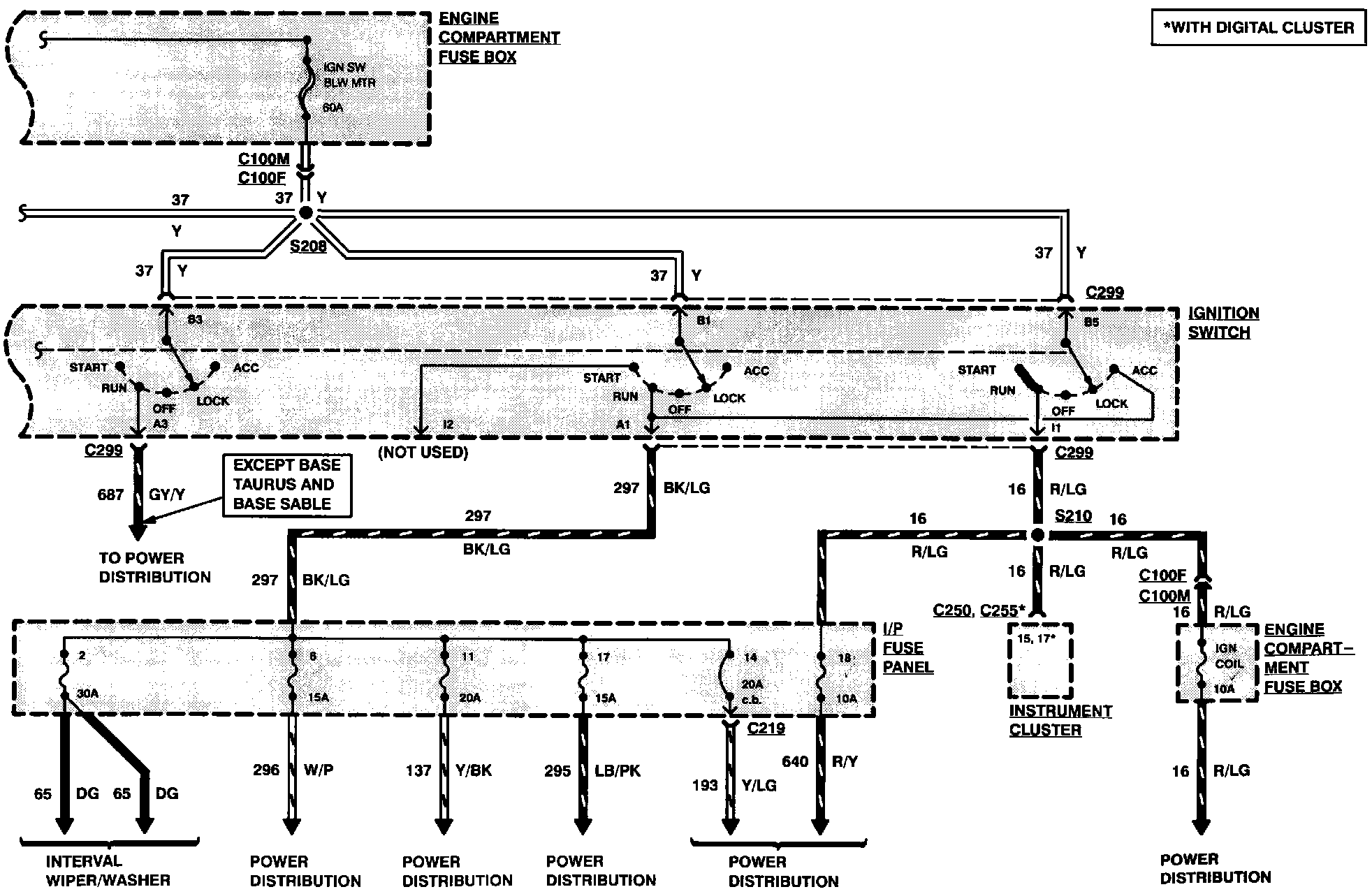

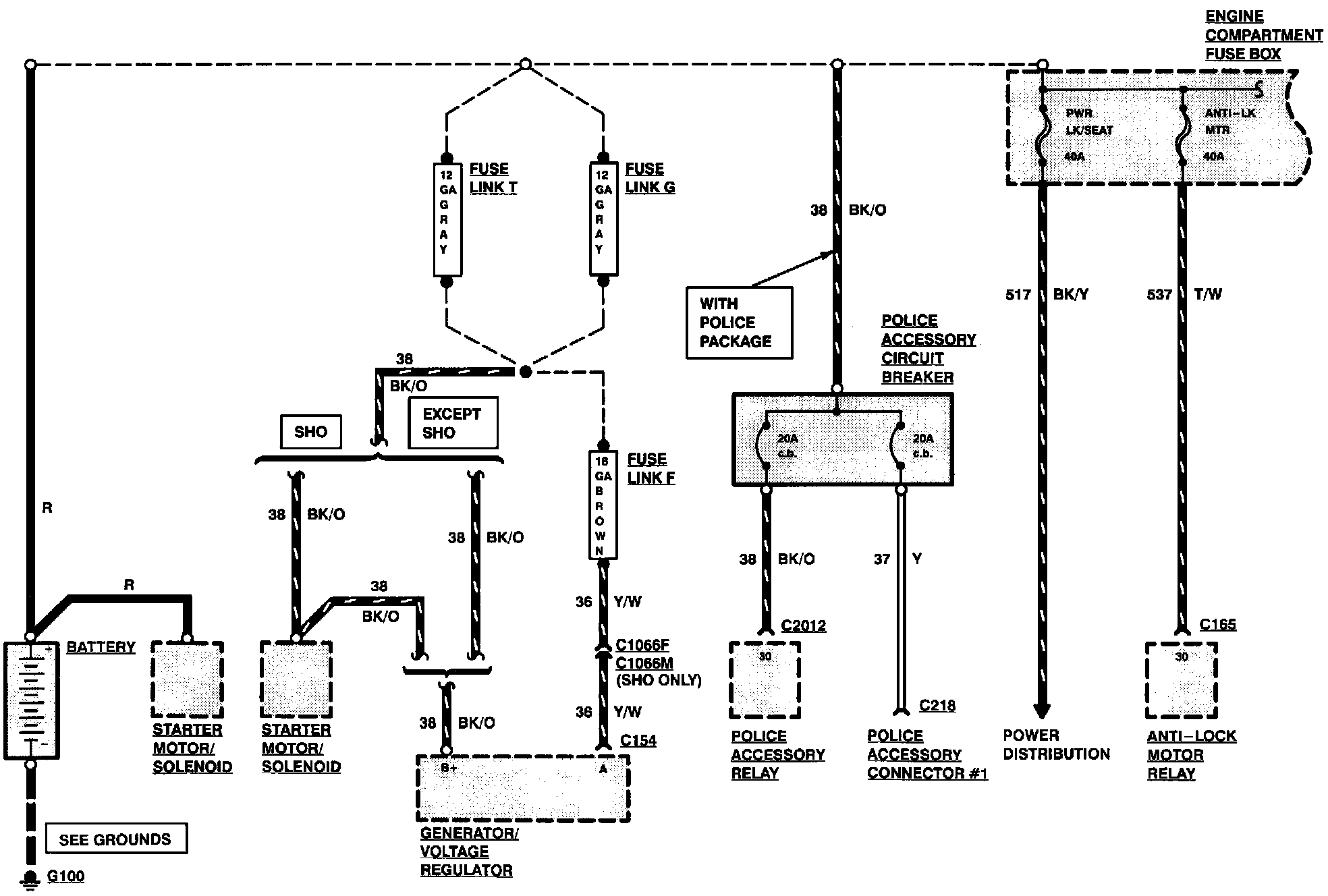

Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:
