Transmission Temperature Sensor/Switch, A/T

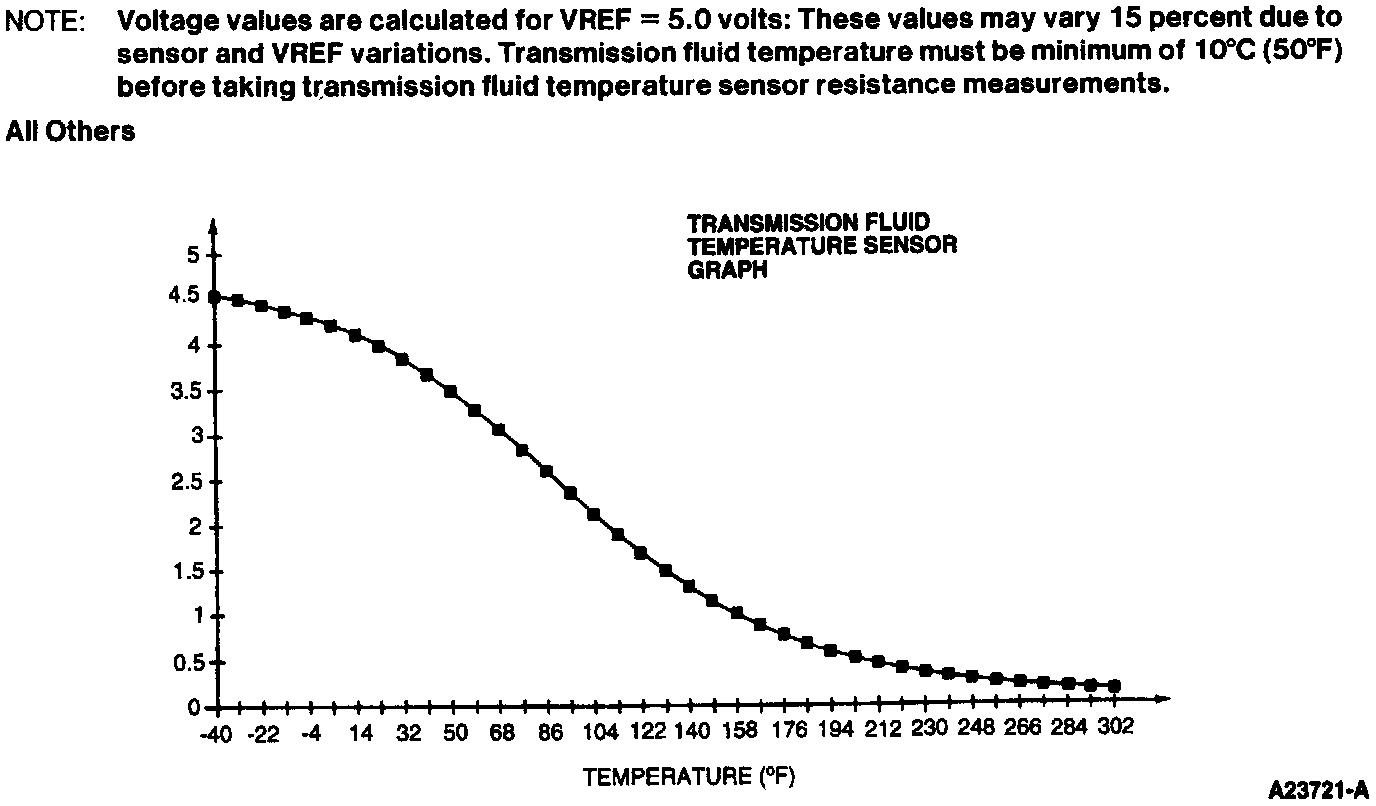

Sensor Output Graph:
TRANSMISSION FLUID TEMPERATURE SENSOR GRAPH

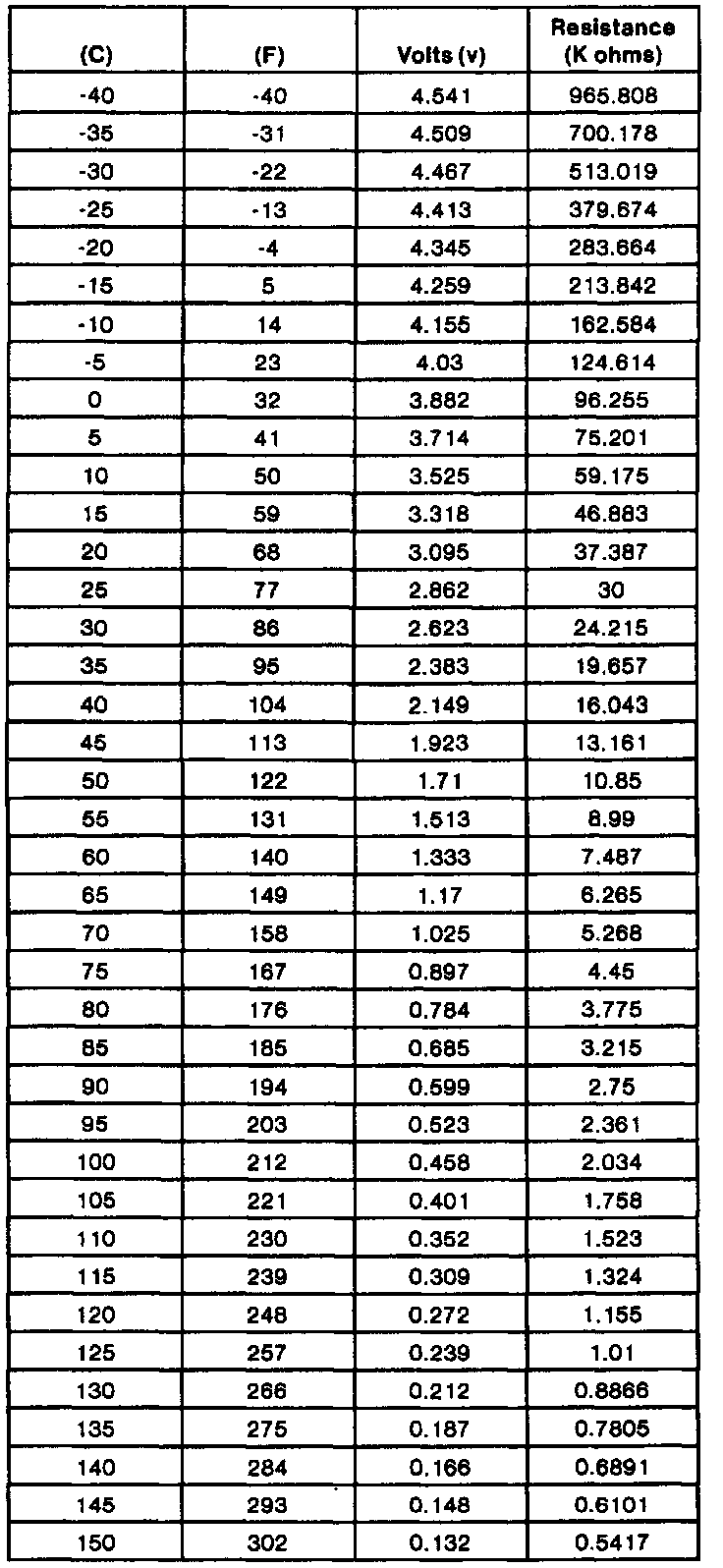

Sensor Output Graph:
TEMPERATURE/VOLTAGE/RESISTANCE TABLE
