Fuse HEADLAMPS

Fuse HEADLAMPS - protects the following circuits:
^ Headlamps
^ Fuse 4
^ Fuse 7
^ Fuse 8
^ Fuse 16
^ Circuit Breaker 12

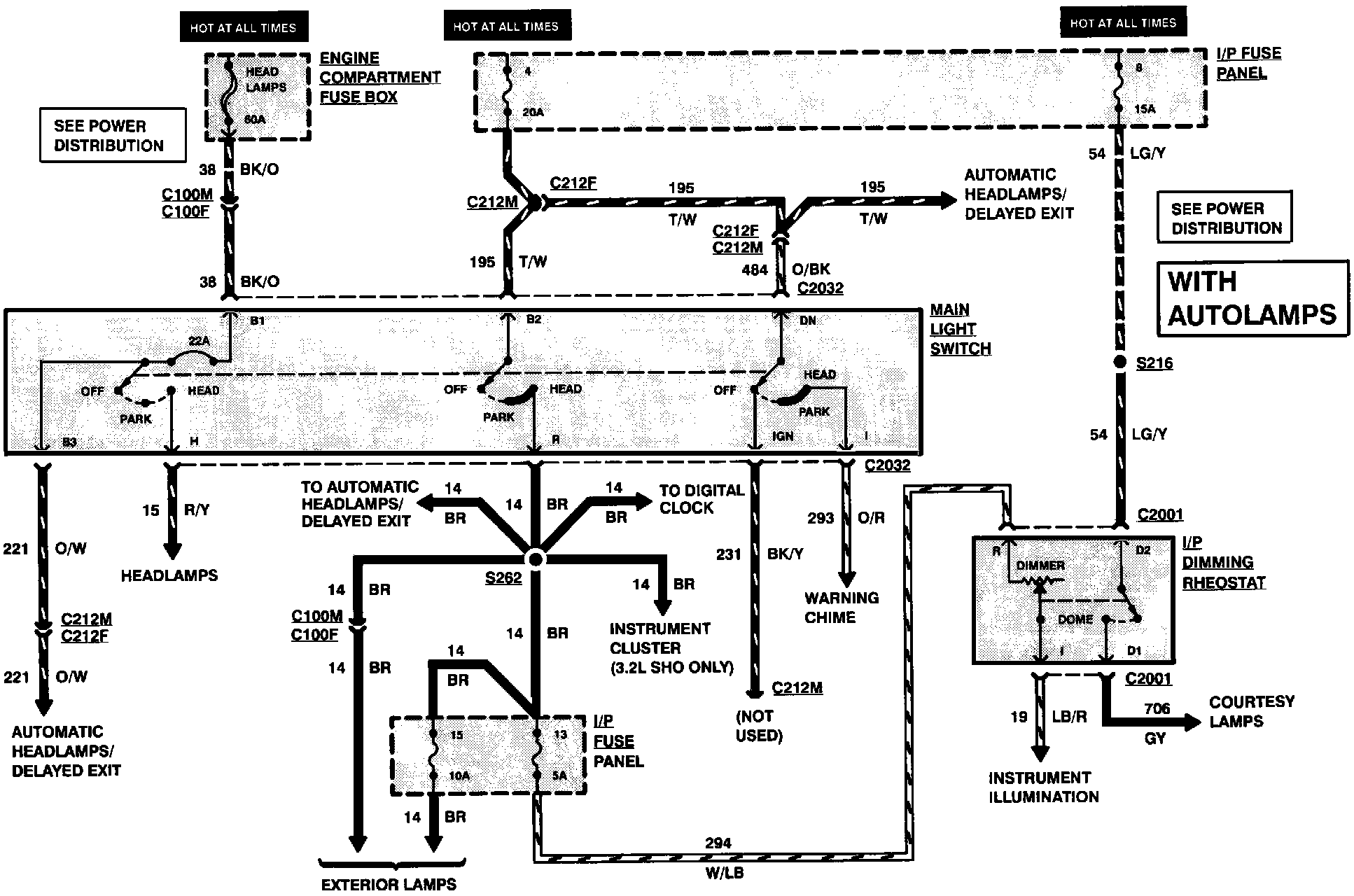

Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:
