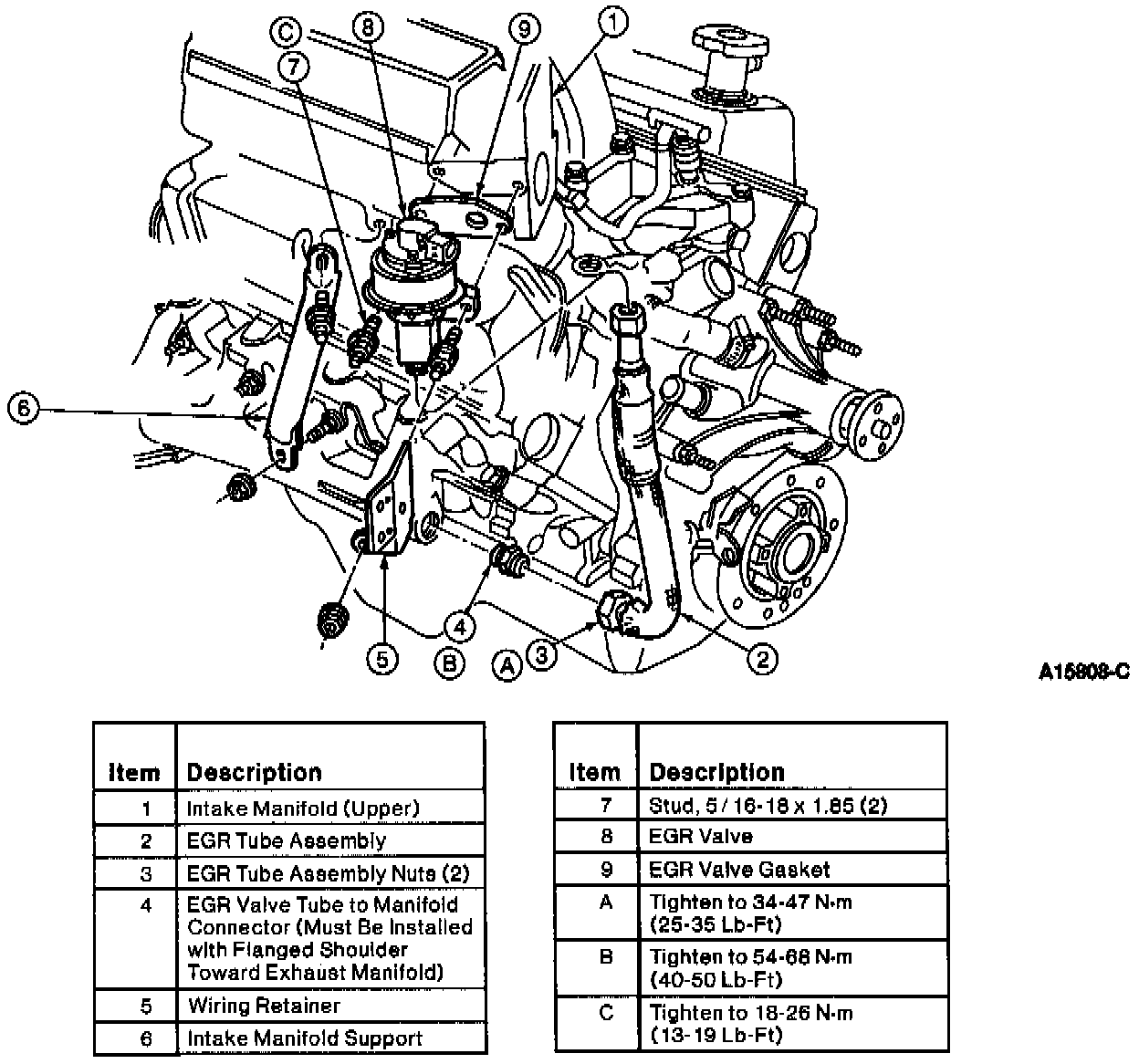

EGR Valve Position Sensor: Service and Repair

REMOVAL
1. Disconnect Exhaust Gas Recirculation (EGR) valve sensor wire connector at EGR valve sensor.
2. Remove three EGR valve sensor retaining nuts.
3. Remove EGR valve sensor from EGR valve.

INSTALLATION
1. To install, follow removal procedure in reverse.
