Blower Switch

WARNING: This page is about a different car, the 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Cab & Chassis, and 1995 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.

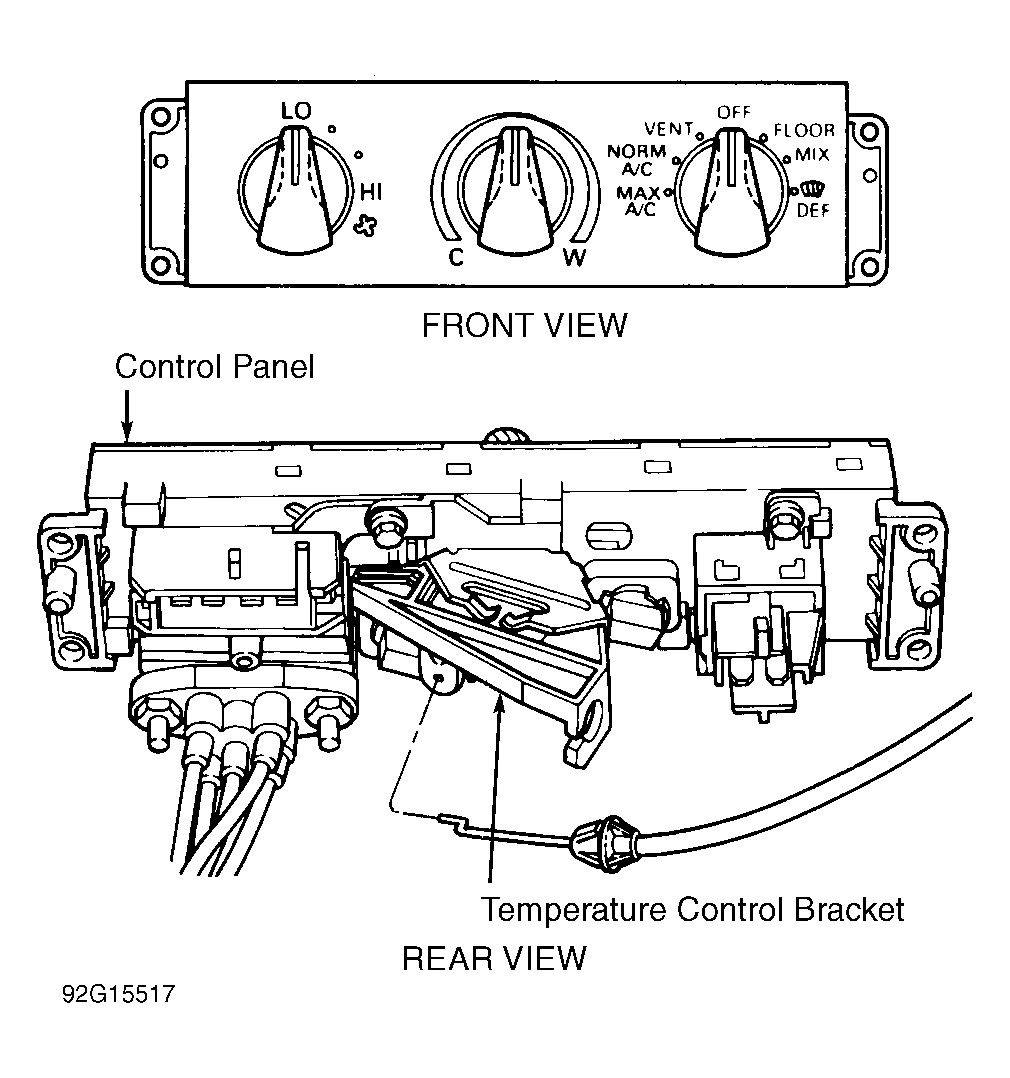

Blower speeds are controlled by 4-position blower switch and resistor assembly located in evaporator case, upstream from evaporator core. The blower switch can be set at LO, intermediate (2 positions) or HI blower speed. See Figure. The blower is turned off when function control knob is in OFF position.
