Fuse 14

Fuse 14 - protects the following circuits:
^ Rear Window Defrost Relay

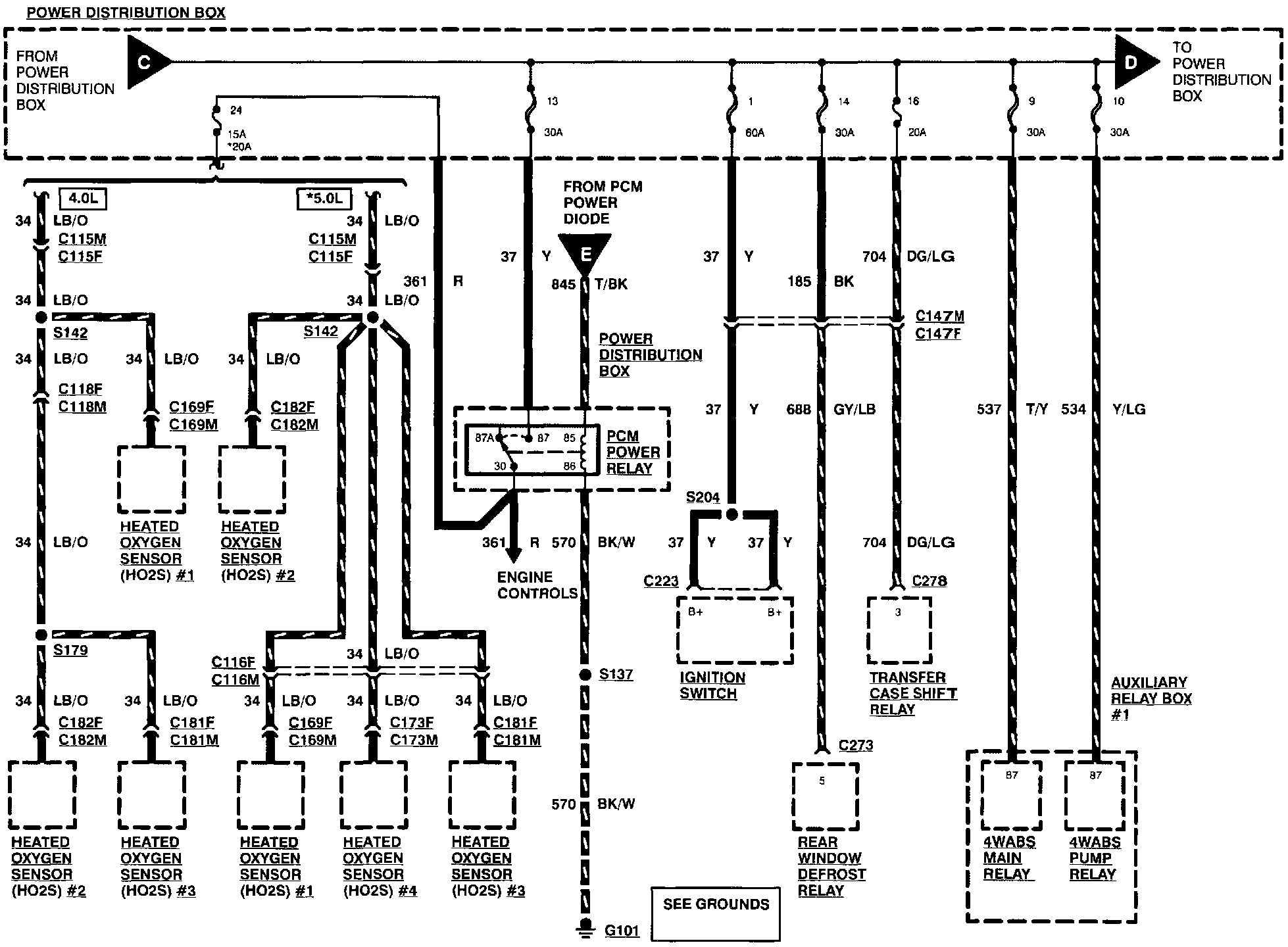

Power Distribution:

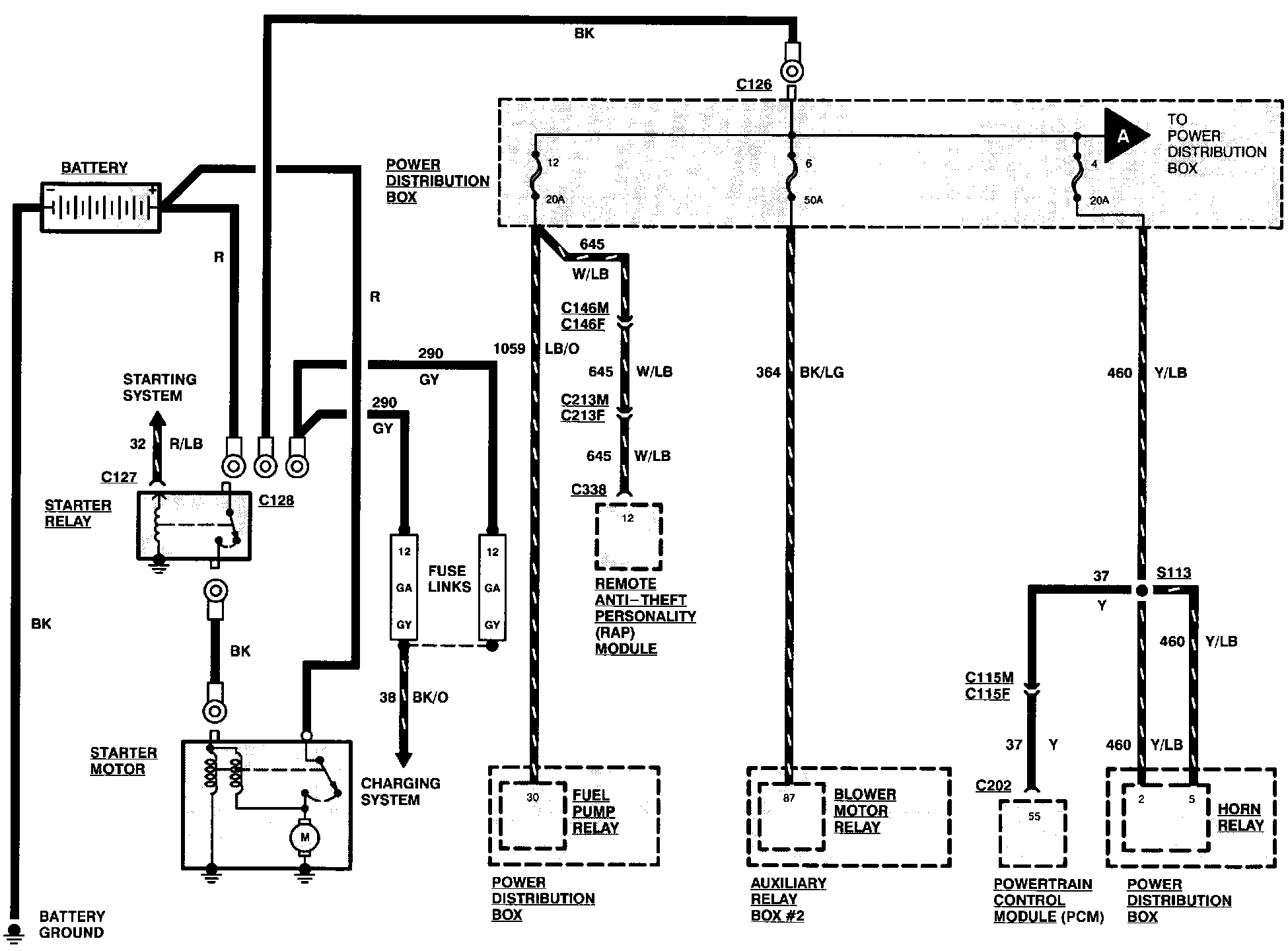

Power Distribution:
