Cruise Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

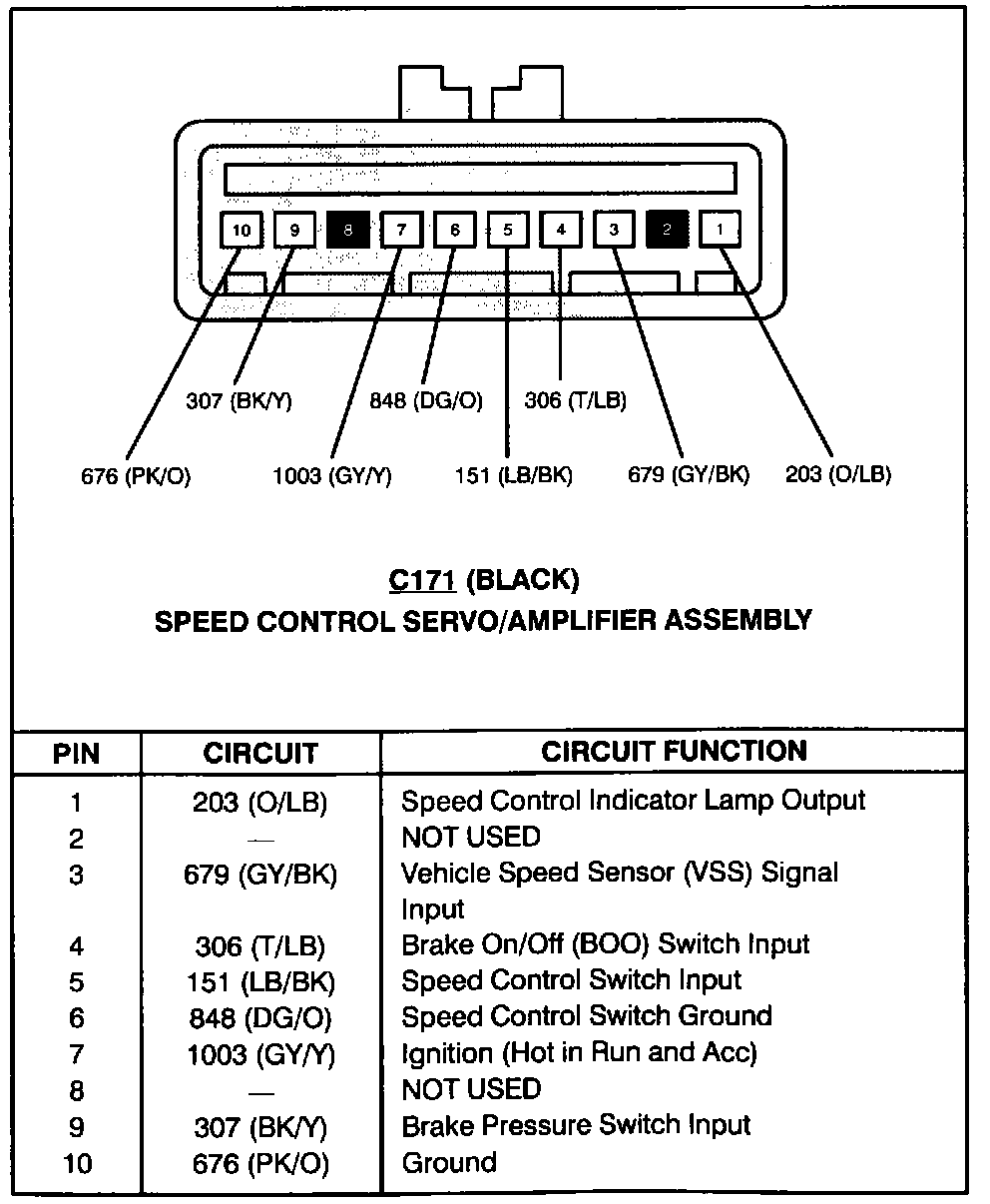

Cruise Control Module
Speed Control Servo/Amplifier Assembly:
