Generic Electronic Module/Central Timer Module

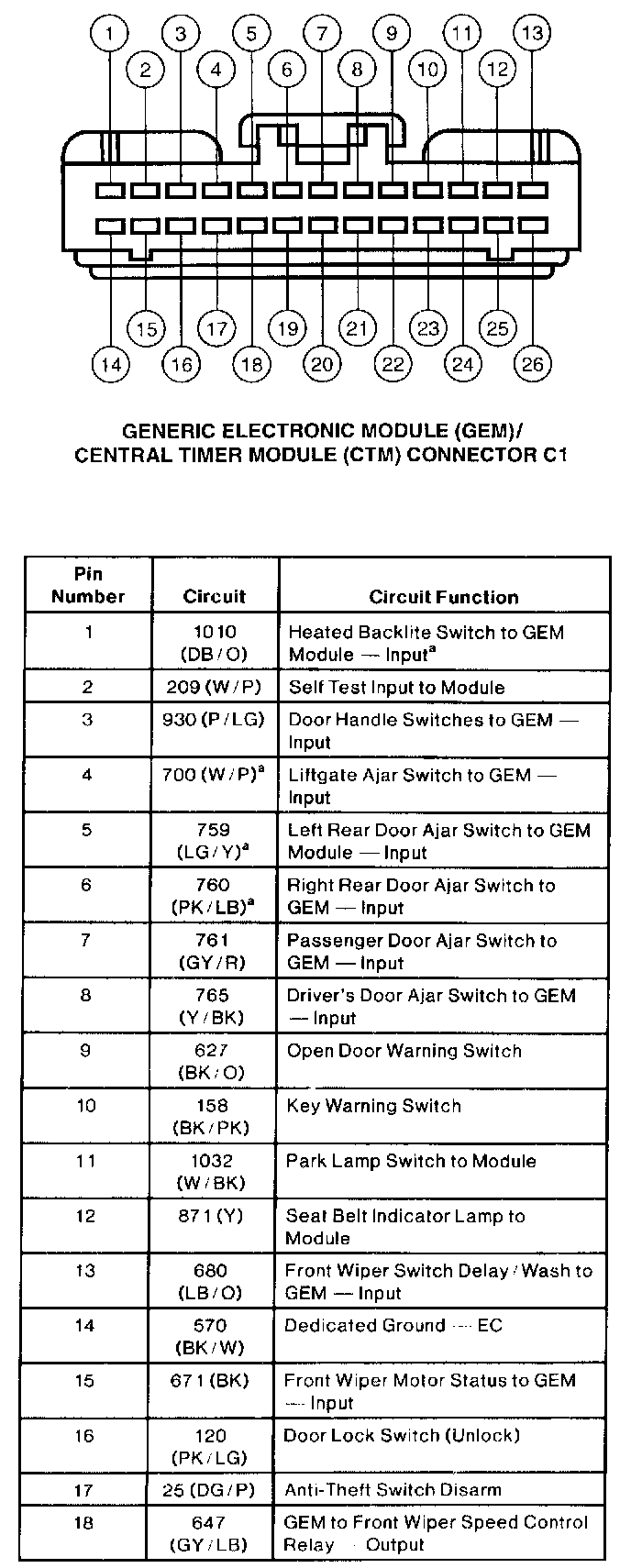

GEM/CTM Connector C1 Part 1 Of 2:

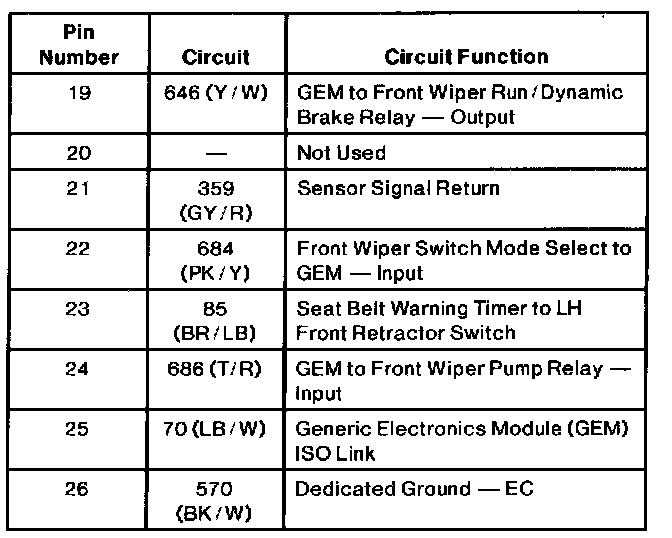

GEM/CTM Connector C1 Part 1 Of 2:

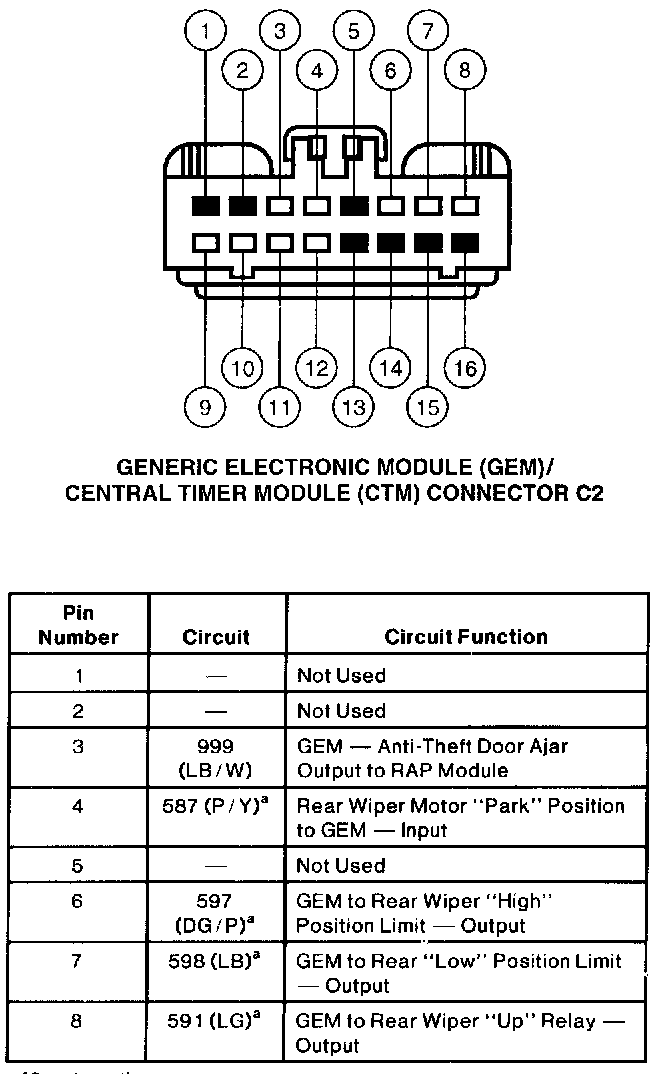

GEM/CTM Connector C2 Part 1 Of 2:

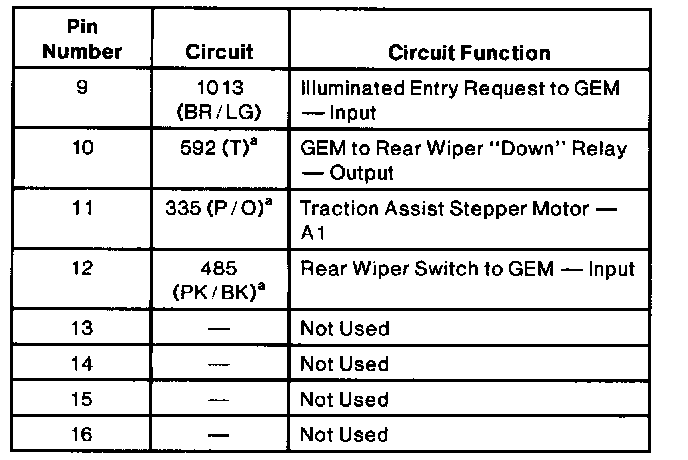

GEM/CTM Connector C2 Part 2 Of 2:

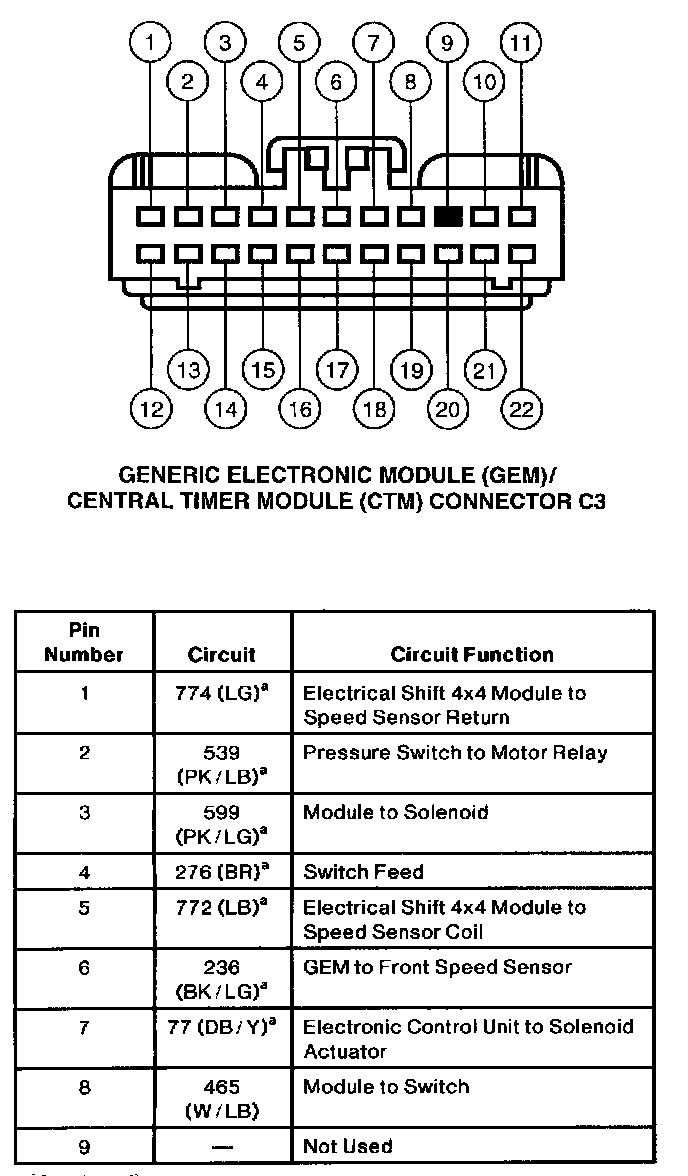

GEM/CTM Connector C3 Part 1 Of 2:

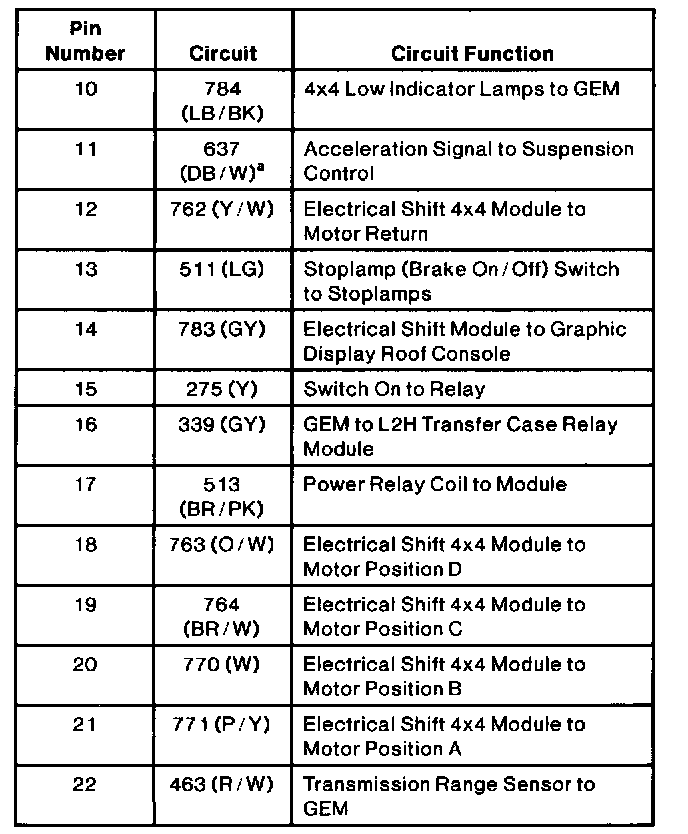

GEM/CTM Connector C2 Part 2 Of 2:

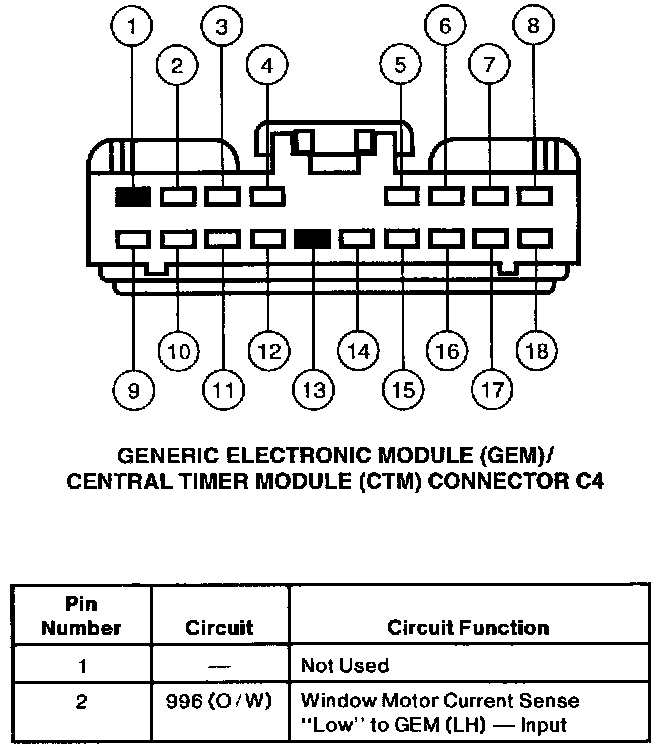

GEM/CTM Connector C4 Part 1 Of 2:

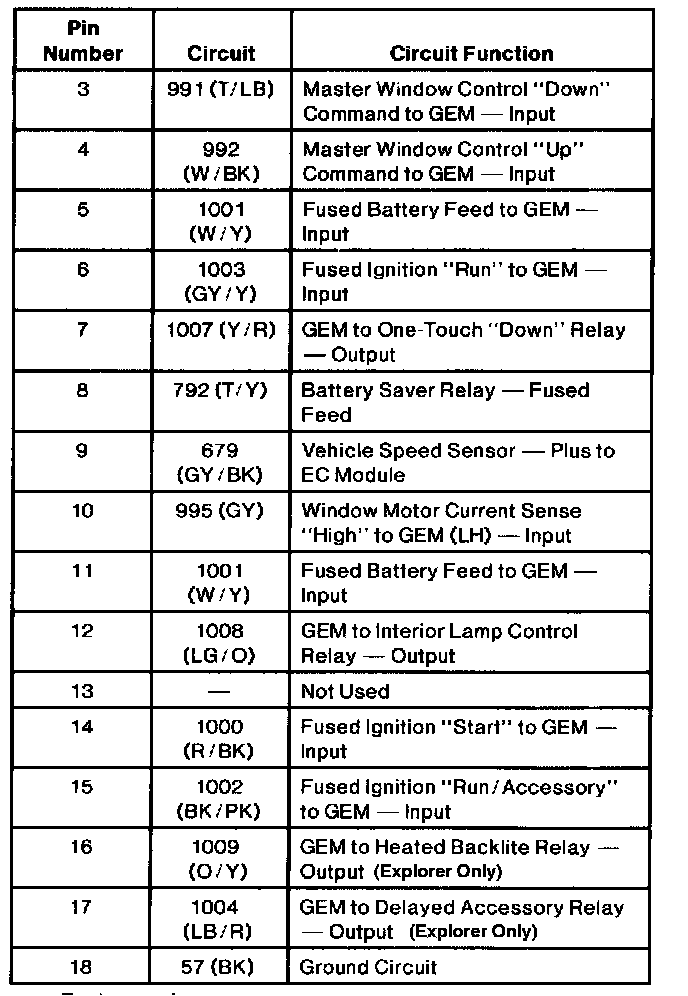

GEM/CTM Connector C4 Part 2 Of 2:

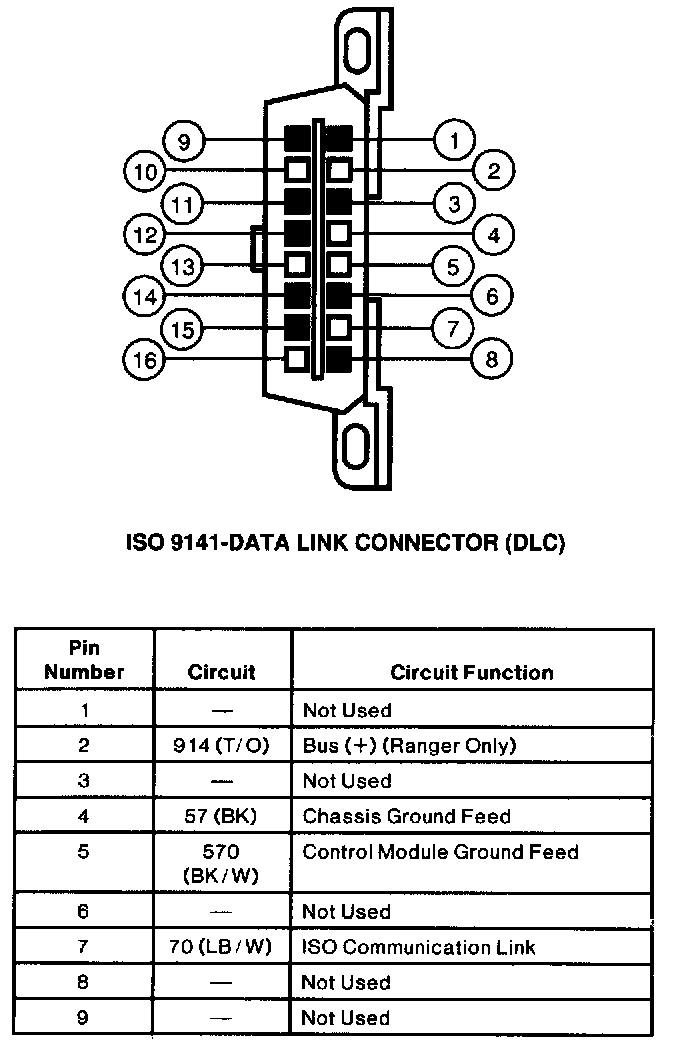

Data Link Connector Part 1 Of 2:

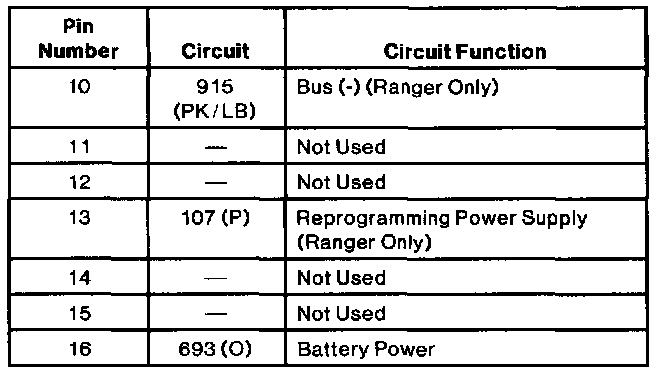

Data Link Connector Part 2 Of 2:
