Electronic Climate Control Module

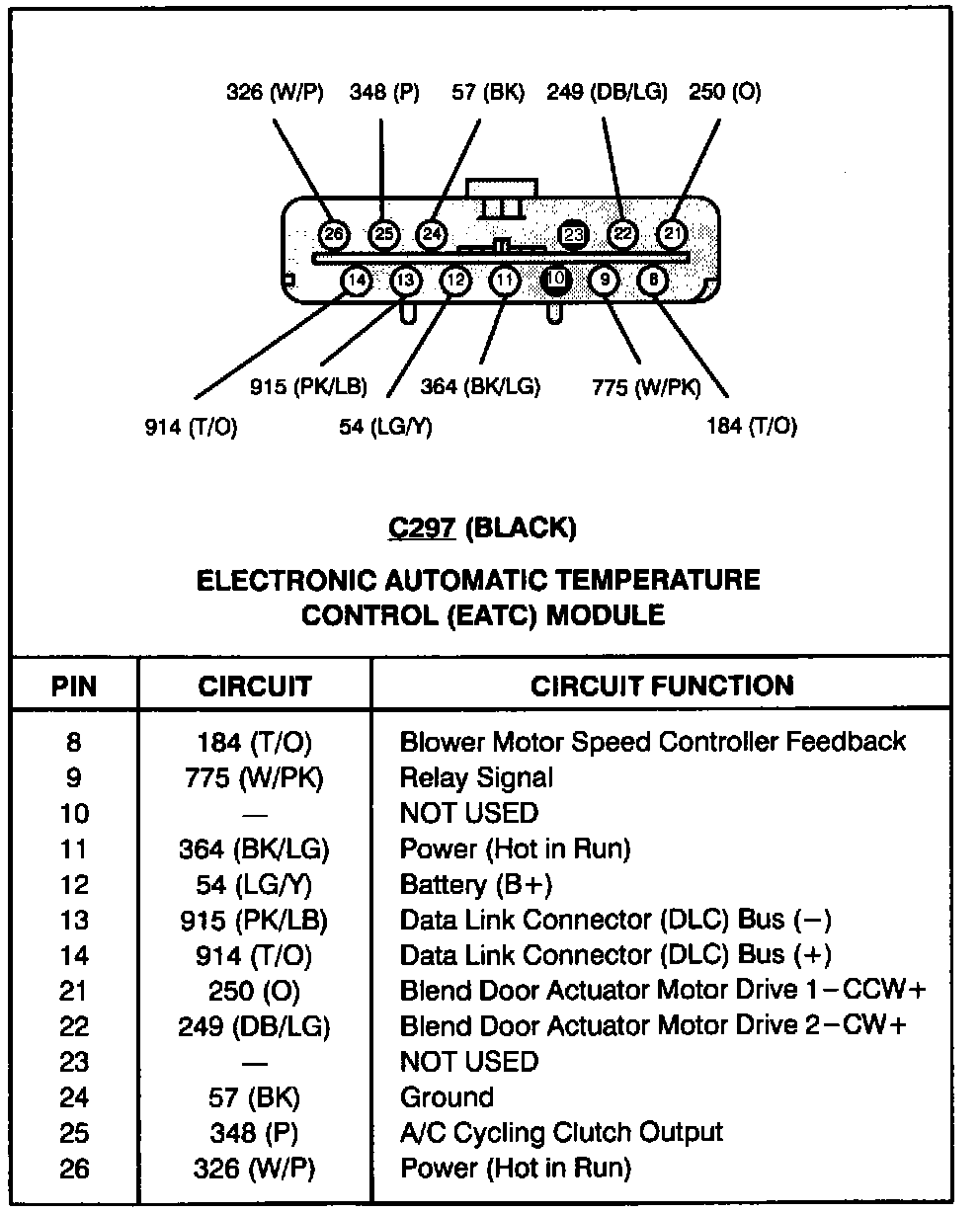

Electronic Automatic Temperature Control Module (C297):

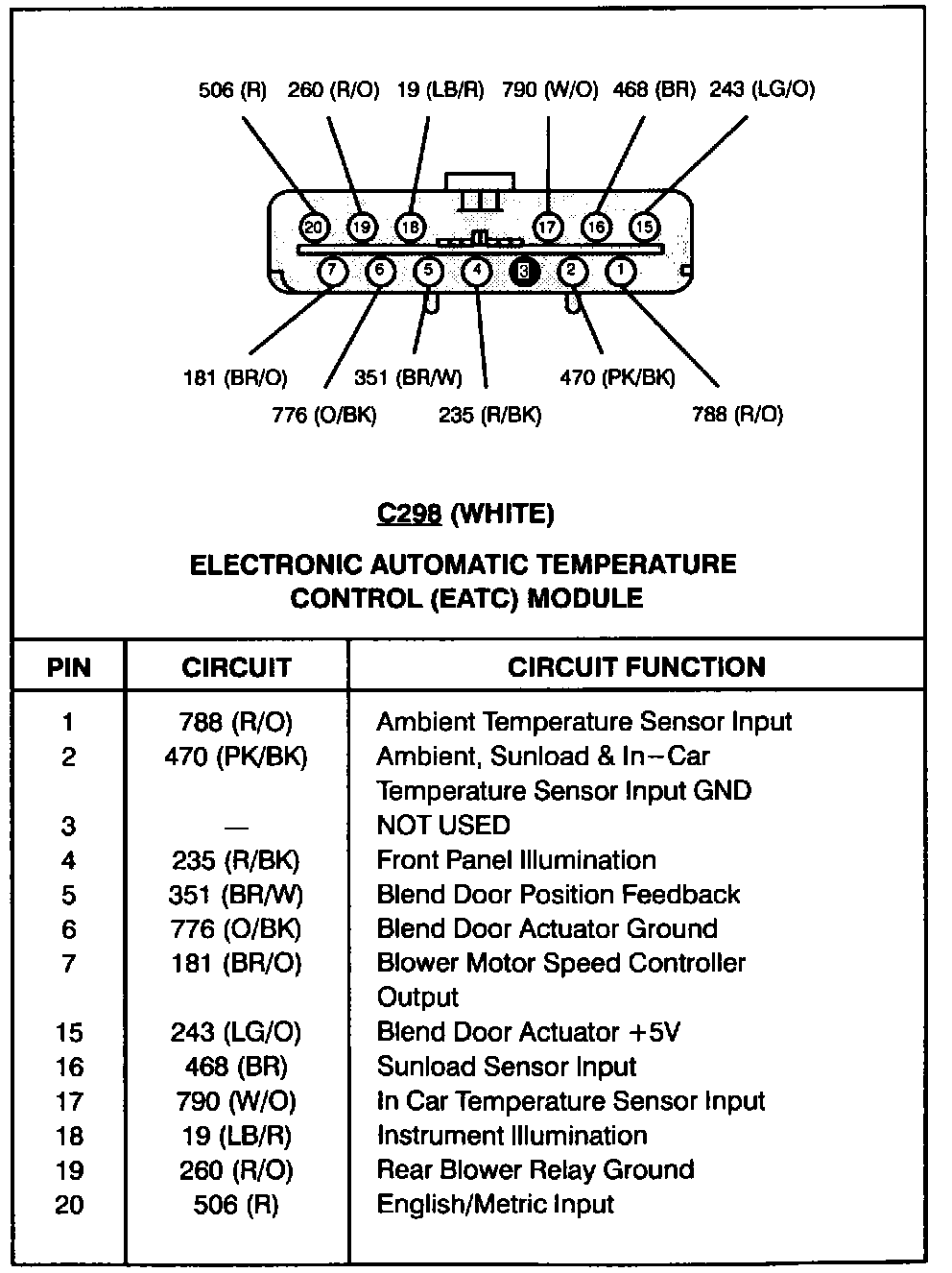

Electronic Automatic Temperature Control Module (C298):
