Rear Differential

8.8-Inch Ring Gear







With Traction-Lok

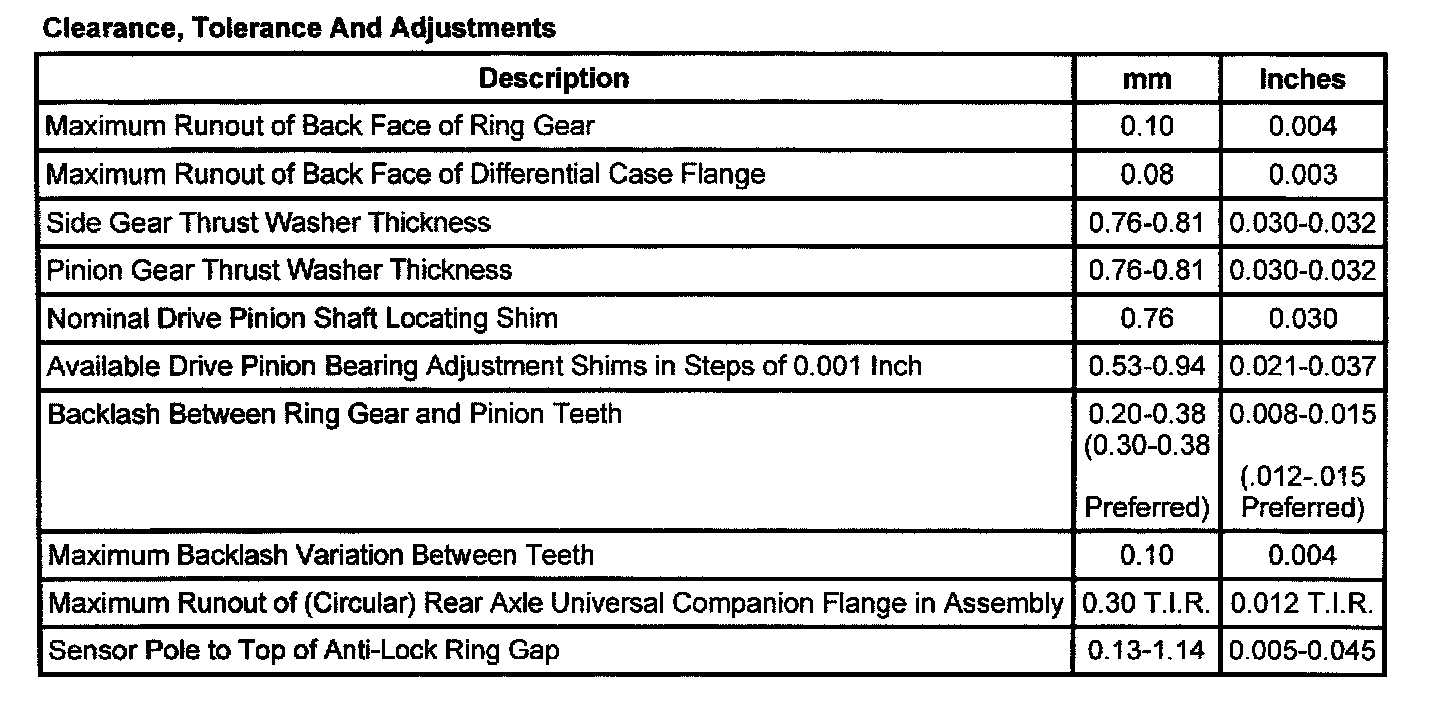

Backlash Between Ring Gear and Pinion

Backlash - 0.20-0.38mm (0.008-0.015 inch [0.012-0.015 inch preferred])

Maximum runout of backface of ring gear and pinion - 0.1mm (0.004 inch)
