Home >> Ford >> 1996 >> Explorer 4WD V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> System Diagram >> Electrical Schematics >> Wiper/Washer System >> With Central Timer Module

April 5, 2026: LEMON Manuals is launched! Read the announcement.

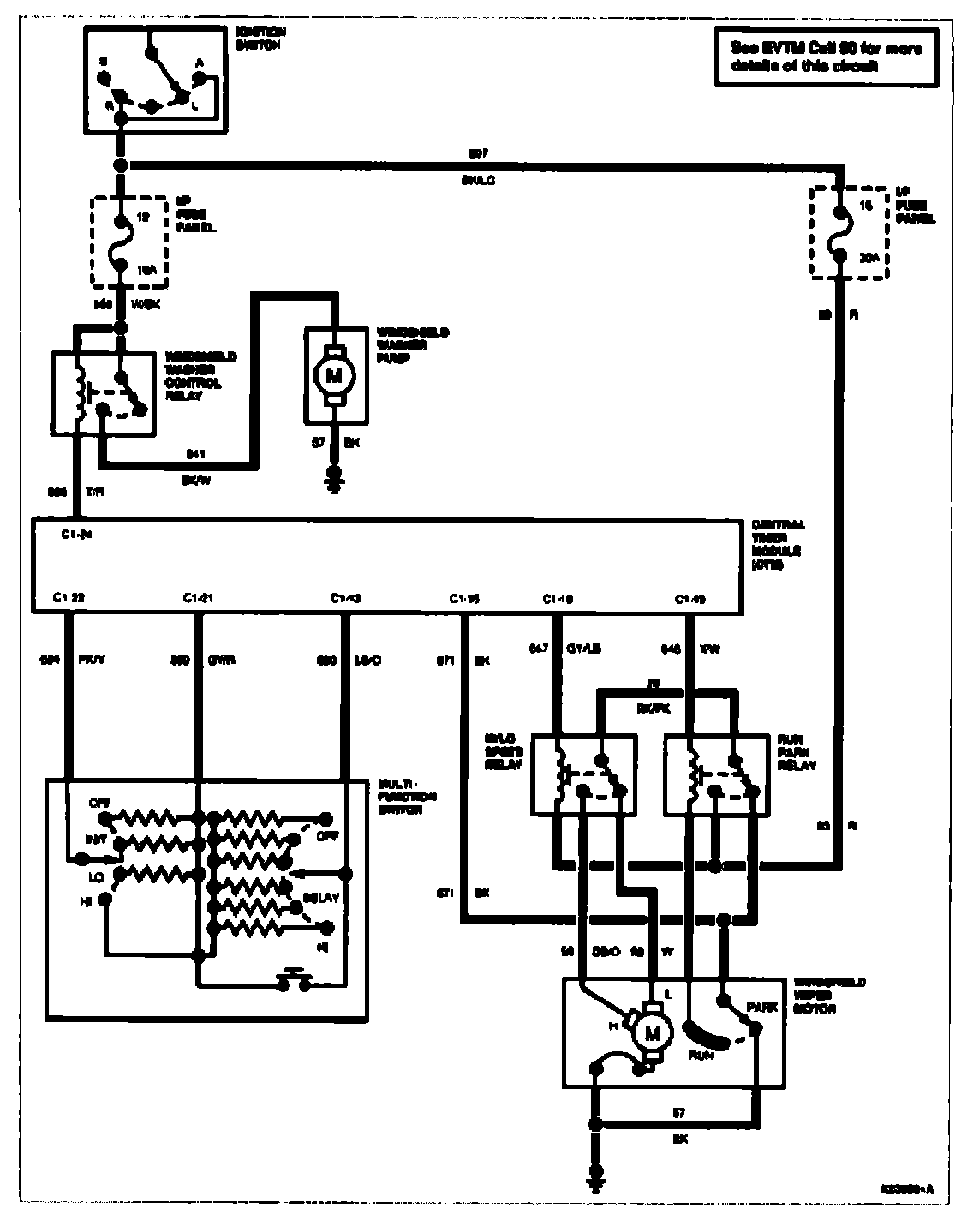

With Central Timer Module
