Convertible

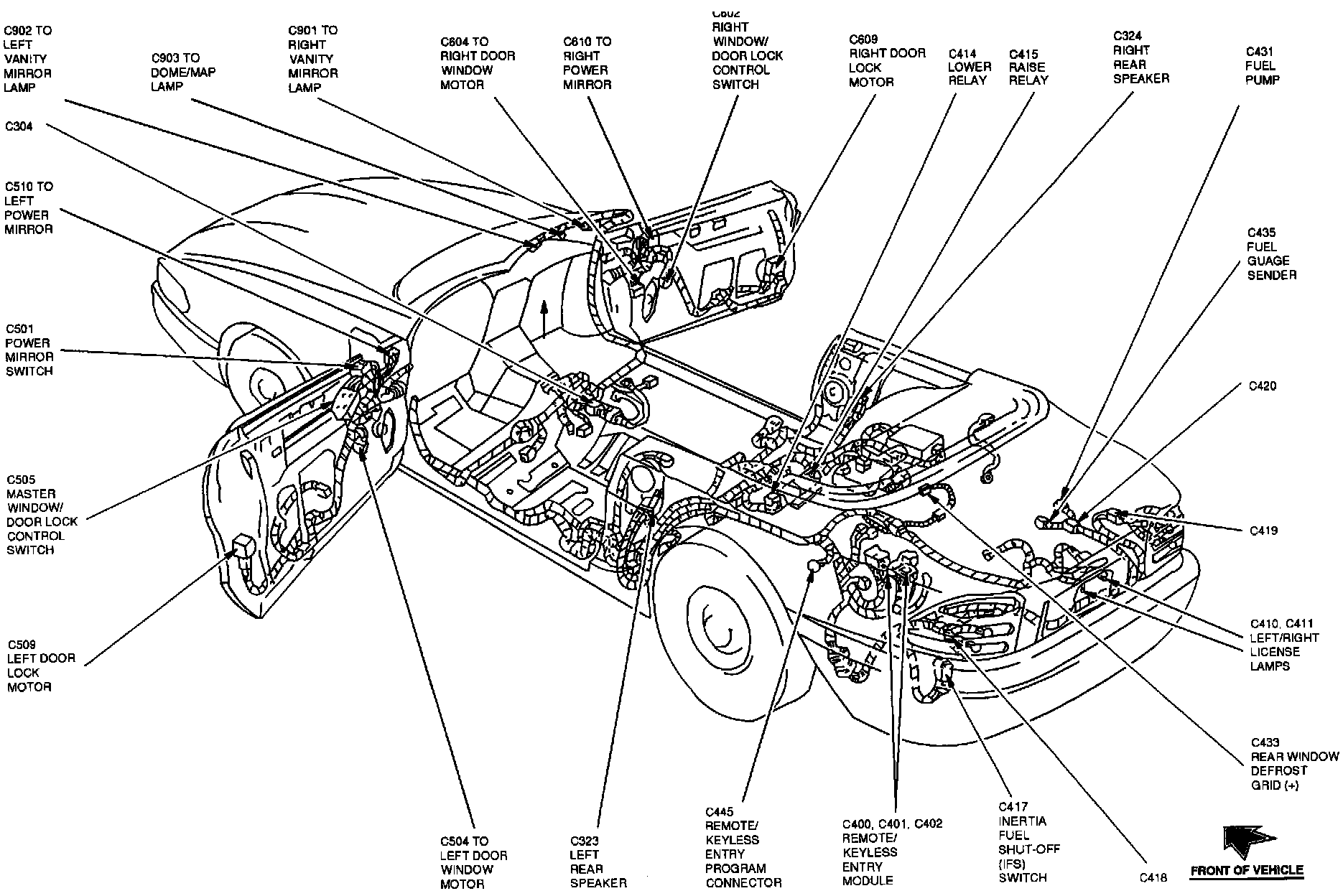

Full-body View (Convertible):





The Remote/Keyless Entry Module is located at the LH rear of trunk, behind side trim.
