Control Module: Locations

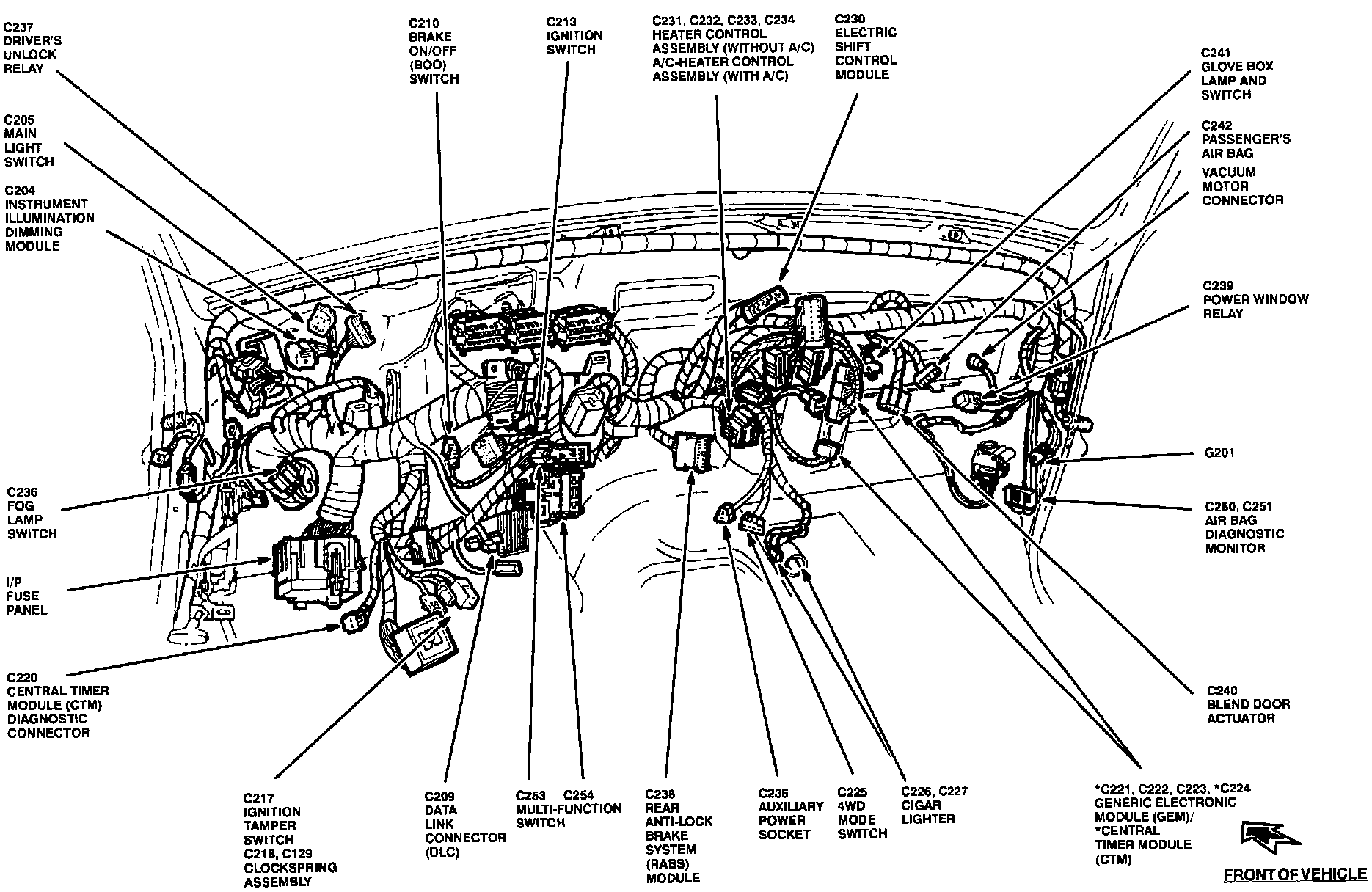

Behind Instrument Panel View:
GEM General Electronic Module:
The Electric Shift Control Module and the Generic Electronic Module
(GEM)
are located behind the center of the instrument panel.
