Remote Anti-Theft Personality Module

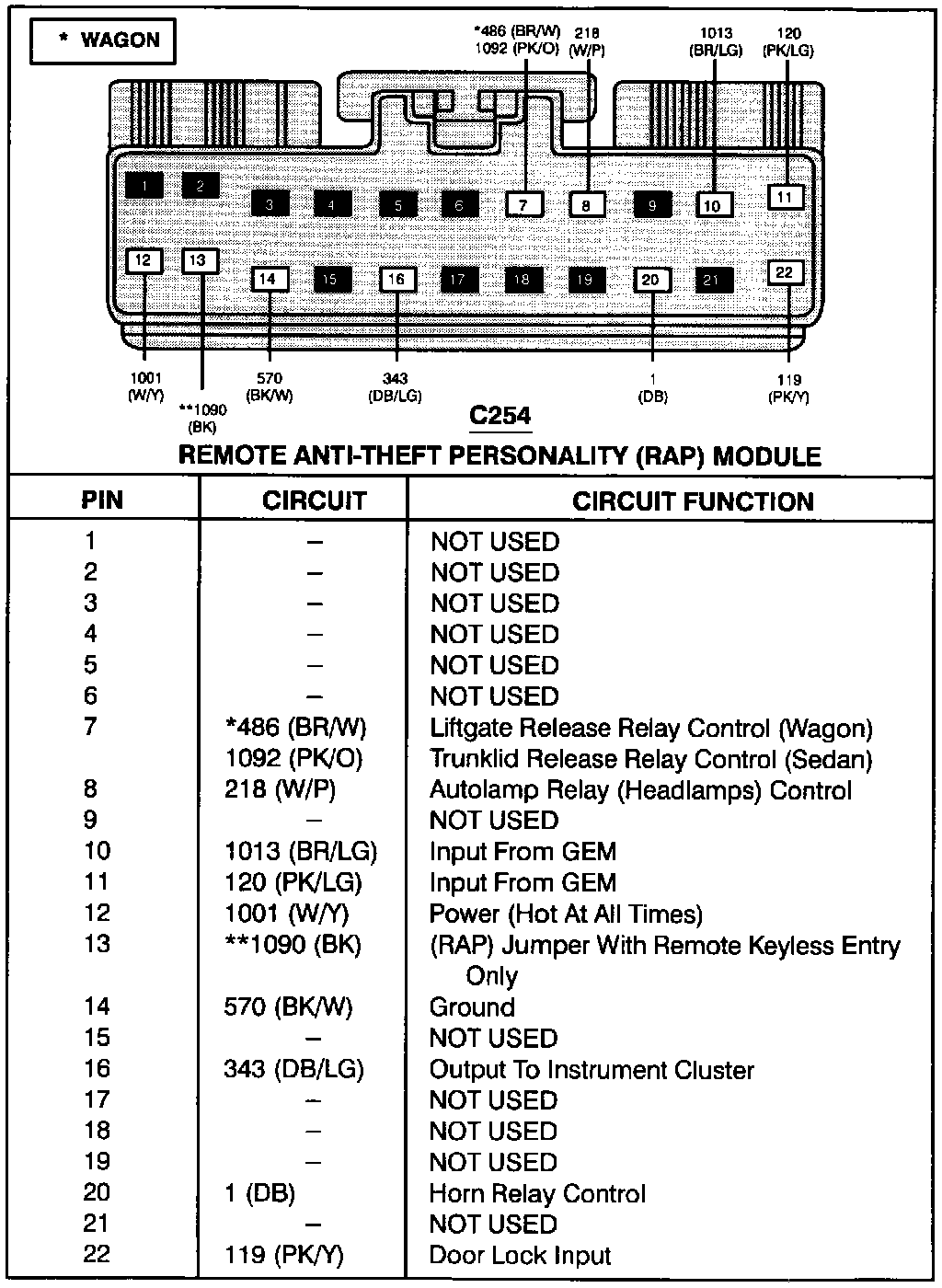

Remote Anti-Theft Personality Module (C254):

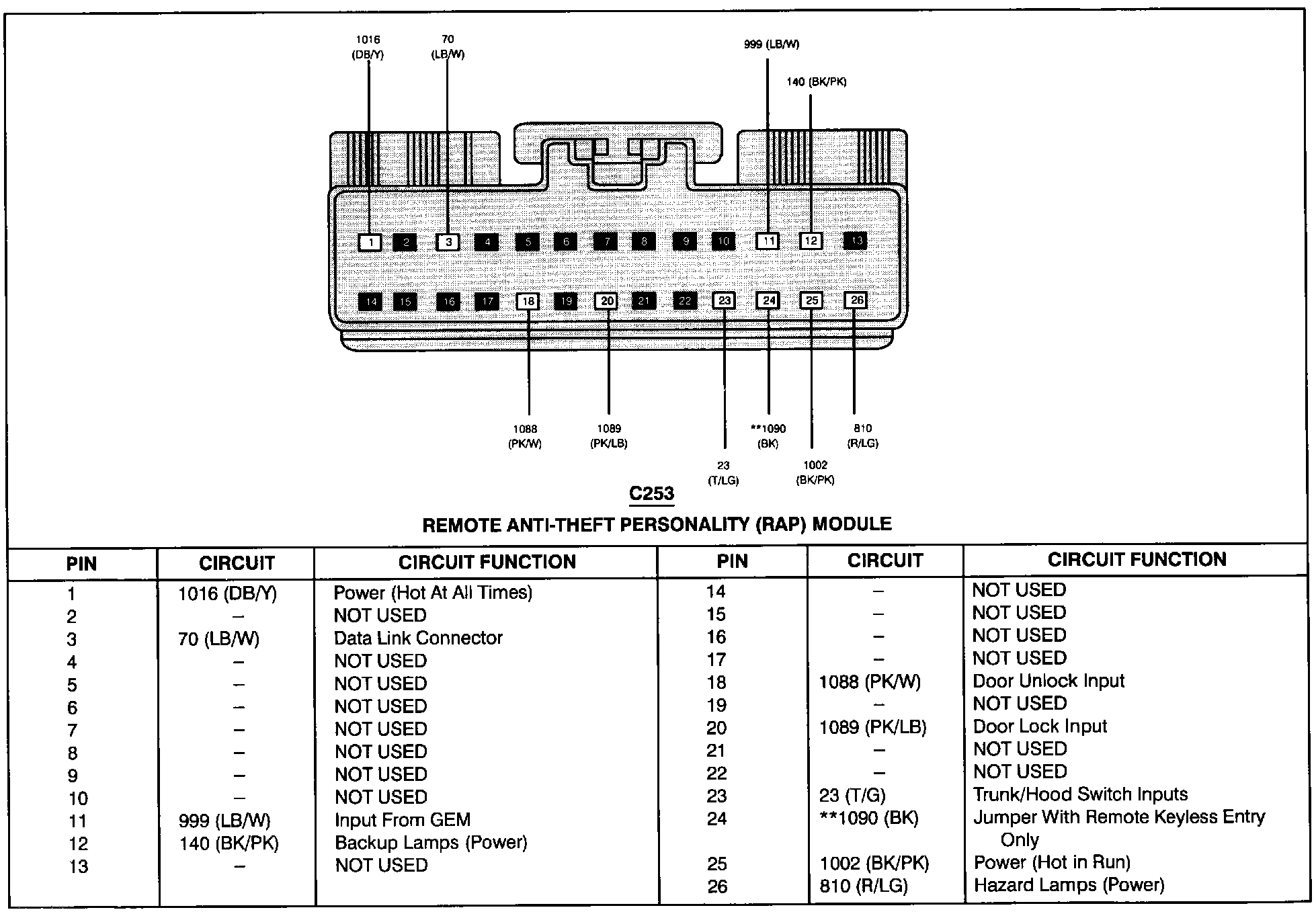

Remote Anti-Theft Personality Module (C253):
