General Module

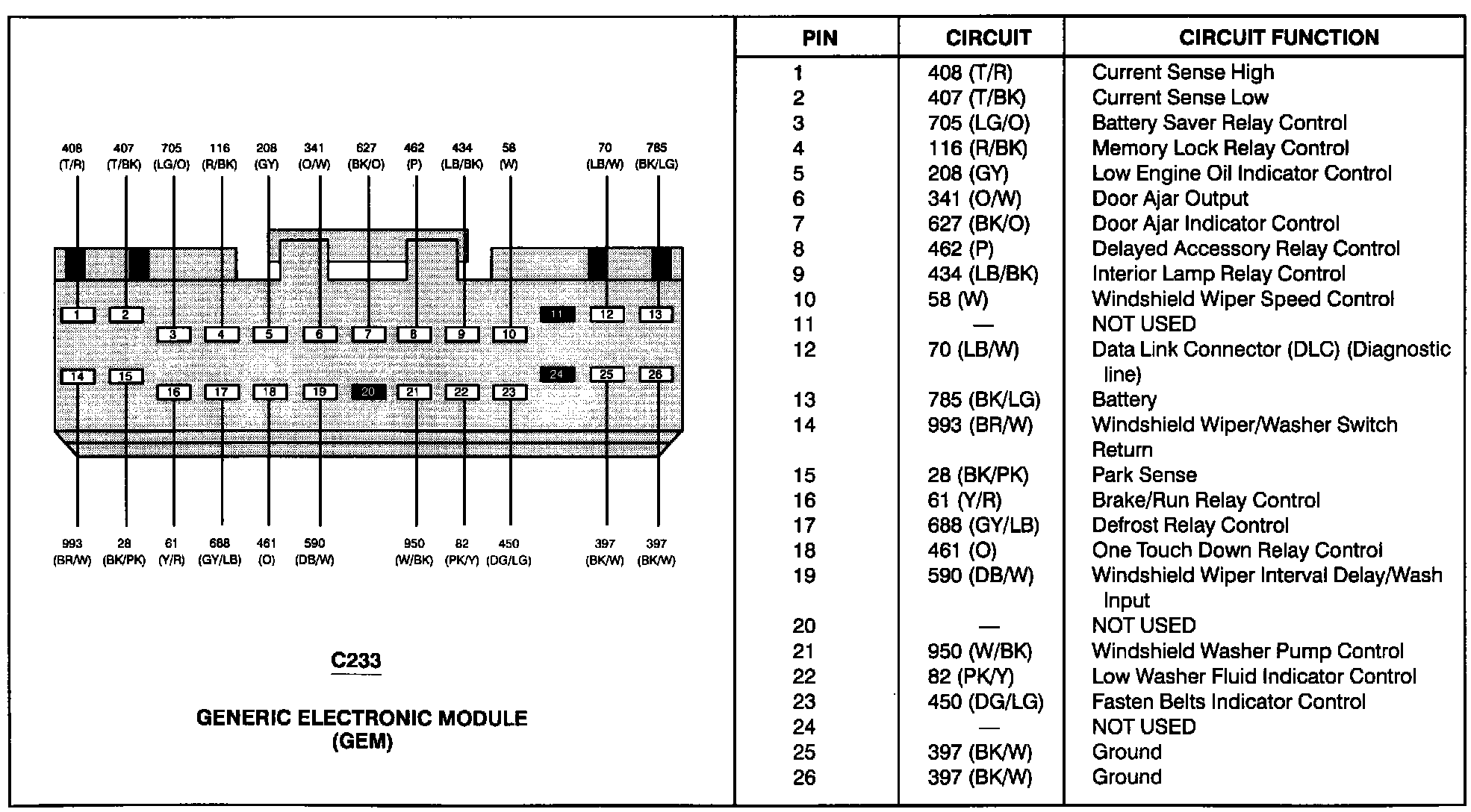

Generic Electronic Module (C233):

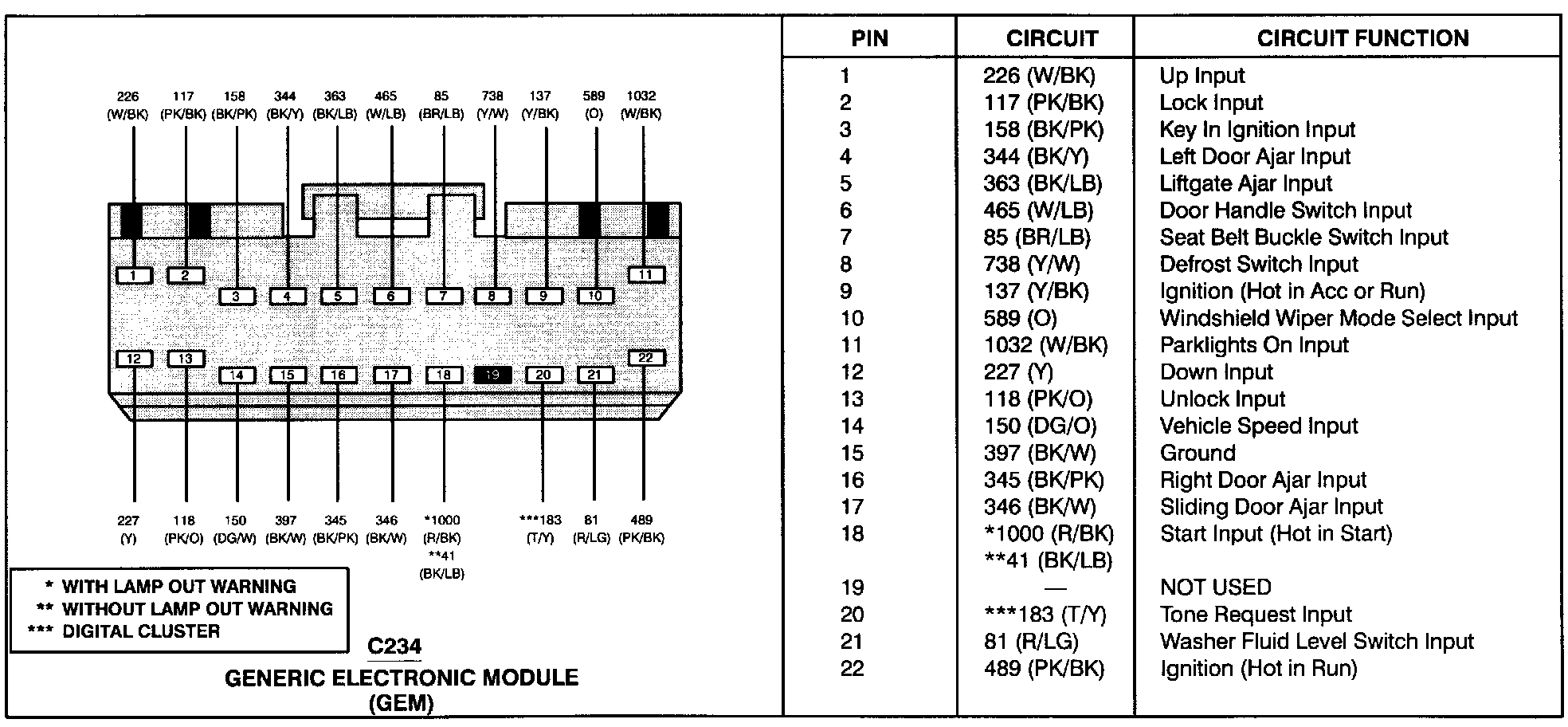

Generic Electronic Module (C234):

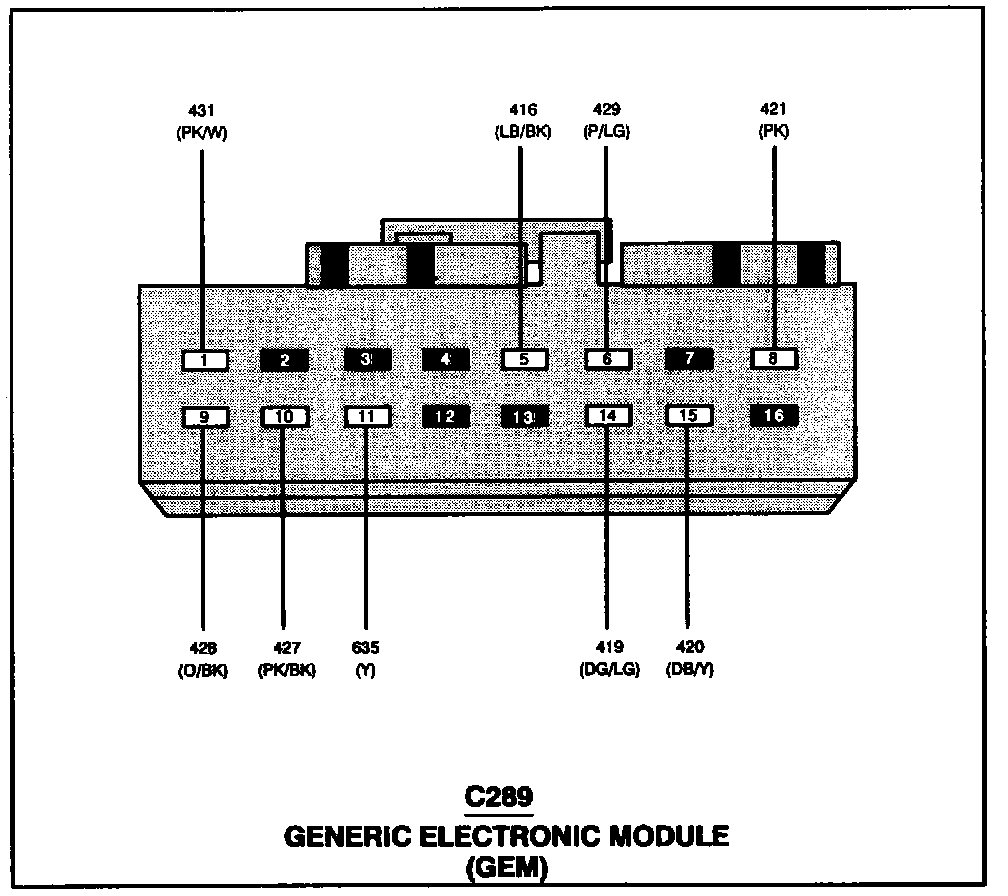

Generic Electronic Module - C289 (Part 1 Of 2):




Generic Electronic Module - C289 (Part 2 Of 2):
