Power Window Master Switch

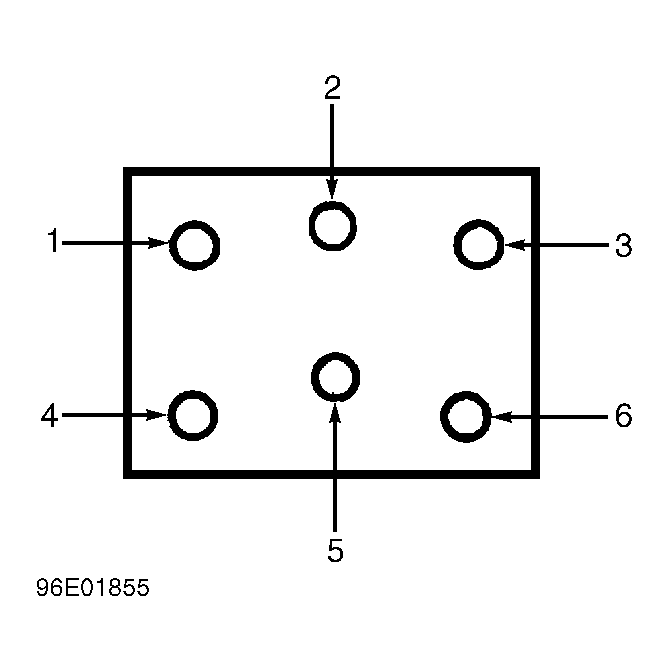

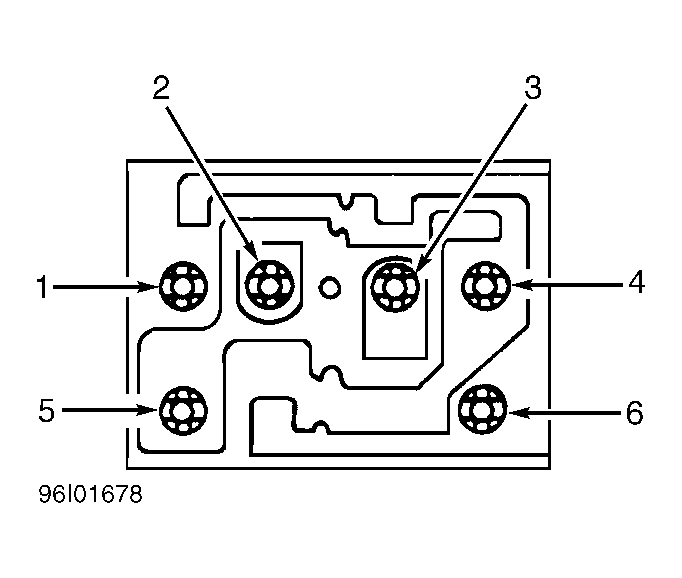

Remove master switch from vehicle. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Measure resistance between specified terminals while operating switch. See appropriate MASTER SWITCH TESTING TABLE. See Fig 1 or Fig 2 . Replace switch if resistance between specified terminals is greater than 5 ohms. DO NOT check resistance between terminals not specified.
MASTER SWITCH TESTING
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Neutral | 1, 2, 3, 4 & 5 | |
| Left | ||
| Up | 2 & 6; 1 & 5 | |
| Down | 1 & 6; 2 & 5 | |
| Right | ||
| Up | 4 & 6; 3 & 5 | |
| Down | 3 & 6; 4 & 5 | |
MASTER SWITCH TESTING
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Neutral | 1, 3, 4, 6 & 2 | |
| Left | ||
| Up | 1 & 5; 2 & 4 | |
| Down | 4 & 5; 1 & 2 | |
| Right | ||
| Up | 5 & 6; 2 & 3 | |
| Down | 3 & 5; 2 & 6 | |
