Power Distribution Box Identification - 1997: Notes

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

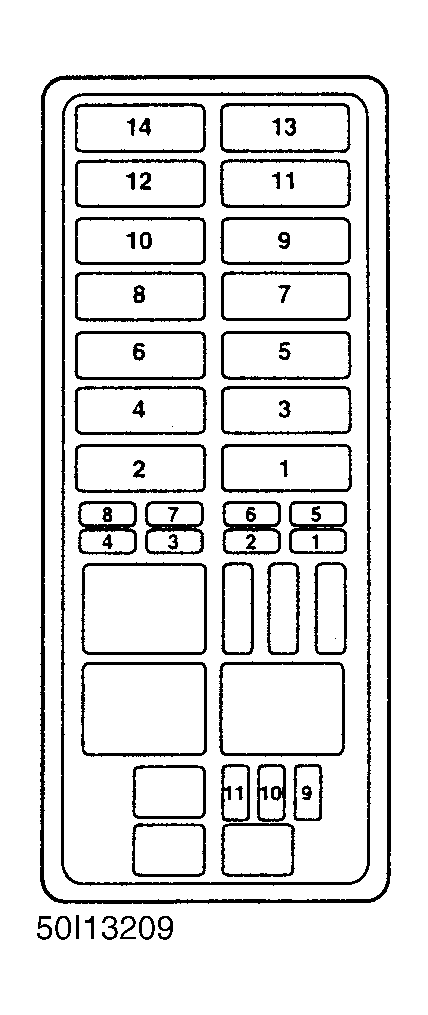

Fig 1: Power Distribution Box Identification - 1997
G50I13209Courtesy of FORD MOTOR CO.
