General Module

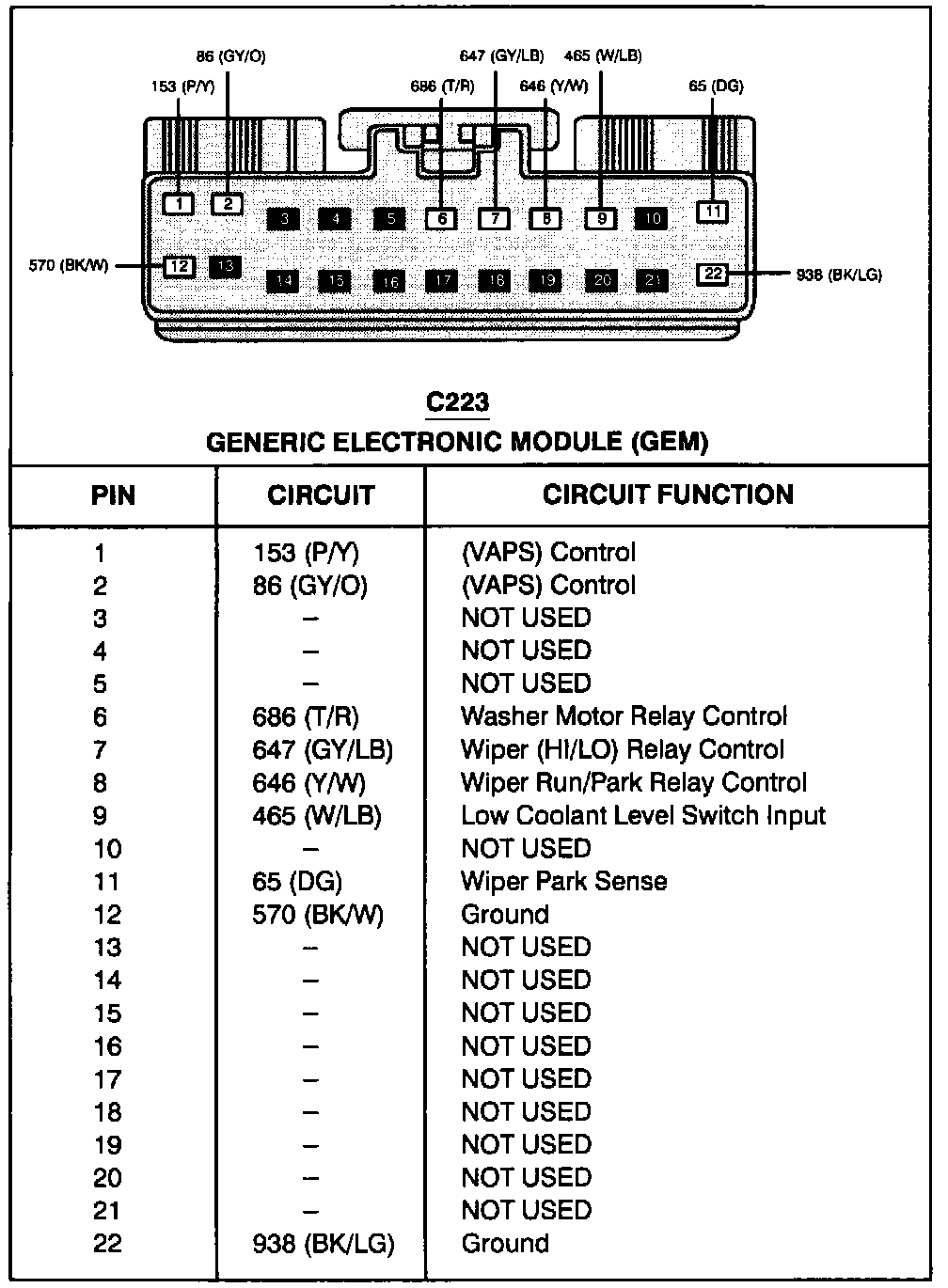

Generic Electronic Module (C223):

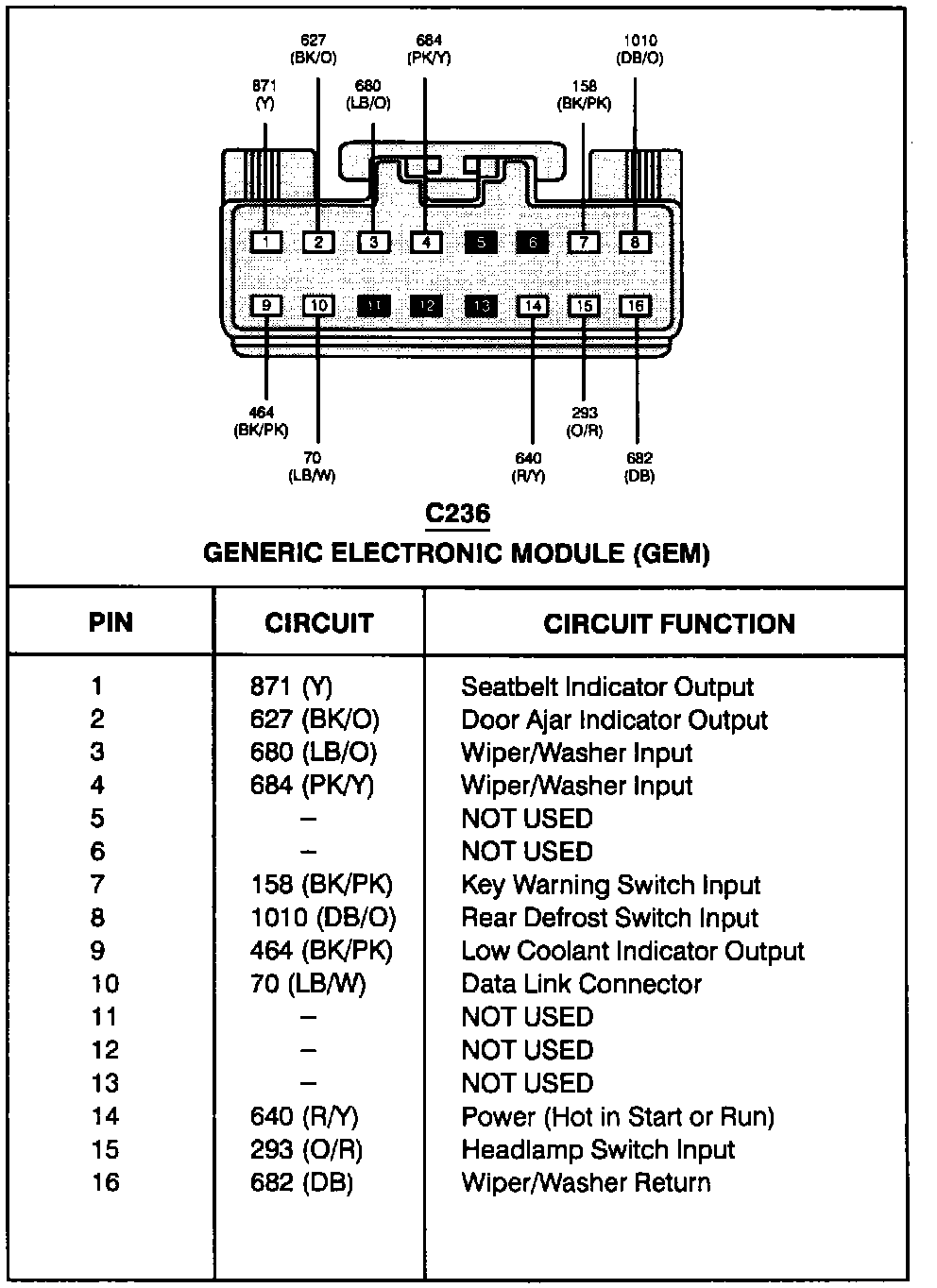

Generic Electronic Module (C236):

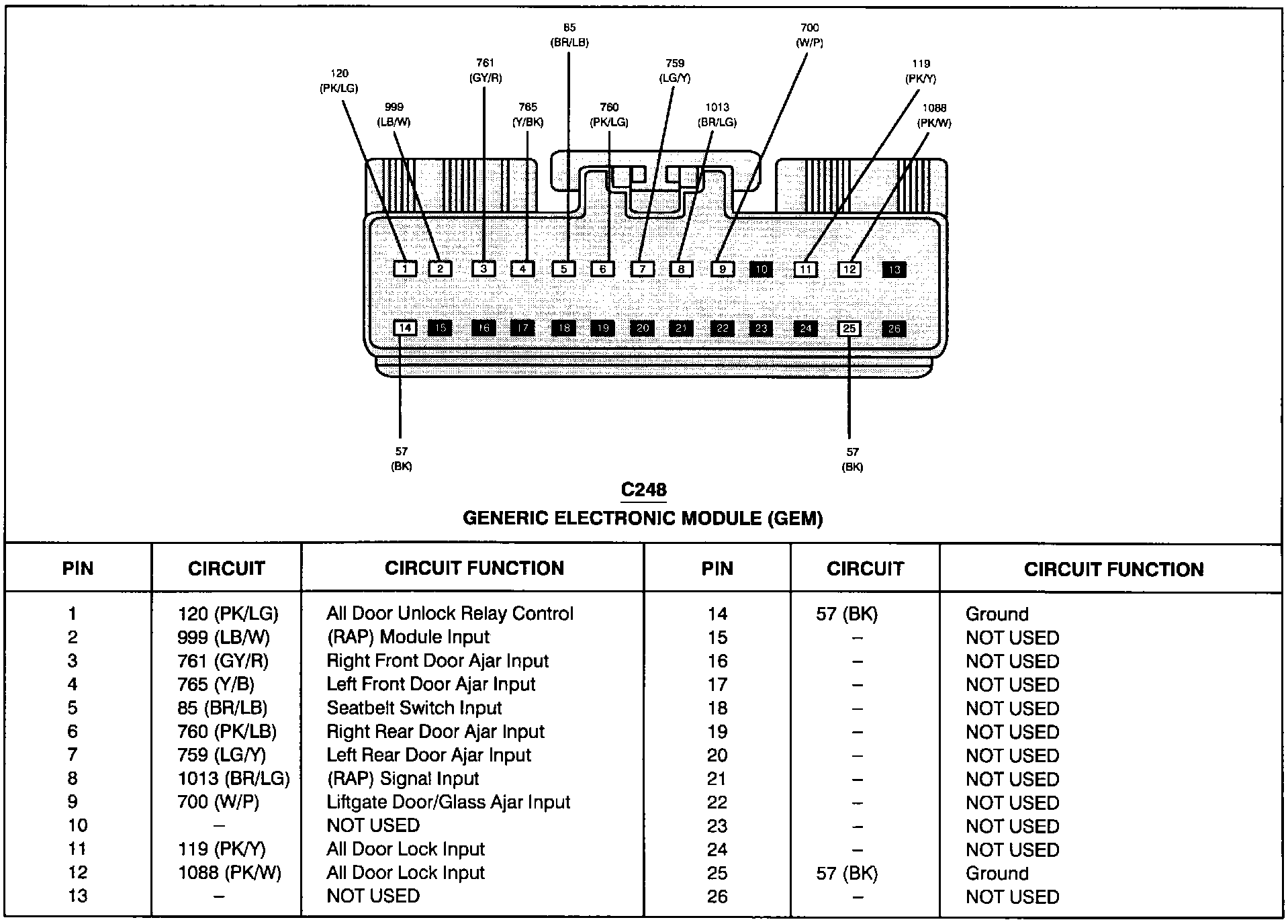

Generic Electronic Module (C248):
