Upper Intake Manifold: Installation
WARNING: This page is about a different car, the 1998 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

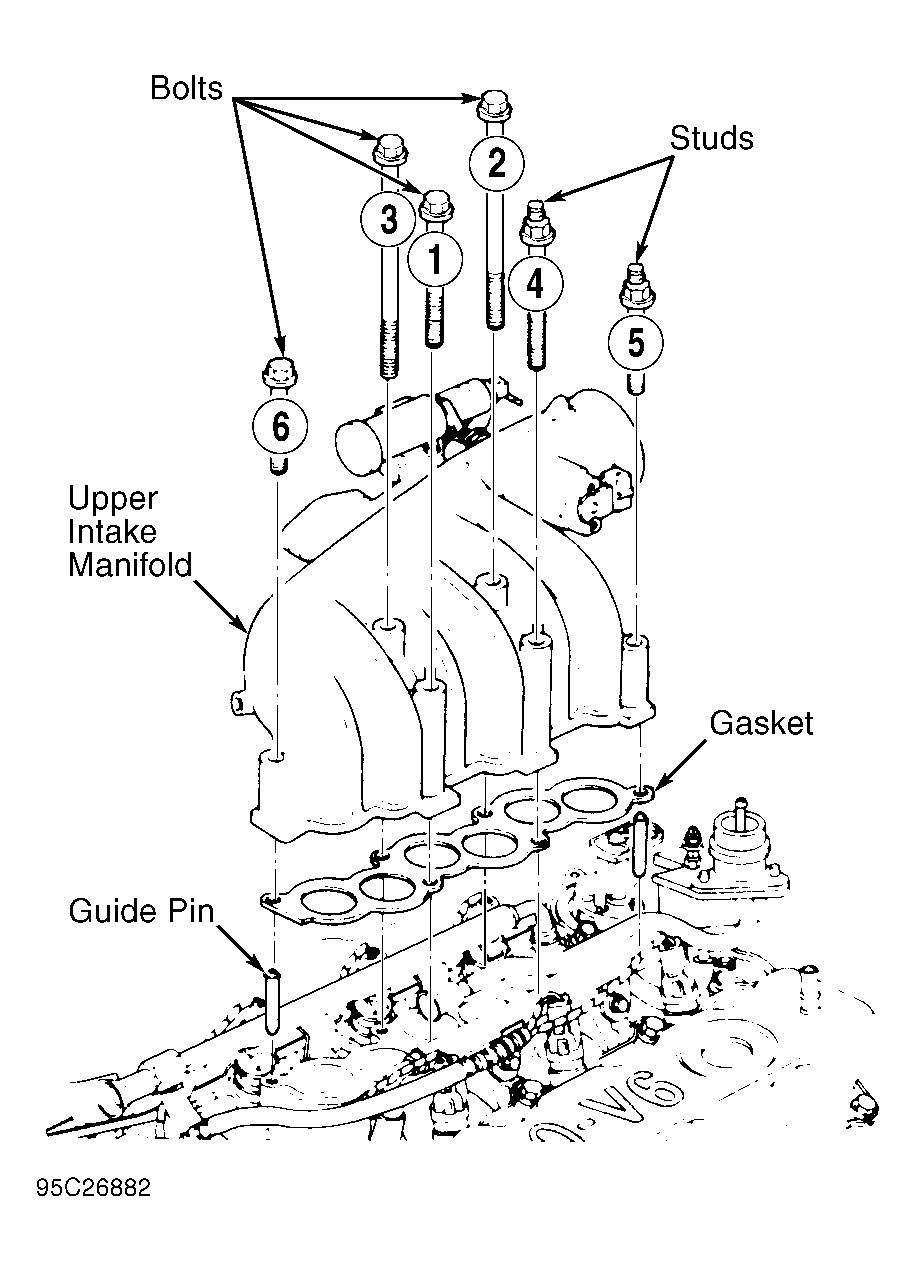

Clean gasket mating surfaces, using caution not to gouge plastic or aluminum parts. Install a NEW gasket. Use guide pins and install upper intake manifold. Tighten bolts in sequence to specification. See Fig 1 . See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
