Accessory Drive

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

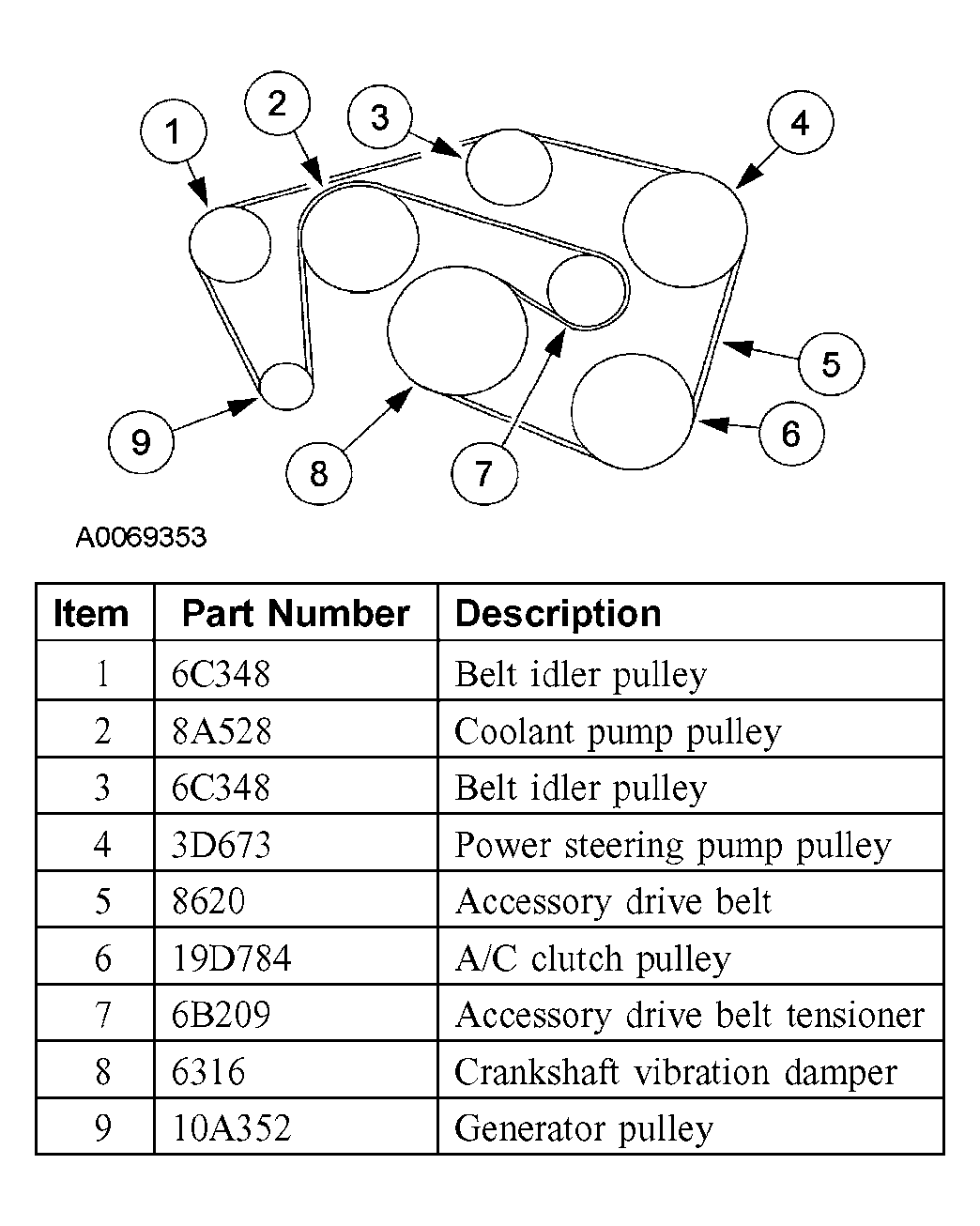

Fig 1: Identifying Accessory Drive Belt Routing & Component Locations - 3.0L

Courtesy of FORD MOTOR CO.

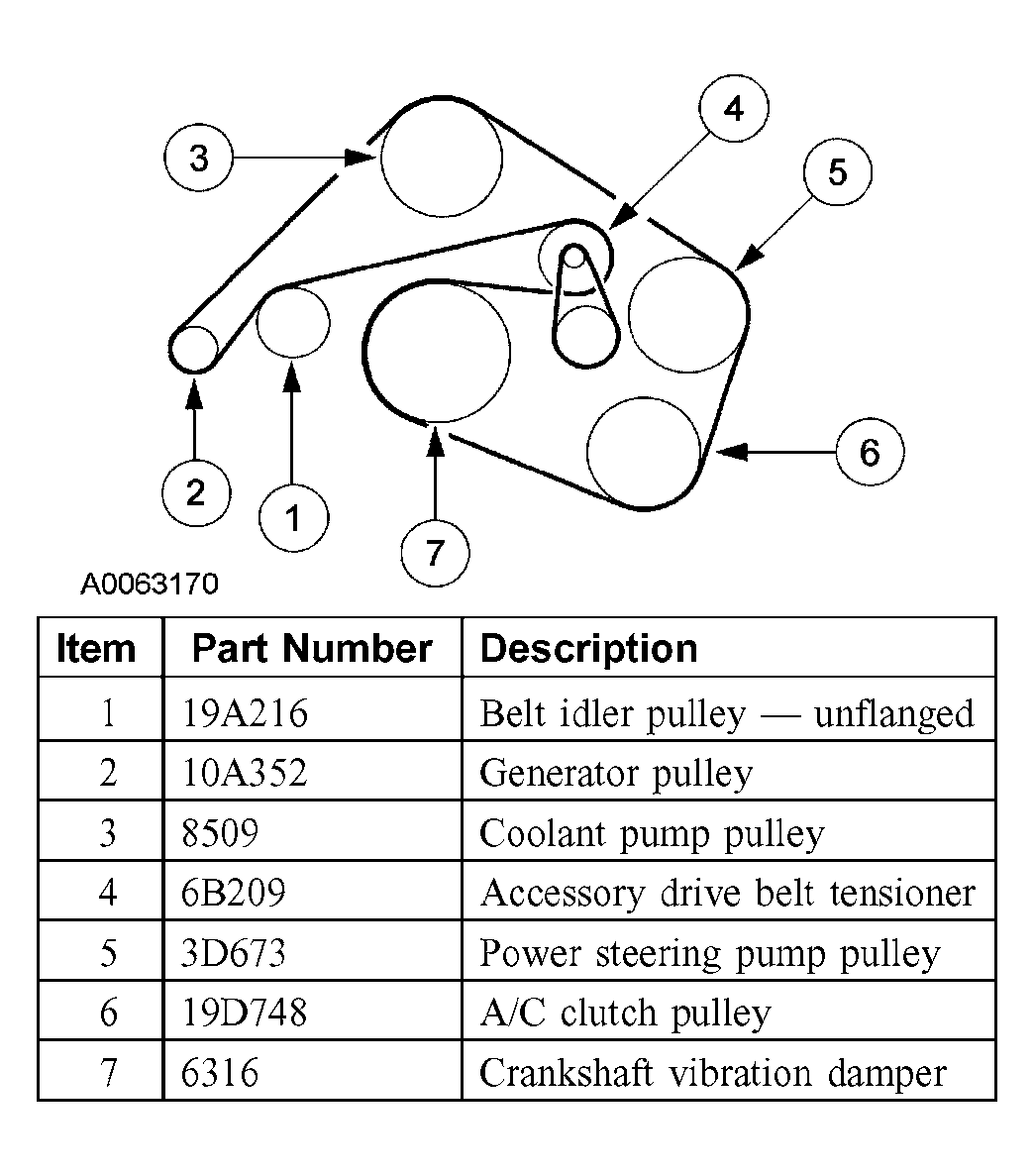

Fig 2: Identifying Accessory Drive Belt Routing & Component Locations - 3.9L

Courtesy of FORD MOTOR CO.

The accessory drive:

has a single serpentine belt (6 ribs).
has an automatic tensioner.
is not adjustable.
