Liftgate Lock Switch

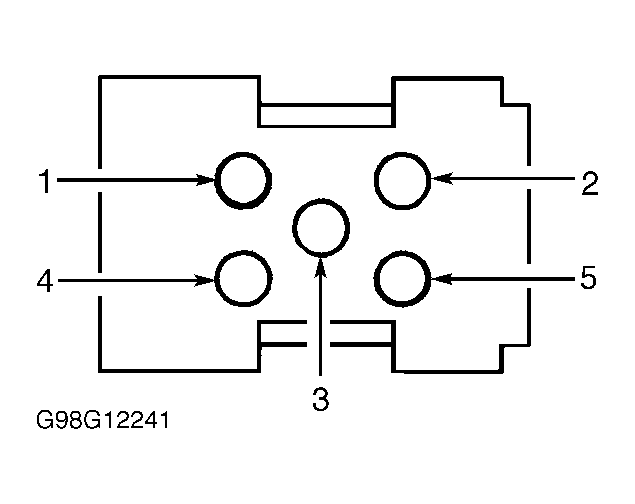

- Remove liftgate lock switch. With switch in neutral position, continuity should not exist between terminal No. 3 and terminals No. 2 and 4. See Fig 1
.
- Press switch to unlock position. Continuity should exist between terminals No. 3 and 4. Press switch to lock position. Continuity should exist between terminals No. 3 and 2. If continuity is not as specified, replace switch.
Courtesy of FORD MOTOR CO.
